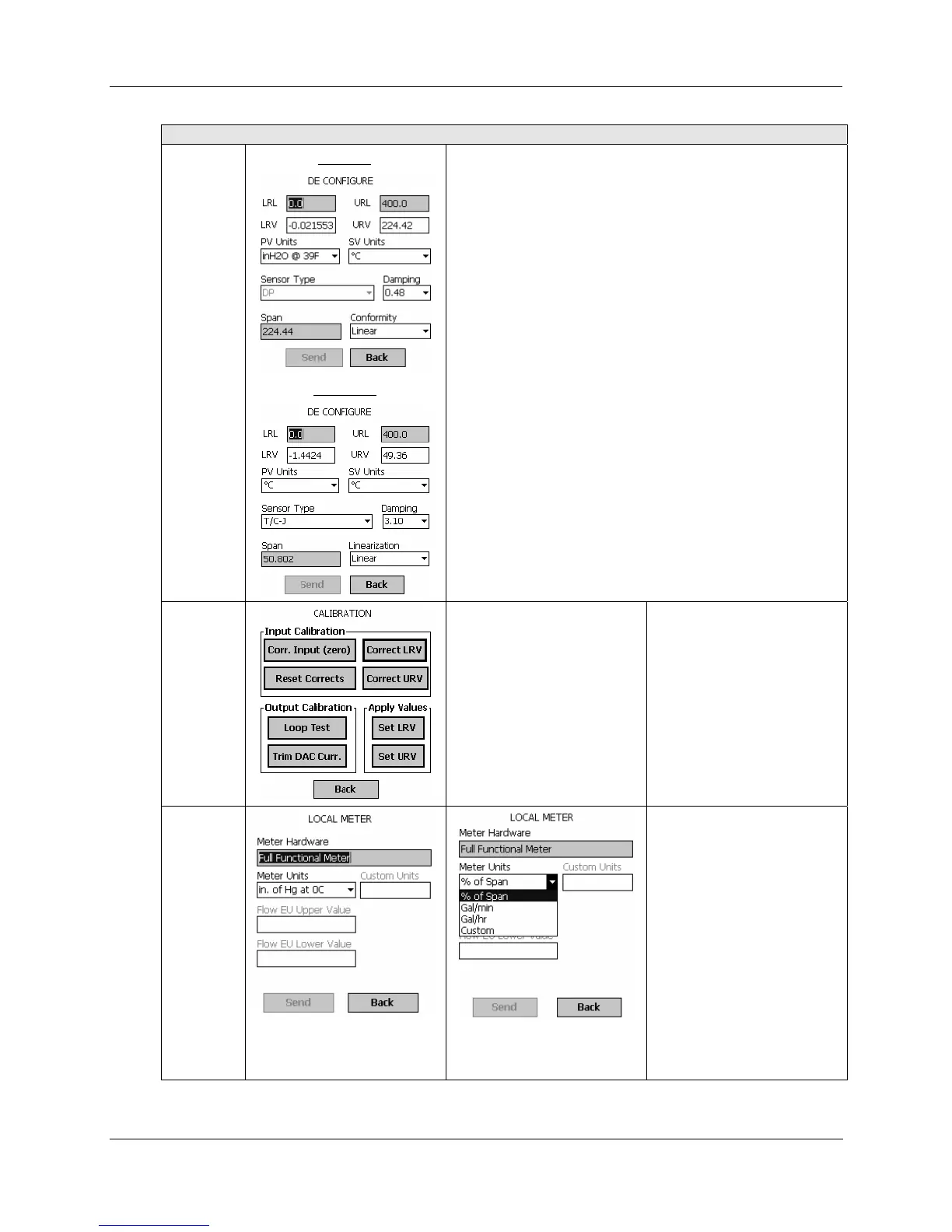

DE Main Menu Procedures
DE
Configure
ST 3000
STT 3000
LRL (r): Lower Range Limit
URL (r): Upper Range Limit
LRV (r/w): Lower Range Value
URV (r/w): Upper Range Value
PV Units (r/w)
Selection of scaling value (default: inches of H2O@39)
SV Units (r/w)
Selection of scaling value (
0
C/
0
F)
Sensor Type (r)
Sensor Type associated with the transmitter
Damping (r/w)
Selection of level of digital noise reduction
Span (r)
Process Range (URL - LRL)
Conformity (r/w) (ST 3000)
Selection of conformity to input form: Linear or Square
Root
Linearization (r/w) (STT 3000)
Selection of conformity to input form: Linear or Non Linear
Calibra-
tion
For more information, refer
to:
Table 4, Table 5, Table 6,
Table 7.
Local
Meter
(ST 3000)
Meter Hardware (r)
Type designation of meter
associated with the transmitter
Meter Units (r/w)
Selection EUs for Local Meter
Custom Units (r/w)
(Refer to Transmitter User
Manual).
Flow EU Upper Value (r/w)
Selection of standard
Engineering Units for Flow
Upper Value
Flow EU Lower Value (r/w)
Selection of standard
Engineering Units for Flow
Lower Value
