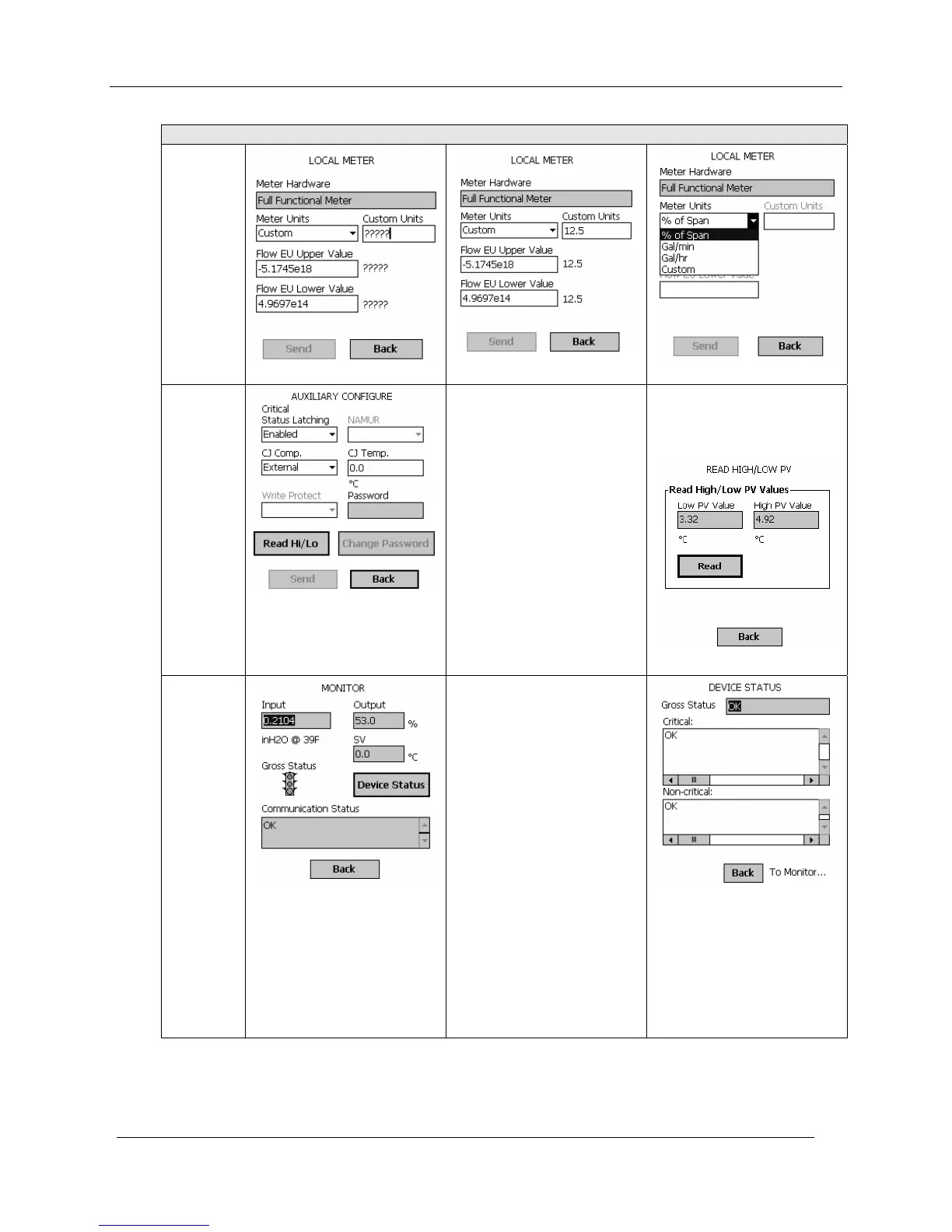

DE Main Menu Procedures
Local
Meter
(ST 3000
example)
Auxiliary
Configure
Critical Status Latching
Select
Enabled or Disabled.
NAMUR
Select
Enabled or Disabled.
(Disable requires that Write
Protect is set to Not Write
Protected.)
CJ Temp.
Enter External Cold
Junction Temperature.
Select the
Read HI/LO
button to call up the READ
HIGH/LOW PV display.
Select the Read button to
display the lowest and the
highest PV values since last
read.
Monitor
Input (r)
Sensor input in Engineering
Units
Output (r)
Loop output as percent of
Span
SV (r)
Secondary Variable in
Engineering Units
Gross Status (r)
Gross transmitter status.
Select the
Device Status
button to call up the Device
Status display.
Communication Status (r)
For status information, refer
to the section on
Messages and
Diagnostic Codes.
To Next Page
