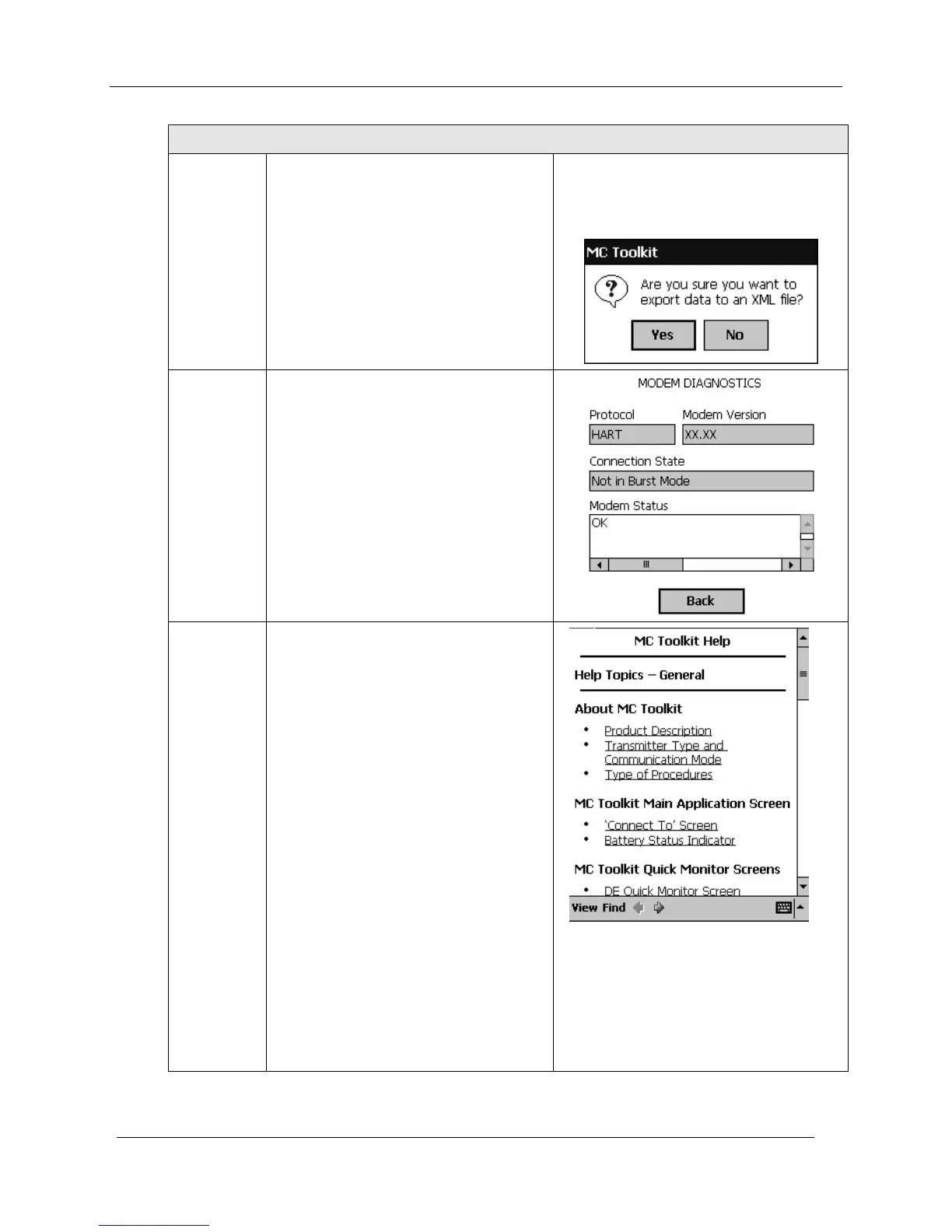

Menu Bar, Menu Selections, and HELP display
File
Exit
Closes the MC Toolkit application
Export
Enables export of database parameters in
XML format, which can be used by other
programs such as DocuMint. (Refer to the
Reference Data section for more
information.)
The Export selection is not available until a
transmitter database has been uploaded.
To export an XML file, select File, Export.
A popup message appears.
Select the
OK button.
Modem
Diagnostics
In DE Mode, the Connection State may be:
• Analog
• 4 Byte DE
• 6 Byte DE
In HART mode, the Connection State may
be:
• Burst Mode
• Not in Burst Mode
HELP
display
The Help display is available whenever the
MC Toolkit is active.
It includes three groups of topics, each of
Selectable from the Help Menu
- General
- DE
- HART
Each group includes a list of topics. Each
topic (in blue, underlined letters) is
selectable to provide direct access to the
Help information.
Dragging the cursor in the scrollbar at right
enables viewing of all three groups of
topics. At the bottom of each group, a
Back to Top selection moves the display to
the beginning of the first group of topics.
Note:
The View, Find and (arrows) selections at
the bottom of the screen apply to the Help
that applies to the Pocket PC, and not to
the MC Toolkit application.
