Output Calibration - Loop Test
Example

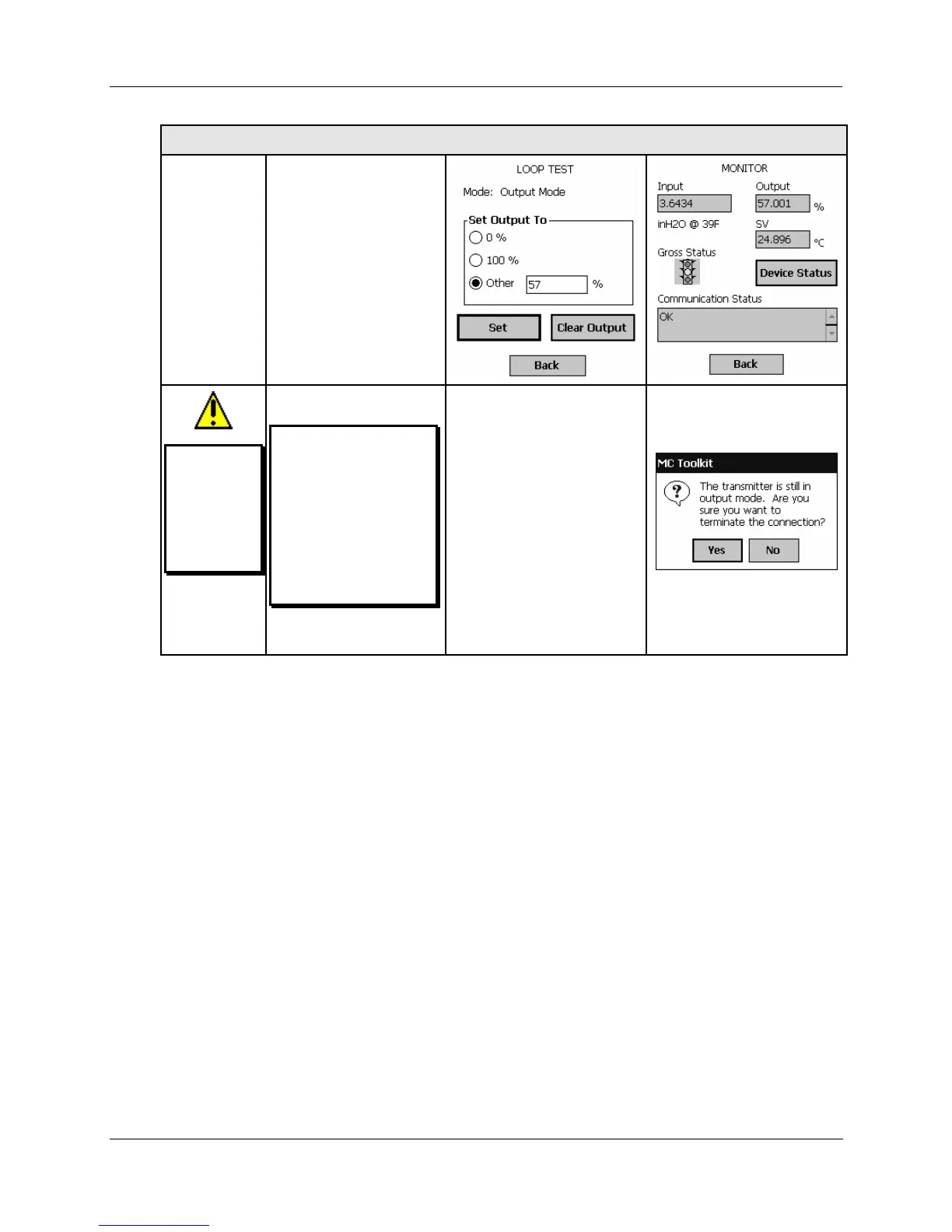

The displays at right
illustrate a
Set Output
selection and setting of
Other, at 57 %.
!!
Unintended
exit in
Output
Mode?
!!
Caution:
If Yes was selected as
above in the
CONFIRM! popup
message, it is possible
to exit MC Toolkit
application while the
Output is fixed at
constant current.
This message at right
appears if the user performs
an operation on the MC
Toolkit that will terminate
the connection to the
transmitter while the
transmitter is in output mode.
Select
Yes button only if
constant-current Output with
the MC Toolkit is intended.
Otherwise, select the No
button, go back to the LOOP
TEST display, and select the
Clear Output button.
