Mini-AT User Guide

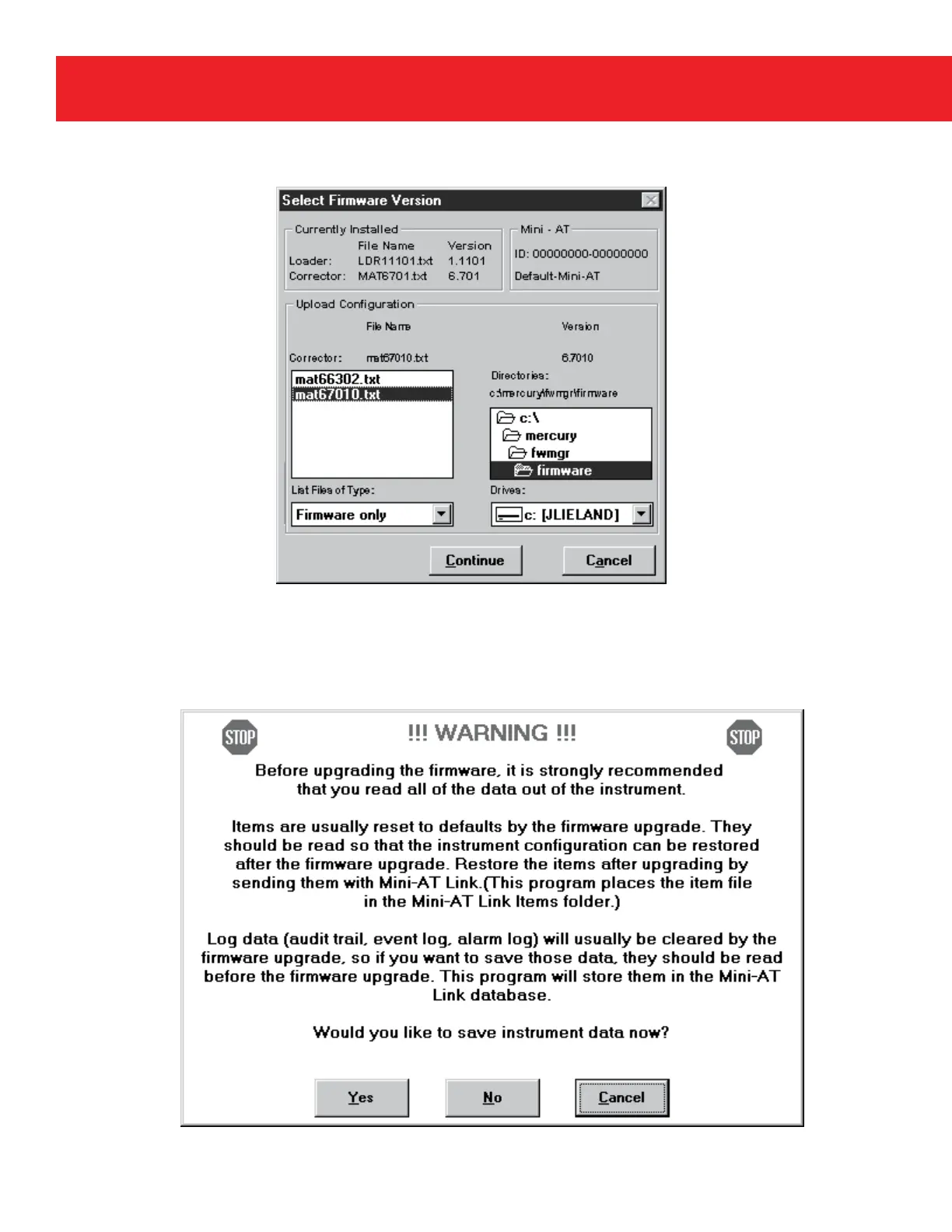

5. After clicking the gas pump button, a dialogue box will appear. Select the Mini-AT firmare file

(matXXXXX.txt) and click continue.

6. At this point the software will display a warning about downloading instrument data. Since this has

already been completed in the pre-firmware upgrade procedure, press no to continue
