Page 83

Mini-AT User Guide

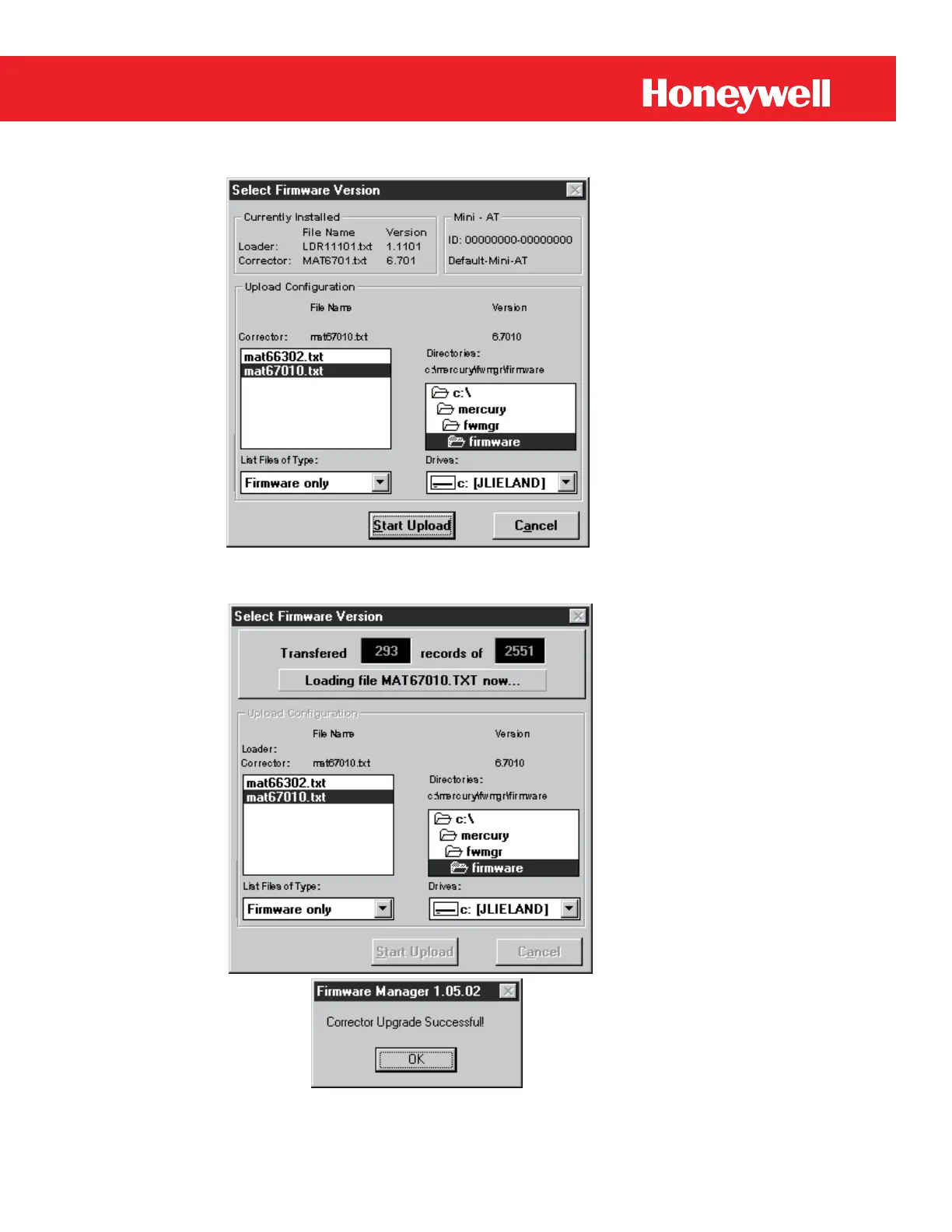

7. The dialogue box from step 5 will reappear. Click Start Upload to begin sending the Mini-AT firmware.

8. Firmware Manager will display the progress of the upload. When the upload is completed a new

dialogue box will appear stating that the upgrade was successful. Click OK.

9. The firmware upgrade is now completed. Exit Firmware Manager and disconnect the Mini-AT from the

computer
