Page 85

Mini-AT User Guide

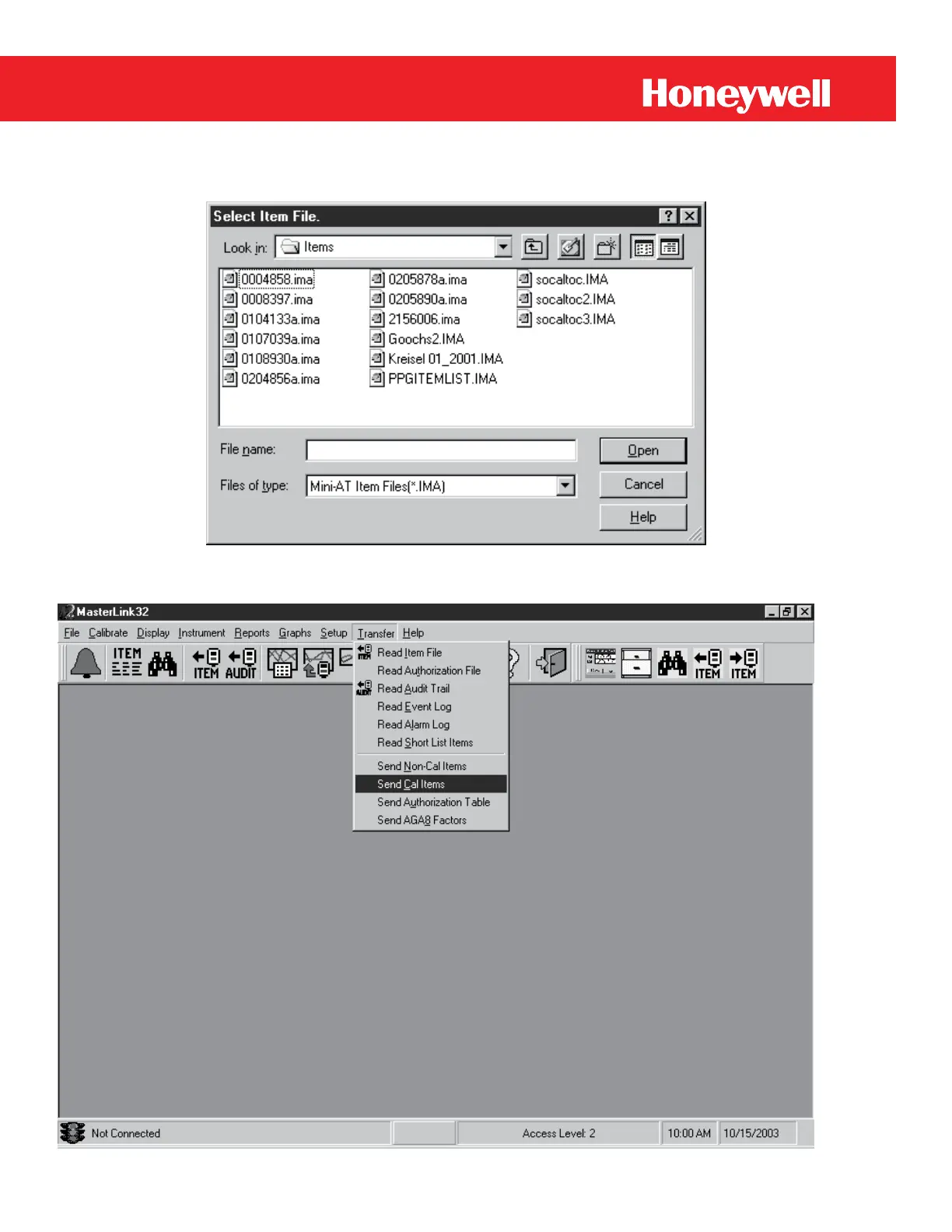

5. Select the Item File that was saved in step 4 of the Pre-Firmware upgrade procedure from the list and

click the Open button.

6. From the Transfer Menu, select Send Cal Items
