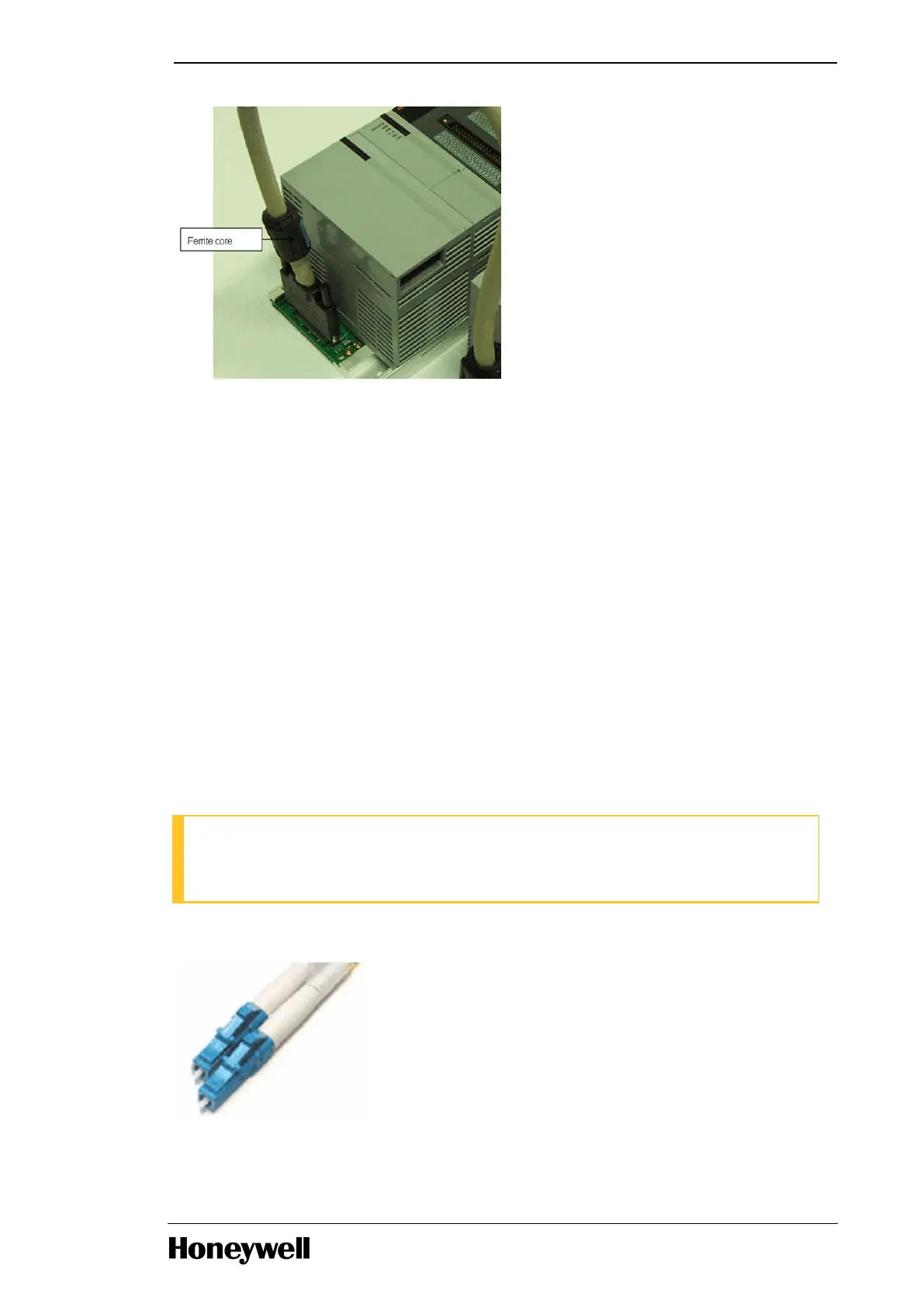

Figure 6: Expansion cable connection for ML200 IEC
Cables for ML200R
Expansion cable connection
Expansion cables are Ethernet cables used for connecting the main bases and expansion bases. The
expansion cables are classified into the following two categories.
l Optical cable
l Ethernet cable
The electrical and optical cables are provided for use in accordance with the network type.
Optical cables
The communication between the optical cables is through Multi Mode Fiber (MMF) 50/65 um LC type
cable. In ML200R systems, cables are used based on the installation site, indoor type, outdoor type, or
conduit type.
ATTENTION
2MLC-F201 (Multimode Fiber Optic Cable, LC connector, 2.0m) is the synchronization cable part
number used for ML200R.
The following figure illustrates the MMF (LC Type) optical cable.
Figure 7: MMF (LC Type) optical cable
- 15 -
Chapter 1 - Masterlogic components
