Chapter 1 - Masterlogic components
PLC types Part number Description
ML200-IEC 2MLB-E04A Expansion base 4
slot
2MLB-E06A Expansion base 6
slot
2MLB-E08A Expansion base 8
slot
2MLB-E12A Expansion base 12
slot

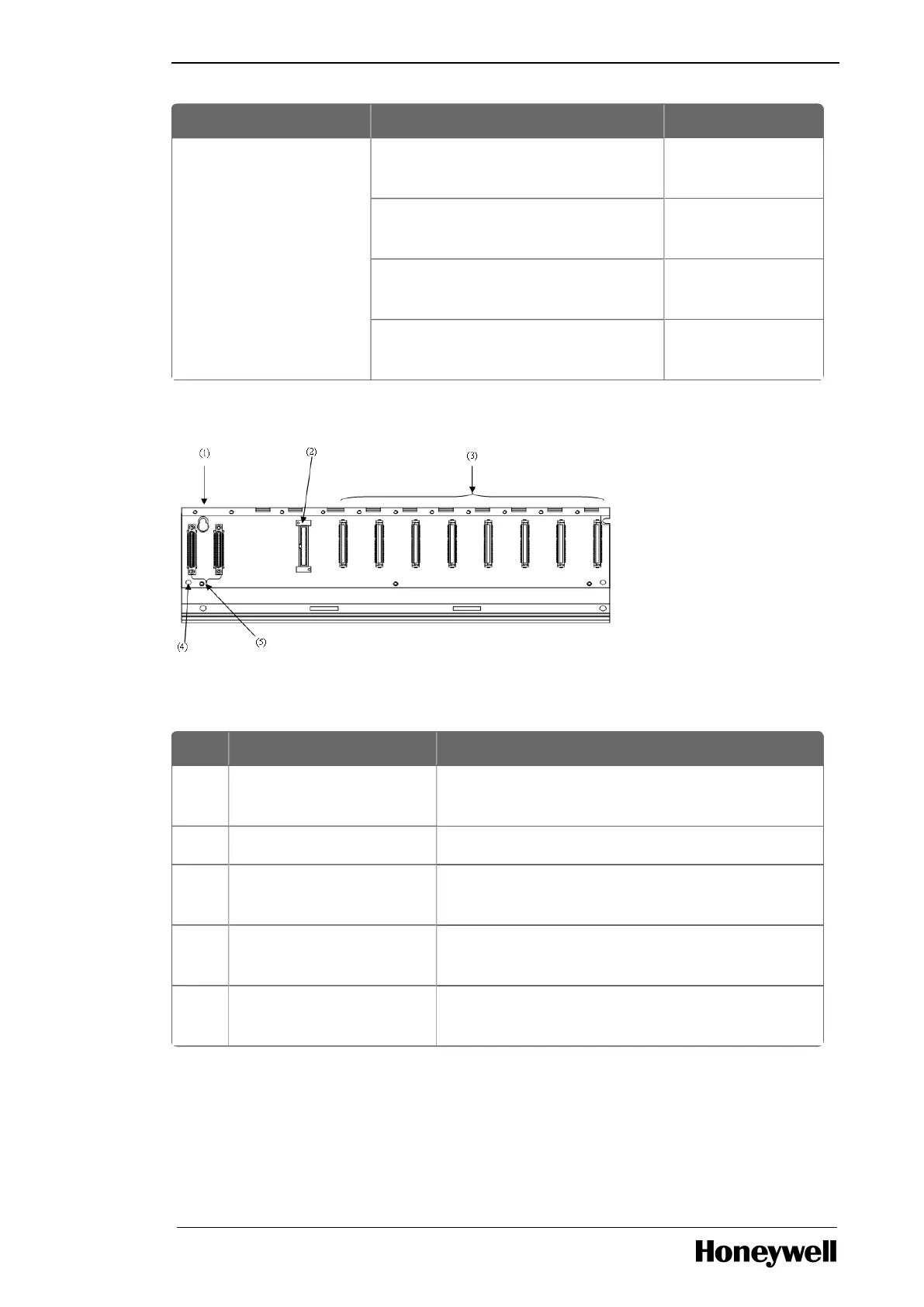

The following image illustrates the expansion base of ML200-IEC.
The following table lists the details of the expansion base.
Table 12: Expansion base of ML200-IEC
Index Part Function
1 Base attached guide hole For attaching the main base to the panel in the
control panel.
2 Power module connector I/O module built-in connector.
3 Expansion driver module
connector
I/O module built-in connector
4 FG terminal The ground terminal connected to the shielded
pattern of PCB board.
5 Expansion cable
connector
Connects the main base (CPU base) with the
expansion base.
ML200R Main base
The main base of ML200R consists of the power module, CPU module, and the communication module
(only Ethernet module is allowed in the main base).
The following table lists the types of bases for ML200R.
