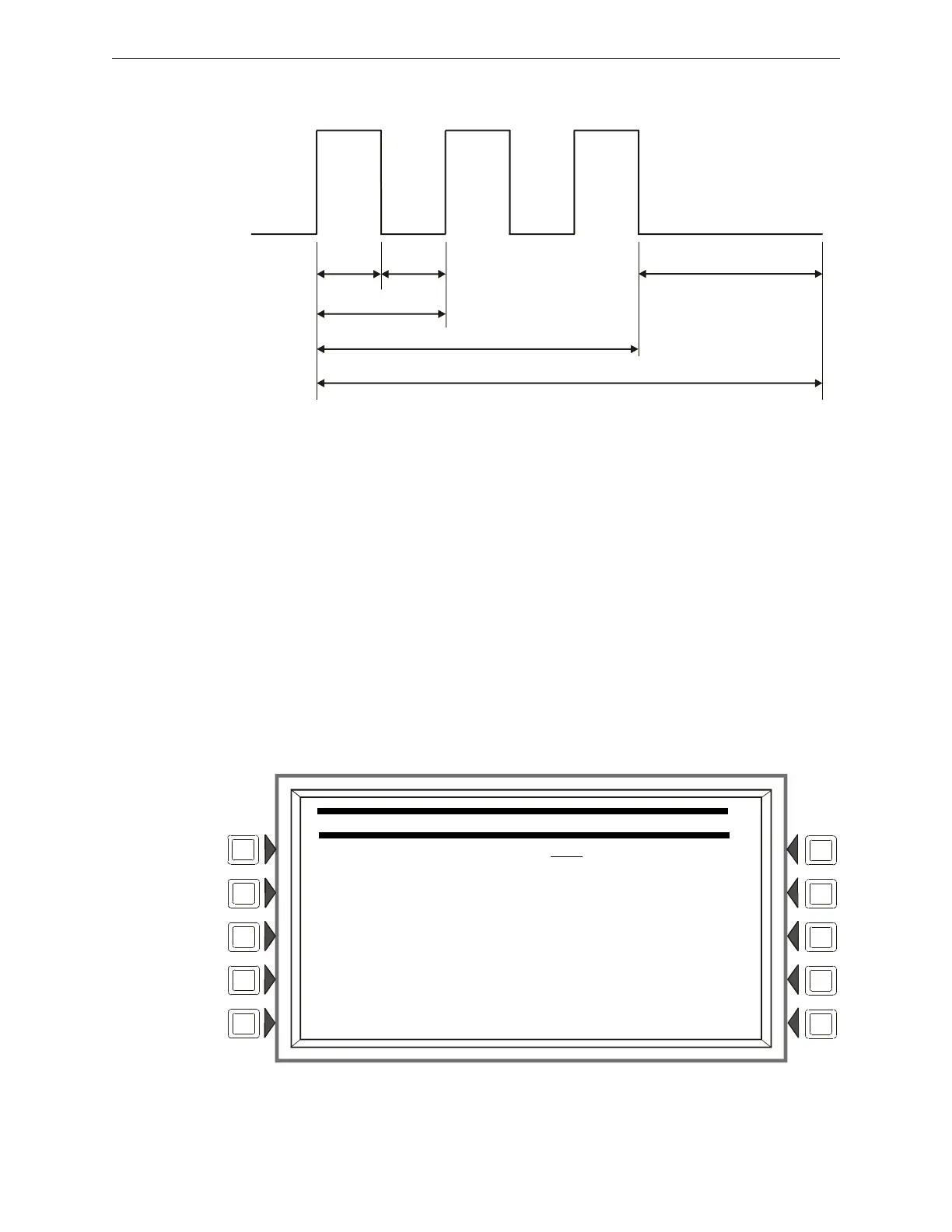

Figure 3.11 Custom Tone Example
PULSE ON TIME:The Pulse On time is the amount of time that the tone will be ON within a
Period. Press this softkey to enter the amount of time in second and fraction of a second increments.
PERIOD:A Period is the length of time designated for a pulse, including Pulse On time and Pulse
Off time. The pulse off time is designated by the amount of time left in a Period after the Pulse On
time has expired. Press this softkey to enter the amount of time in second and fraction of a second
increments.
NUMBER OF PULSES:Press this softkey to enter the number of pulses that will occur before
the Tone Off Period.
TONE OFF PERIOD:The Tone Off Period is the amount of time that the tone will be silent
before running the pulse pattern again. Press this softkey to enter the amount of time in seconds and
fraction of a second increments.
For more information on programming the Intelligent Sounder Base, refer to “Detector Point” on
page 44.
Pressing the MO
RE
soft key on this Panel Settings screen will display this screen:
Figure 3.12 Panel Settings (4) Screen
Pulse On
Time
Pulse Off
Time
Period
Repeat Tone Pattern
Tone Off Period
Number of Pulses
PANEL SETTINGS
SILENCEABLE WATERFLOW: NO
ACCEPT
BACK
To Next Page
