ID61/62 Series Panel - Operating Manual
Operator Actions at Panel
12997-458-000-8, Issue 8
January 2010
4 Operator Actions at Panel
4.1 Introduction
Operator actions at the panel require the correct pushbutton
and access code entry. The LCD and the user pushbuttons
located on the panel allow the following actions to be carried out:
a. Mute the panel buzzer.
b. Extend Delays.
c. Panel reset.
d. End Delays / Evacuate (terminate delays to outputs,
if delay is active and activate sounders).
e. Silence and resound the alarms.
f. Menu navigation and alphanumeric key entry.
g. Operator-controlled tests.
h. Disable and enable of zones, outputs or delays.
i. Set the clock and date.
j. View: log, devices, faults, input events, disablements,
alarm count, voltages and versions.
Note: Maintenance alarm count is also available but this
feature is available at access level 3 only.
All actions are access-controlled either through turning
the panel keyswitch to the right, or by means of a Level 2
access code (see Section 4.1.3 Access Codes).
4.1.1 Liquid Crystal Display
The Liquid Crystal Display (LCD) provides 80 characters of
alphanumeric information on a 2 line display. The LCD is
backlit to assist viewing under dim ambient light conditions.
System Normal Display
When in a quiescent state the LCD shows the ‘Status:
NORMAL’ message on line 1 and the day, date and time
on line 2. The message will be different if the Site Name
menu was edited during commissioning.
The user options are accessed via a menu structure,
which in turn is accessed from the ‘Status: NORMAL’
message (see opposite).
If the ‘Status: NORMAL’ message is not present, press the
‘
4
’ button repeatedly until it is displayed (this terminates
access Level 2). Alternatively, turn the keyswitch to the right
and and then back to normal to exit all user menus. Menus
will revert to the panel status display automatically five
minutes after the last key press. Press the ‘ ’ button to
toggle between the menus and top level display.
Note: To exit the Level 3 Commissioning menu press the
numeric ‘
7
’ button.

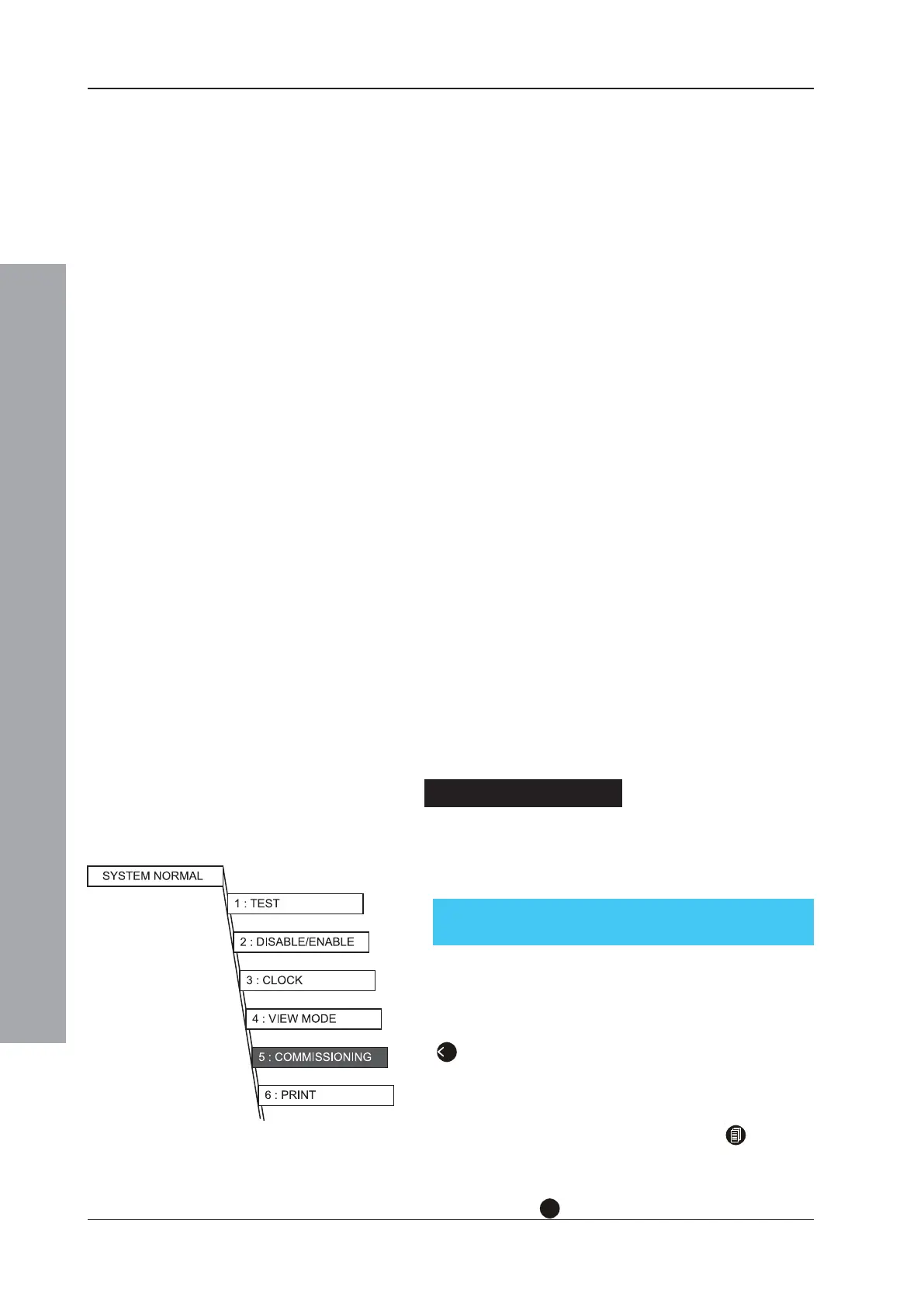

Status: NORMAL
Sat 05/01/2002 00:00:00
* The Commissioning Menu is ONLY
available with a Level 3 passcode.
To Next Page
