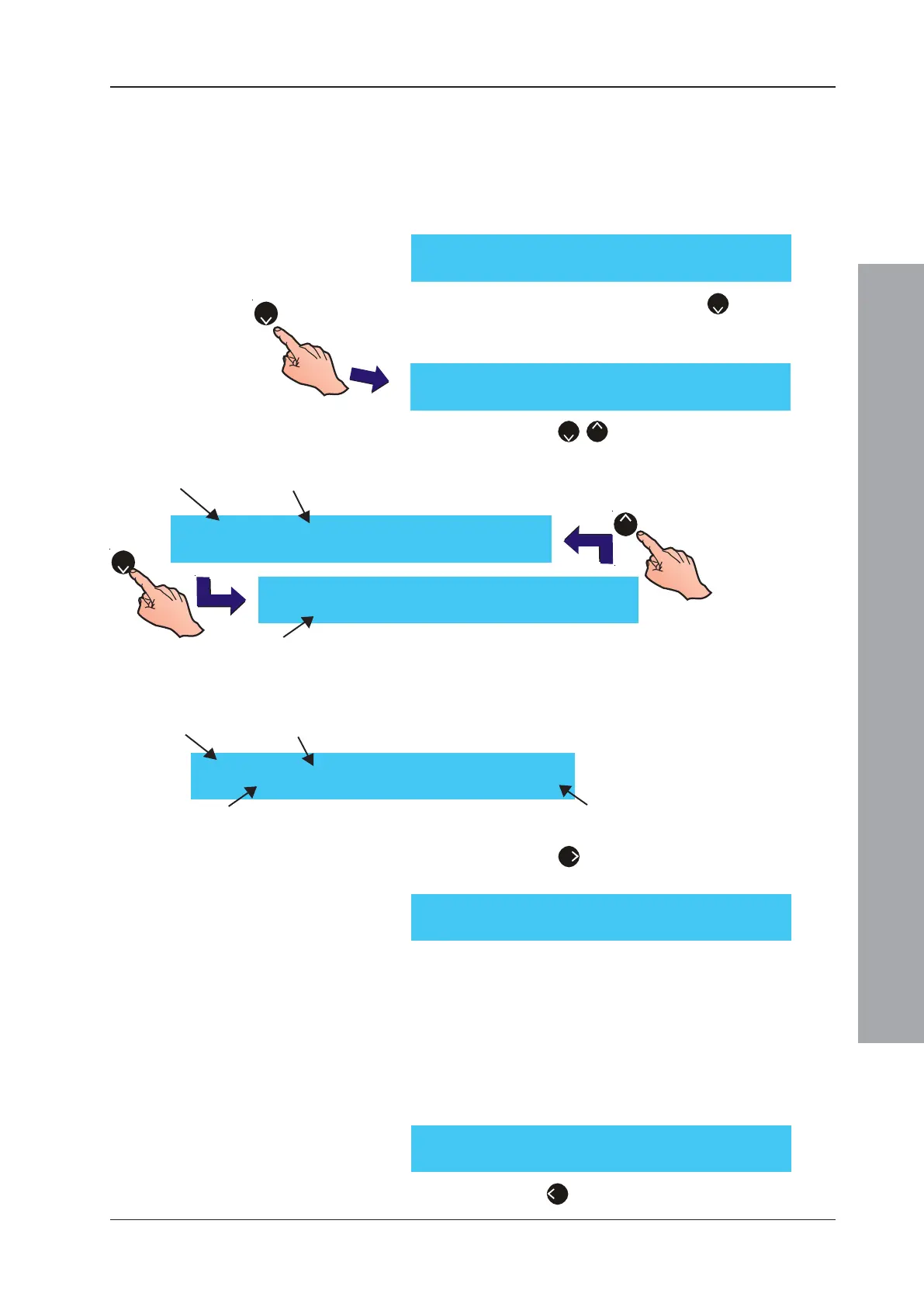

ID61/62 Series Panel - Operating Manual
Operator Actions at Panel
39 997-458-000-8, Issue 8
January 2010
4.12.2 Devices - User Option
The Devices User Option allows the user to observe all
loop devices in turn. Device data is displayed on the bottom
line of the display and the format depends on the
configured protocol (CLIP or OPAL) of the selected device.
To view Devices, from the View Mode menu:
1 On the numeric keypad, press the ‘
2
button to select
the Devices display.The LCD displays the last-viewed
sensor address:
2 Press the ‘
2
/
8
’ buttons to scroll through device
address entries until the desired sensor is displayed.
If the loop has mixed protocol devices the display will
show the approriate device information.
[U0 View] 1:Log 2:Devices 3:Faults
4:Input Events 5:Disabled ¦ : More
2
[U0 Sensor nn - OPT] >: Next ¦ : More
Level 050% -
050% -
050%
[U0 Sensor nn - AAA] >: Next ¦ : More
PW1:286 2:283 3:285 4:1003 5:0292 <:Exit
CLIP protocol
OPAL protocol
Device
Type
Device
Address
[U0 Sensor 02 - OPT] >: Next ¦ : More
PW1:286 2:283 3:285 4:1003 5:0292 <:Exit
[U0 Sensor 03 - OPT] >: Next ¦ : More
PW1:286 2:283 3:285 4:1003 5:0292 <:Exit
Device
Type
Device
Address
Pulse Width Time Periods
2
8
3 Press the
6
’ button to view additional device
information. For CLIP protocol devices:
Note: Three percentage values are displayed [this is the
device’s alarm level status, e.g. 100% (default) is
equivalent to alarm]. The value on the left is the current
alarm status level. The other percentage values are
historical; the previous two alarm status percentages
are displayed, the one on the left being the more recent.
For OPAL protocol devices, the device data displayed is
for reference purposes only:
4 Press the ‘
4
button to return to the View Mode menu.
[U0 Sensor 04 - OPT] >: Next ¦ : More
Value: 049, 026, 000, 000, 000, 000; 224
Sub-address values (up to 6 values)
Isolator state value
[U0 Sensor 04 - OPT] >: Next ¦ : More
SN.: DA1BFCCB Imp: 31 Rev: 026 Avg: 025, 027
