ID61/62 Series Panel - Operating Manual
Panel Controls & Indicators
3 997-458-000-8, Issue 8
January 2010
2 Panel Controls and Indicators

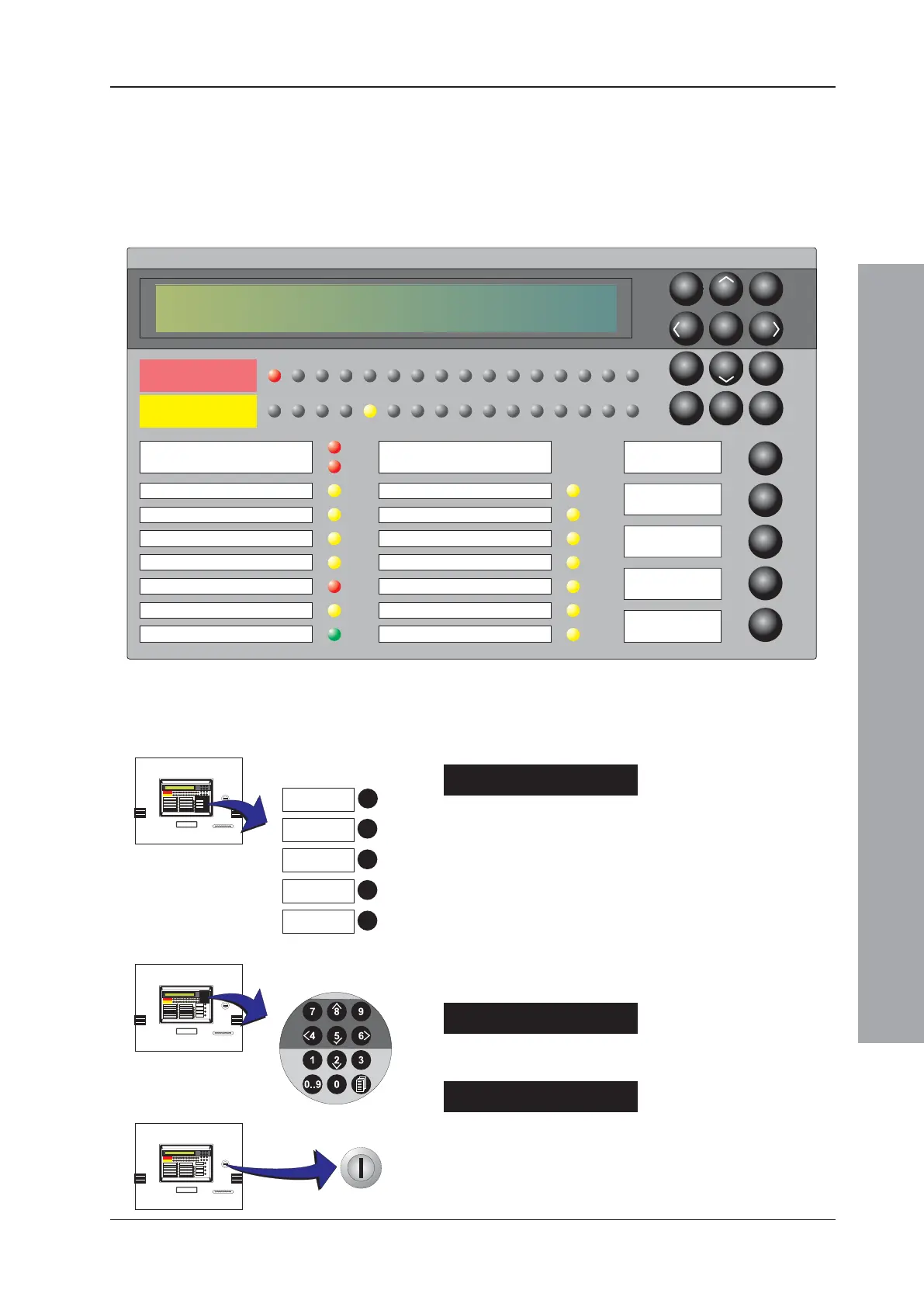

The panel’s controls and indicators are used to operate
the overall system and display the panel status. The panel
has four function pushbuttons, twelve numeric/cursor
keys and thirty-two zonal LED indicators, two ‘FIRE’
indicators and fourteen system status LED indicators.
2.1 Controls
The pushbuttons are listed below, together with
references to the relevant sections of the manual:
Function Pushbuttons
• MUTE BUZZER (Section 4.2)
• RESET - (Section 4.3)
• END DELAY/EVACUATE
1
- (Section 4.4)
• SILENCE/RESOUND - (Section 4.5).
• END DELAYS/EVACUATE - (Section 4.6).
1
Also configurable as Transmission Device (TD)
Enable/Disable.
Numeric/Cursor Keys
• Numeric/Cursor keys - (Section 4.6).
Keyswitch
Turn the keyswitch to enable level 2 access. The
keyswitch provides an alternative to entering the level 2
access code via the numeric keys. See Section 4.1.3
and Section 4.1.4.
EXTEND DELAY
END DELAY/
EVACUATE
SILENCE/
RESOUND
RESET
MUTE BUZZER
FIRE
RESET
MUTE BUZZER
MUTE BUZZER
EXTEND DELAY
EXTEND DELAY
SILENCE/
RESOUND
SILENCE/
RESOUND
END DELAY/
EVACUATE
END DELAY/
EVACUATE
46
00..9
31
1
7
5
[
98
4
2
2
3
4
56
7
8910
11 12
13
14
15 16
ZONE FIRE
ZONE FIRE
ZONE FAULT/
DISABLE/TEST
ZONE FAULT/
DISABLE/TEST
DISABLEMENT FAULT
TEST
POWER SUPPLY FAULT
EARTH FAULT
POWER
PLANT ALARM
FIRE OUTPUT ACTIVE
DELAYS ACTIVE
FIRE OUTPUT: FAULT / DISABLED
FIRE CONTROL O/P: FAULT / DISABLED
PRE- ALARM
SYSTEM FAULT
SOUNDER: FAULT / DISABLED
