ID61/62 Series Panel - Operating Manual
Operator Actions at Panel
21 997-458-000-8, Issue 8
January 2010

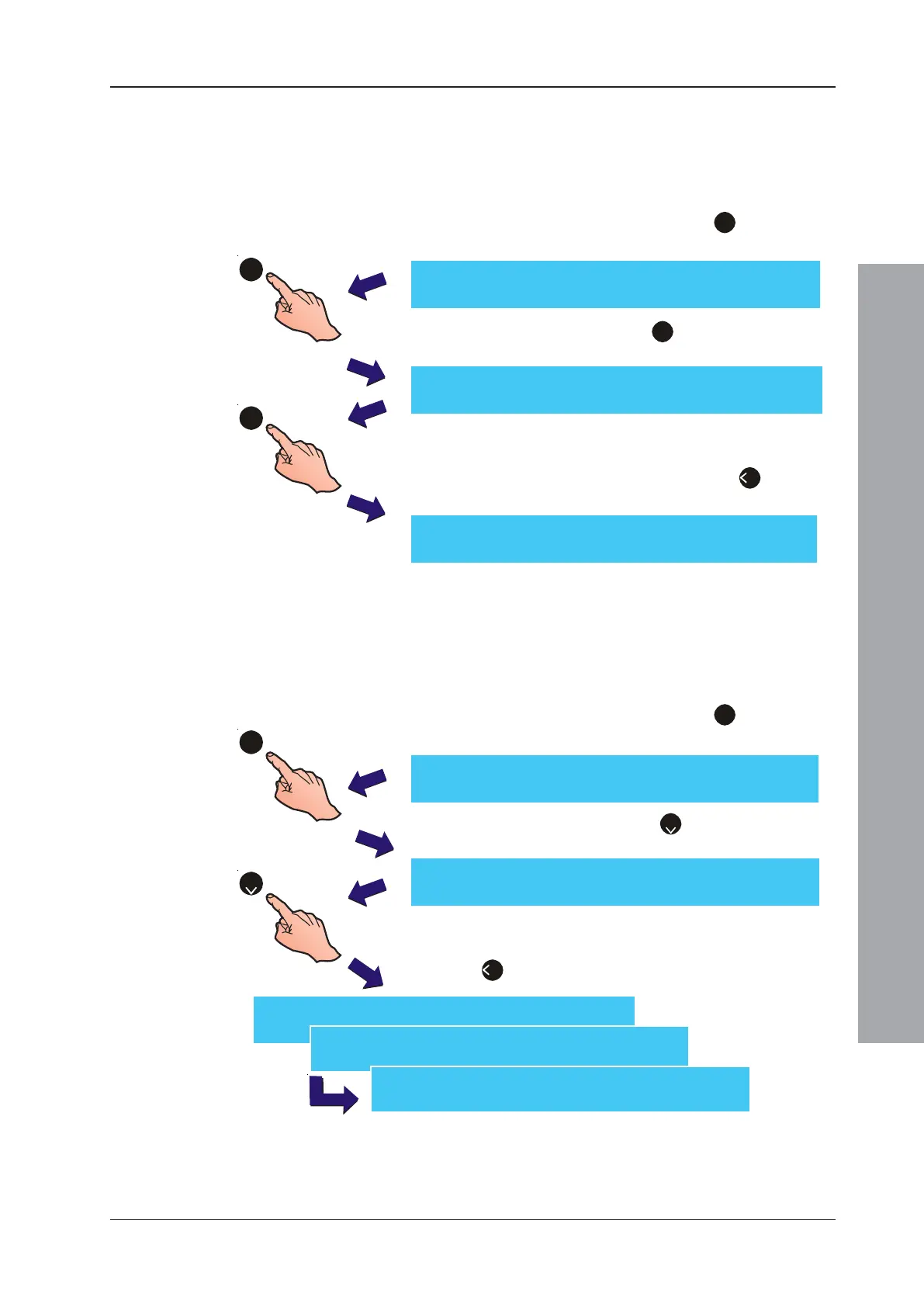

4.9.1 LEDs - User Option
This option, selected from the Test menu, illuminates each
LED in turn. To test the panel LEDs, enter access Level 2
and follow the procedure below:
1 Using the numeric keypad, press ‘
1
’ to display the
TEST menu.
2 To test LEDs, press the ‘
1
’ button on the numeric
keypad.
3 Each of the panel LEDs illuminates in turn while the
LCD flashes the message shown below. When all
LEDs have been tested, press the ‘
4
’ button to
cancel and return to the Test menu.
4.9.2 LCD - User Option
The LCD Option, selected from the Test menu, tests the
LCD by displaying each upper case character in turn. To
test the LCD, enter access Level 2 and follow the
procedure below.
1 Using the numeric keypad, press ‘
1
’ to display the
TEST menu.
2 To test the LCD, press the ‘
2
’ button on the numeric
keypad.
3 Each character is then displayed in turn on the LCD.
When all characters have been displayed, press the
‘
4
’ button to cancel and return to the Test Menu.
[U0] 1 : Test 2 : Disable/Enable 3 : Clock
4 : View Mode 5 : Commission 6:Print
[U0 Test] 1:LEDs 2:LCD 3:Zones
4:Auto High Test 5:Outputs ¦ : More
TESTING LEDs ! ! !
[U0] 1:Test 2:Disable/Enable 3:Clock
4: View Mode 5:Commission 6:Print
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
ZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZ
ZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZ
[U0 Test] 1:LEDs 2:LCD 3:Zones
4:Auto High Test 5:Outputs ¦ : More
1
1
1
2
