ID61/62 Series Panel - Operating Manual
Operator Actions at Panel
22997-458-000-8, Issue 8
January 2010
[STOP WALK TEST] Select Zone: 01
: Stop ¦ : Change <:Exit

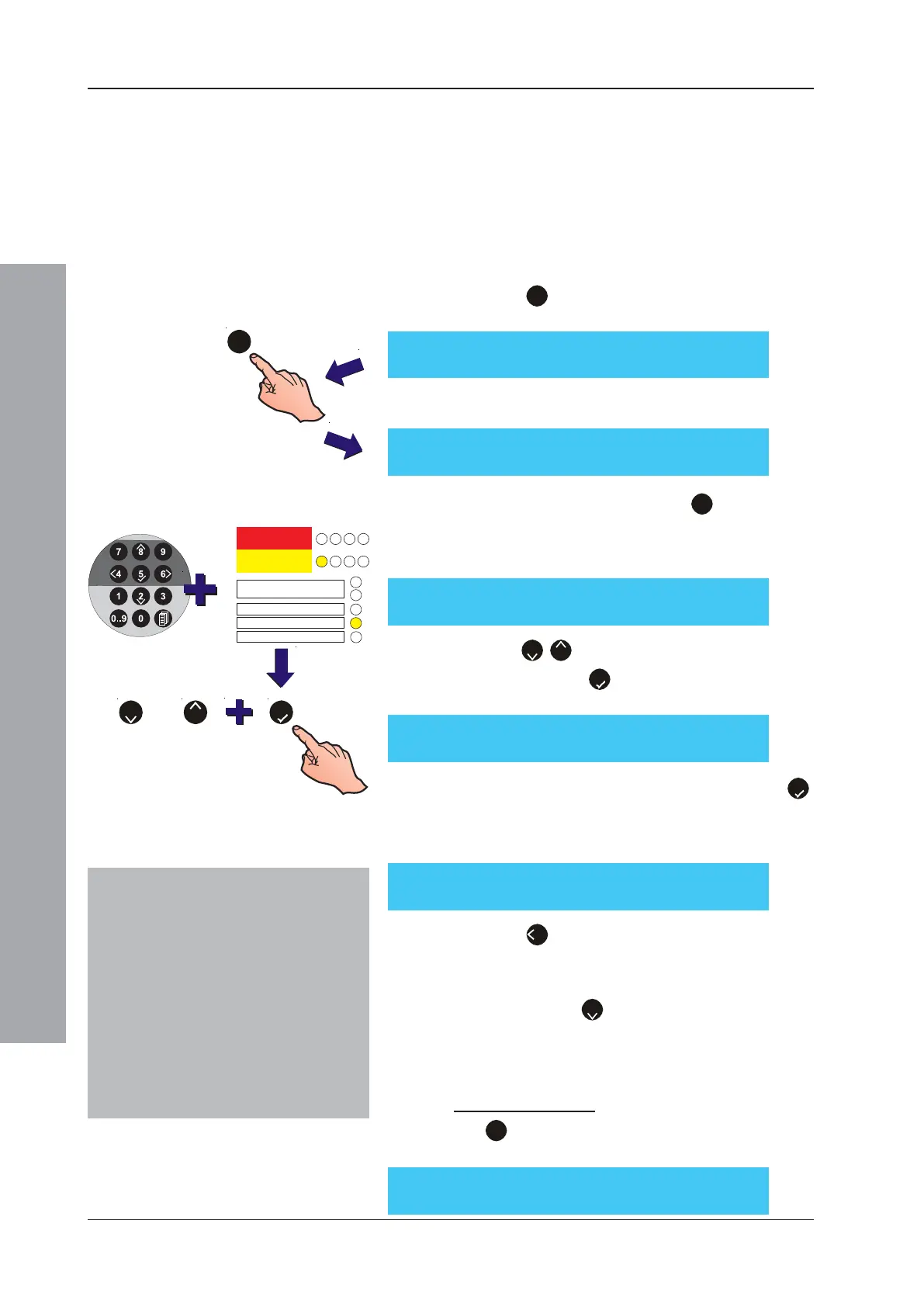

4.9.3 Zones - User Option
The Test Zones option, selected from the Test Menu, allows
the user to perform a walk test on one zone at a time.
During the walk test the TEST and relevant FAULT/
DISABLE/TEST LEDs are illuminated, indicating that the
system and zone is in TEST mode. To perform a walk
test, at the TEST menu:
1 Press the ‘
3
’ button on the numeric keypad to select
the walk test procedure.
2 The LCD displays the Test Zones menu. Select either
the Ring Sounders or No Sounders walk test:
a. Using the numeric keypad, press ‘
1
’ to display the
Ring Sounders menu as shown below. In this mode
the sounders will ring for a few seconds when a device
is tested, then reset automatically.
i Use the ‘
2
/
8
’ buttons to select the zone to be
tested. Press the ‘
5
’ button to confirm the zone
number.
ii The LCD prompts for confirmation. Press the ‘
5
’
button to start the walk test for this zone. Repeat
steps i and ii for any further zones to be tested. Test
the devices (see Checking the Devices overleaf).
iii Press the ‘
4
’ button to exit the Ring Sounders menu
and return to the Zones menu.
b. To walk test devices on a specific zone without activating
the sounder, press ‘
2
’ on the numeric keypad to select
the ‘No Sounders’ option. The walk test procedure is
otherwise the same as given above for ‘Ring Sounders’.
3 To end the walk test:
a. For a specified zone: at the Test Zones menu, press
the ‘
3
’ button on the numeric keypad to select the
View/Stop Test menu:
[U0 Test] 1:LEDs 2:LCD 3:Zones
4:Auto High Test 5:Outputs ¦ : More
[U0 Zones] 1:Ring Sounders
2:No Sounders 3:View/Stop Test ¦ : More
[WALK TEST (Sounders)] Select Zone: 01
: Start ¦ : Change <:Exit
[WALK TEST (Sounders)] Select Zone: 01
Press to Confirm <:Cancel
[WALK TEST (Sounders)] Select Zone: 01
: Start ¦ : Change <:Exit
3
52 8
or
1
ZONE FIRE
ZONE FAULT
DISABLE/TEST
TEST
DELAYS ACTIVE
FIRE
2
3
4
DISABLEMENT
OPAL Protocol Devices in Walk Test
When a zone with OPAL protocol enabled
is put into Walk Test, the OPAL device
LEDs flash green with a longer* ON
duration to indicate that the device is
ready for testing.
When a device is tested the green LED will
show red momentarily, with an end to the
green prolonged flash to indicate that
testing is now finished for that device.
* Approximately 1 sec. ON/1 sec OFF.
