ID61/62 Series Panel - Operating Manual
Operator Actions at Panel
30997-458-000-8, Issue 8
January 2010
1
ZONE FIRE
ZONE FAULT
DISABLE/TEST
TEST
FIRE
2
3
4
DISABLEMENT
DELAYS ACTIVE

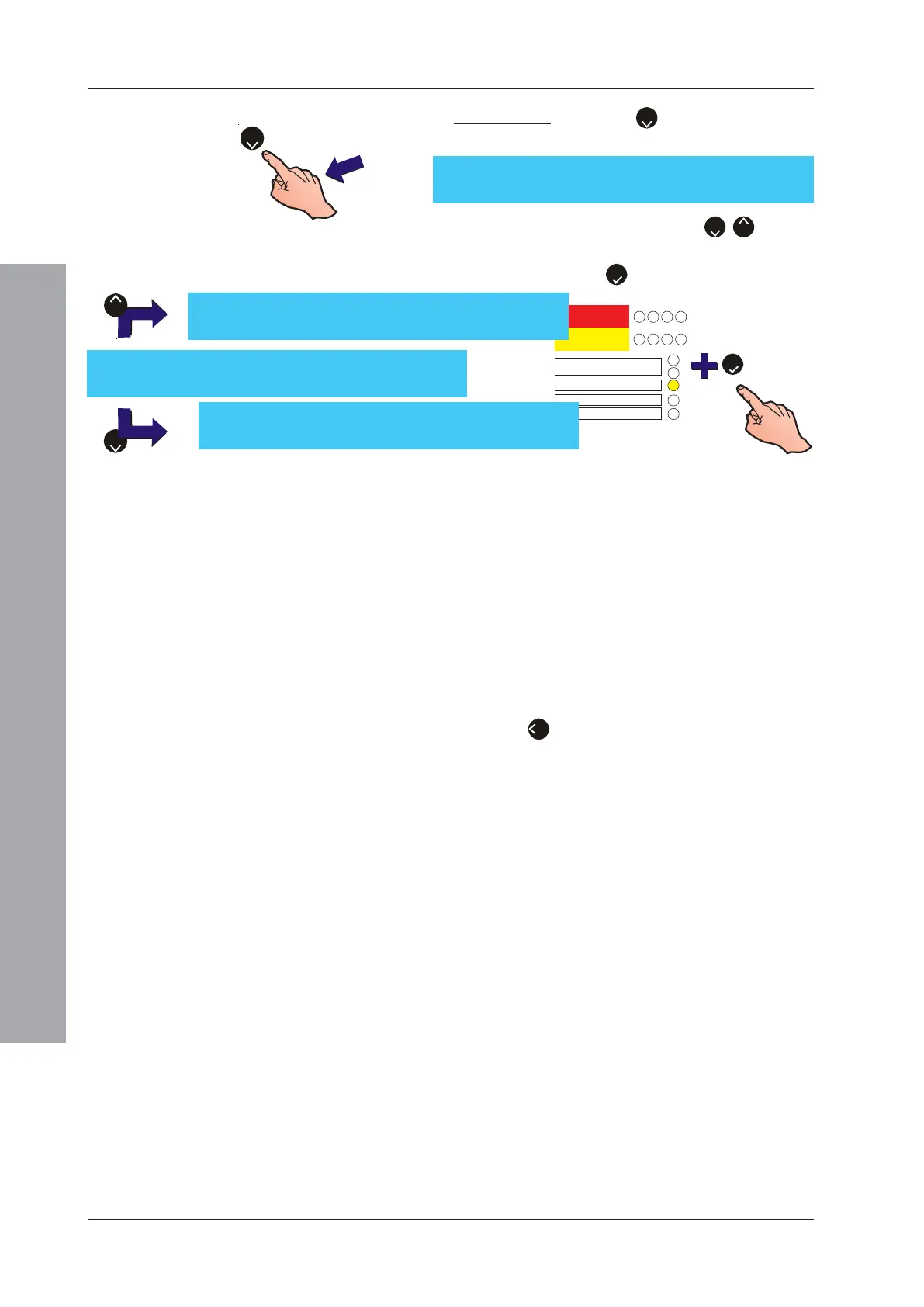

b. A Partial Zone - Press the ‘
2
’ button on the numeric
keypad to select the Device in Zone option:
5 To select individual devices use the ‘
2
/
8
’ buttons
to display the required device(s). Confirm selection of
each by pressing the ‘
5
’ button.
Repeat until all devices are in the required state (either
disabled or enabled). The DISABLEMENT LED
remains illuminated if one or more devices are
disabled. It is extinguished when all devices have been
enabled.
The relevant ZONE FAULT/DISABLE/TEST LED is
illuminated when ALL devices in that zone have been
disabled (the ZONE FAULT/DISABLE/TEST LED is
NOT lit with partial disablements). Disablement of ALL
devices is confirmed by the ‘Fully Disabled’ LCD
message.
6 Press the ‘
4
’ button to return to the Disable/Enable
menu.
[Disable/Enable] Zone 0 1 Part disabled
1:Full Zone 2:Device in Zone ¦ : More
[Enable] Zone 0 1 - Enable S02 ?
Press to confirm <:Cancel
[Disable] Zone 0 1 - Disable S01 ?
Press to confirm <:Cancel
[Disable] Zone 0 1 - Disable M99 ?
Press to confirm <:Cancel
5
2
8
2
To Next Page
