RAEGuard 3 User Manual
10

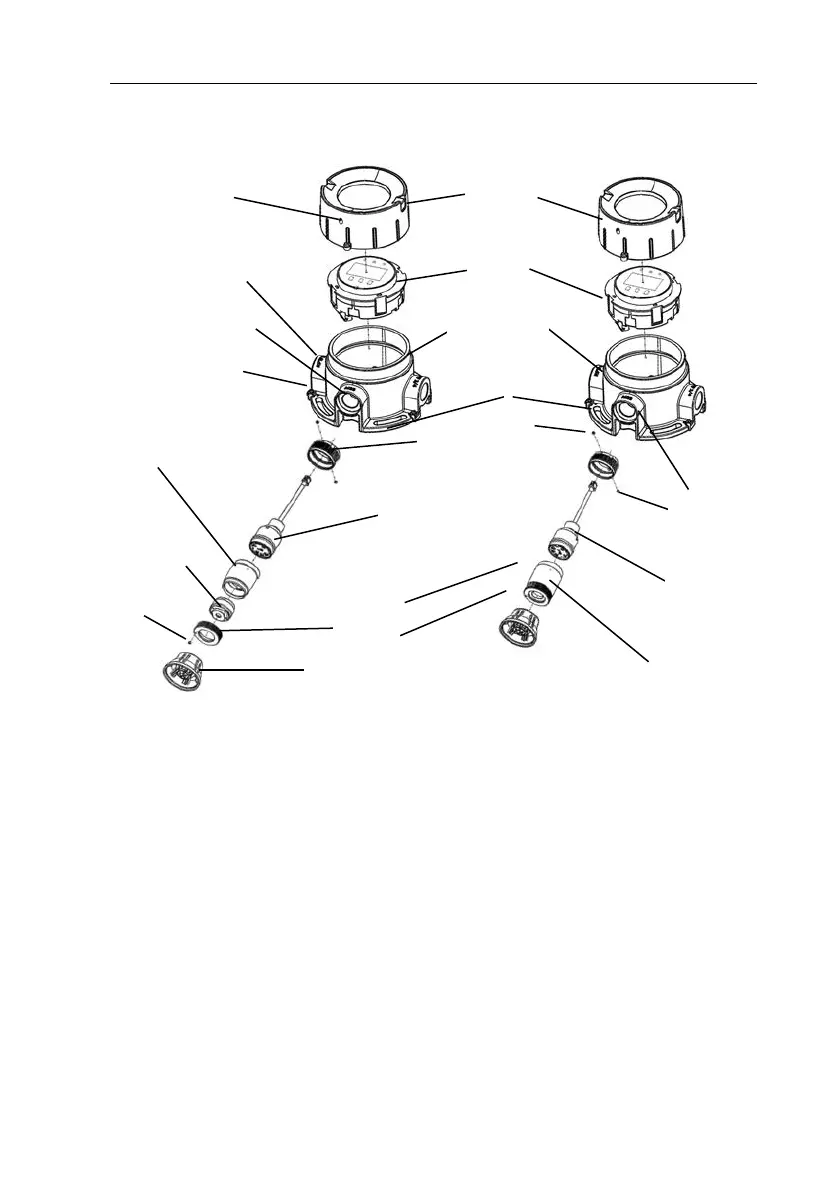

RAEGuard 3 comprises of the main parts as shown below.
Cover
PCB
Module
Enclosure
Safety
Barrier/Socket
Retainer
Waterproof
Cap
Sensor
Toxic and
Oxygen Safety
Barrier
Sensor Cartridge
Integral
Mounting Plate
3/4'’ NPT F Cable
Entry/Conduit(x 2)
M25 Sensor Entry
External Earth
Point(x 2)
Locking Grub
Screw(x 3)
Locking
Grub
Screw
Locking Grub Screw
Toxic and
Oxygen sensor
replacement
Sensor
Retainer
LEL/NDIR
Sensor
Replacement
