2.1 Transmitter
The RAEGuard 3 is with a universal transmitter, which can be connected to toxic
and oxygen, catalytic and infrared(IR) sensor modules, and supports the remoted
installation between sensor and transmitter separately.
RAEGuard 3 transmitter uses three magnetic wand switches to enable non-
intrusive operation. Two cable entries/conduits can be connected to cables and
other explosion-proof devices, such as SP07 visible and sound alarm, and
remained entry is dedicated connecting sensor module.
Enclosure housing of the transmitter comes with an integral mounting plate, which
can be directly installed on various sites, additional parts not required.

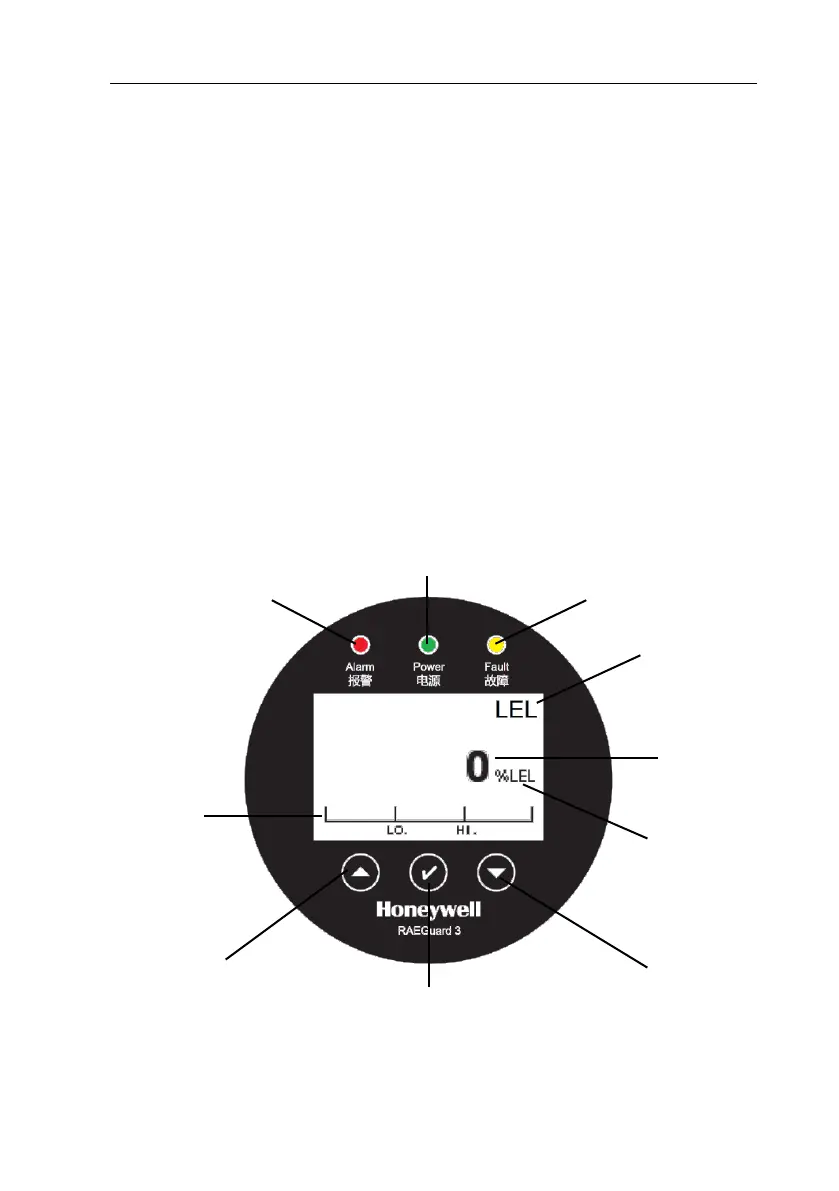

RAEGuard 3 transmitter are friendly and concise user interface:
Graphic LCD display can display real-time gas reading, bar graph, gas name,
alarm and fault, warning code and graphic icon, etc.
Three high-recognized LED show the status of the transmitter.
3 magnetic switches “▲” “√” “▼”，to activate them, hold the magnetic
end of wand up to the glass window and slowly swipe the magnet directly
over the circle area.
