3.3 Remote Sensor Mounting
The remotely mounted sensor should be mounted using a suitable junction box
or approved electrical conduit scheme.
To remotely mount the sensor parts, the procedure is following.
1. Select a suitably certified junction box.

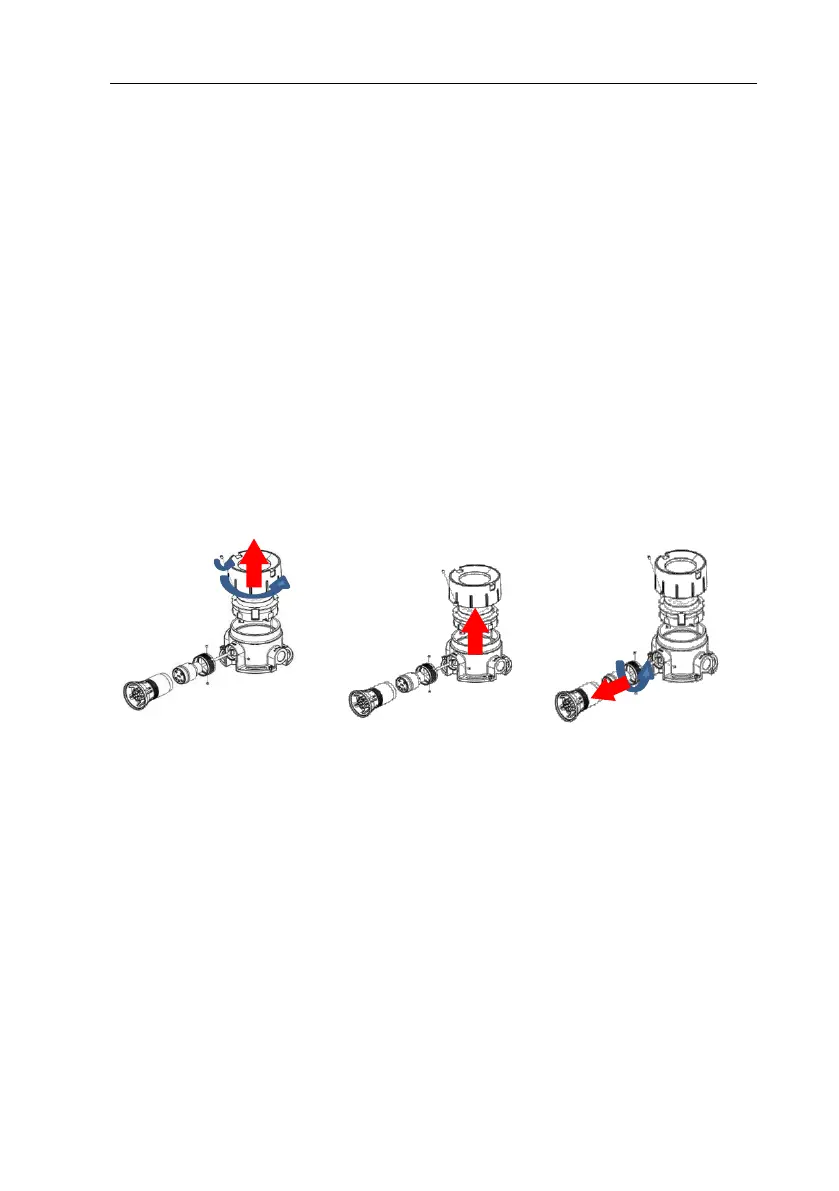

2. Separate the whole sensor portion from the transmitter (See the below
diagram process)
3. Fit the whole sensor to the junction box.
4. Connect the junction box to the transmitter using suitable cable and cable
glands.
5. For wiring, see "Electrical Connection" section.
Note
：
The maximum cable length between the remotely mounted sensor
and the RAEGuard 3 transmitter is 10 meters.
