FireLite SLC Wiring Manual — P/N 51309:P4 9/17/2014 17
Shield Wire Termination Wiring Requirements
2.3 Shield Wire Termination

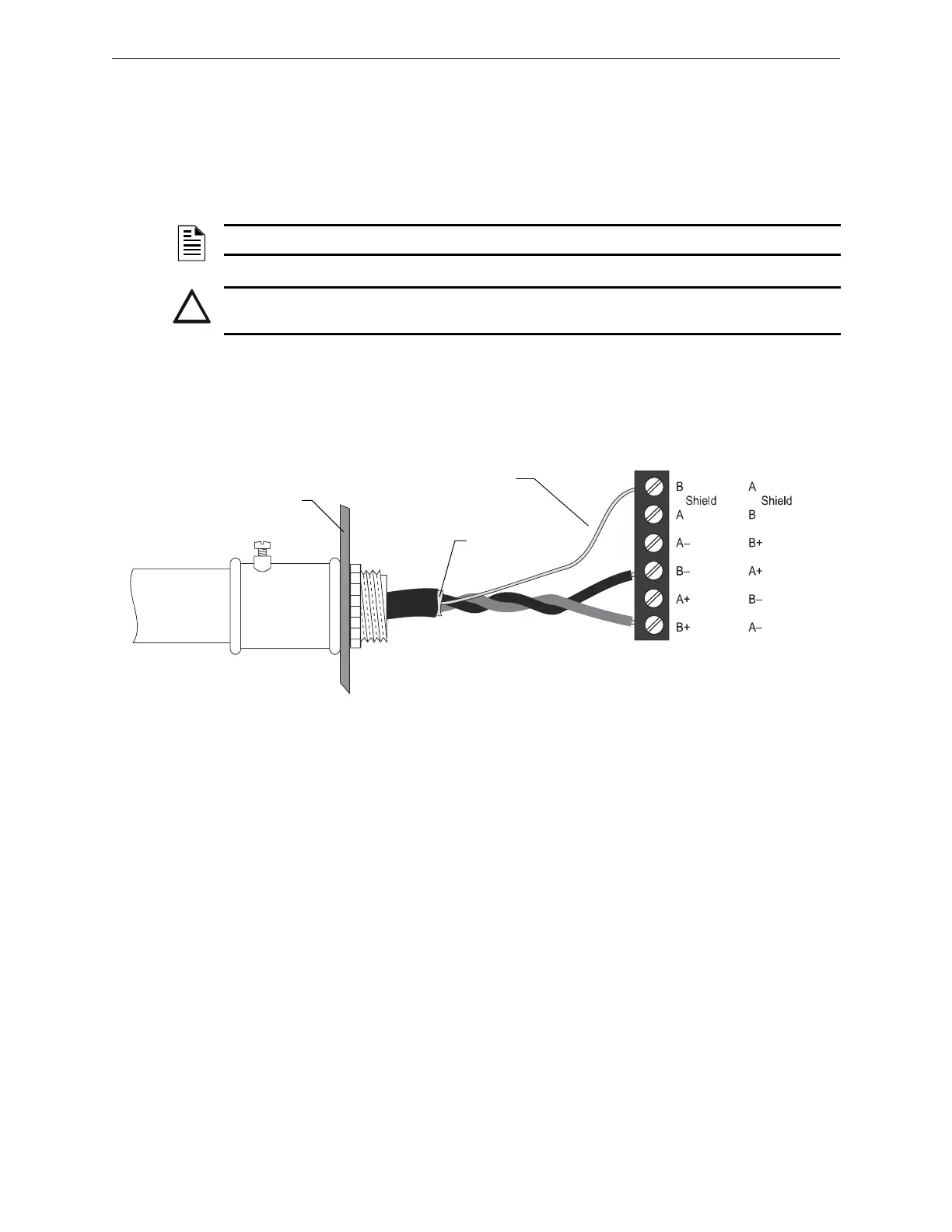

The drawing below shows the method of proper termination of the shield.
Connect the metal conduit to the cabinet by using the proper connector. Feed the shielded wire
through the conduit, into the control box. The shield drain wire must be connected to the “shield”
terminal on the SLC terminal block.
NOTE: Use of good wiring practice consistent with local electrical codes is expected.
!
CAUTION: DO NOT LET THE SHIELD DRAIN WIRE OR THE SHIELD FOIL TOUCH THE
SYSTEM CABINET OR BE CONNECTED TO EARTH GROUND AT ANY POINT.
Cabinet
SLC-shieldterm.wmf
Shield Drain Wire
Shield Foil
Conduit
MS-9600
MS-9600LS
MS-9600UDLS
MS-9200UD
MS-9200UDLS
MS-9050UD
MS-9200
Figure 2.5 Shield Termination
