Control Panel Terminal Blocks Wiring Requirements
2.4.3 MS-9200UDLS (Software Version 3.0)
TB1 provides two types of 24 VDC power; Nonresettable and Resettable, jumper selectable by JP4
and JP6.
TB10 provides connections for the SLC wiring.
198 addresses are available per loop (99 detectors and 99 modules).
2.4.4 MS-9200UD & MS-9200UDLS (Versions 1 and 2)
TB1 provides two types of 24 VDC power; Nonresettable and Resettable.
TB10 provides connections for the SLC wiring.
198 addresses are available per loop (99 detectors and 99 modules).
TB10
SLC
TB1
SLC Out
Connections for
wire shield
Resettable Power-
jumper selectable by JP6
Nonresettable Power- jumper selectable by JP4
SLC-9200udtb.wmf
SLC Return

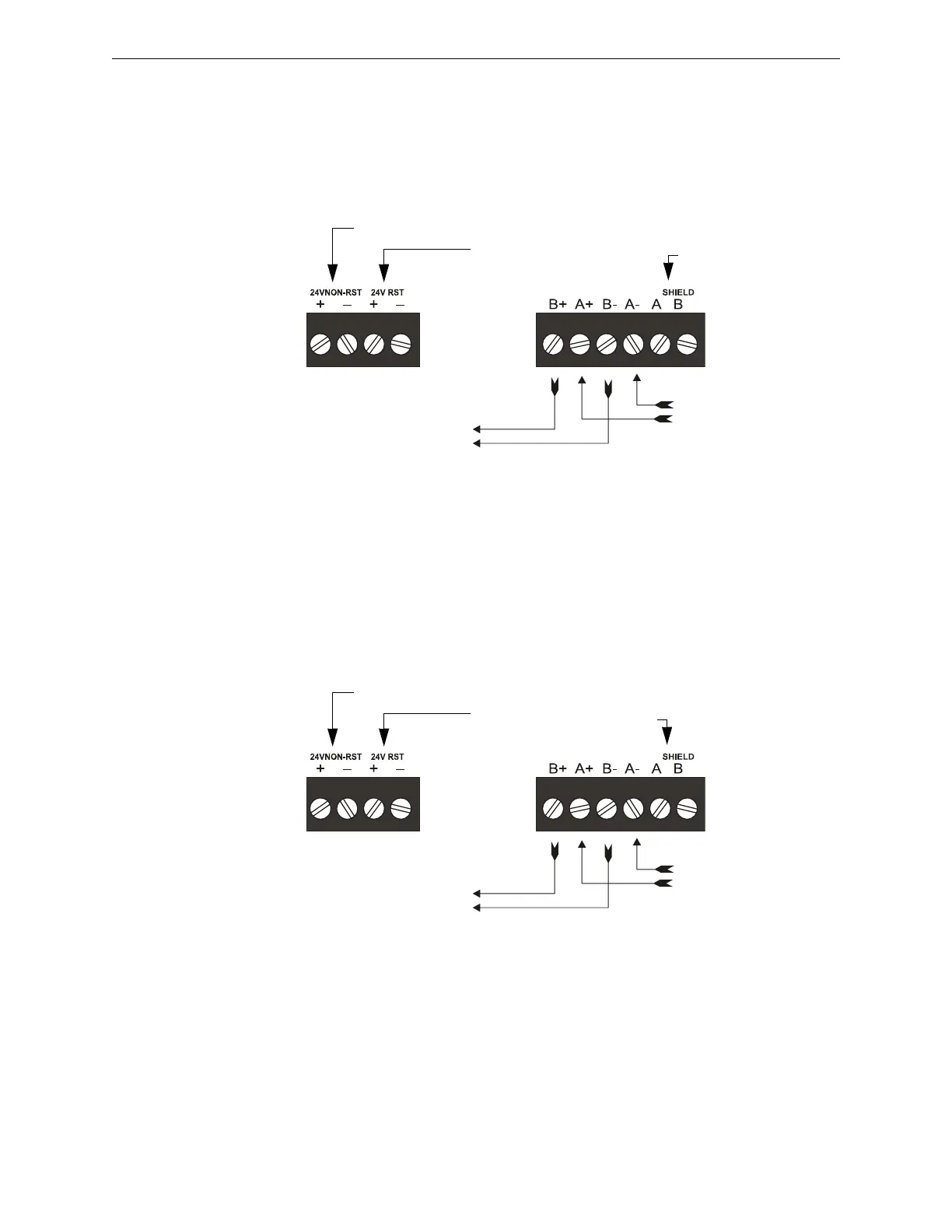

Figure 2.8 MS-9200UDLS (Rev 3) Terminal Blocks
TB10
SLC
TB1
SLC Out
Connections for
wire shield
Resettable
Power
Nonresettable Power
SLC-9200udtb.wmf
SLC Return
Figure 2.9 MS-9200UD & MS-9200UDLS (Rev 1 & 2) Terminal Blocks
