Section 5: Monitor Modules
5.1 Descriptions
These addressable modules monitor conventional contact-type alarm initiating devices. You can
configure module circuits as an NFPA Style B (Class B) or Style D (Class A) Initiating Device Cir-
cuits (IDC). There is no limit to the number of contact-type devices installed on a monitor module
circuit.
5.1.1 Addressable Monitor Modules
MMF-300 Monitor Module
This is an addressable module that monitors either a Style B (Class B) or Style D (Class A) circuit
of dry-contact input devices. This module is capable of participating in degraded mode where sup-
ported by the FACP.
NOTE: For more information on the individual module specifications refer to the Installation
Instructions that are provided with these devices.
SLC–
SLC+
IDC Return –
IDC Return +
IDC Out +
IDC Out -
Rotary
Switches
Areas used to record the device
address and SLC number.
FMMtpH.wmf

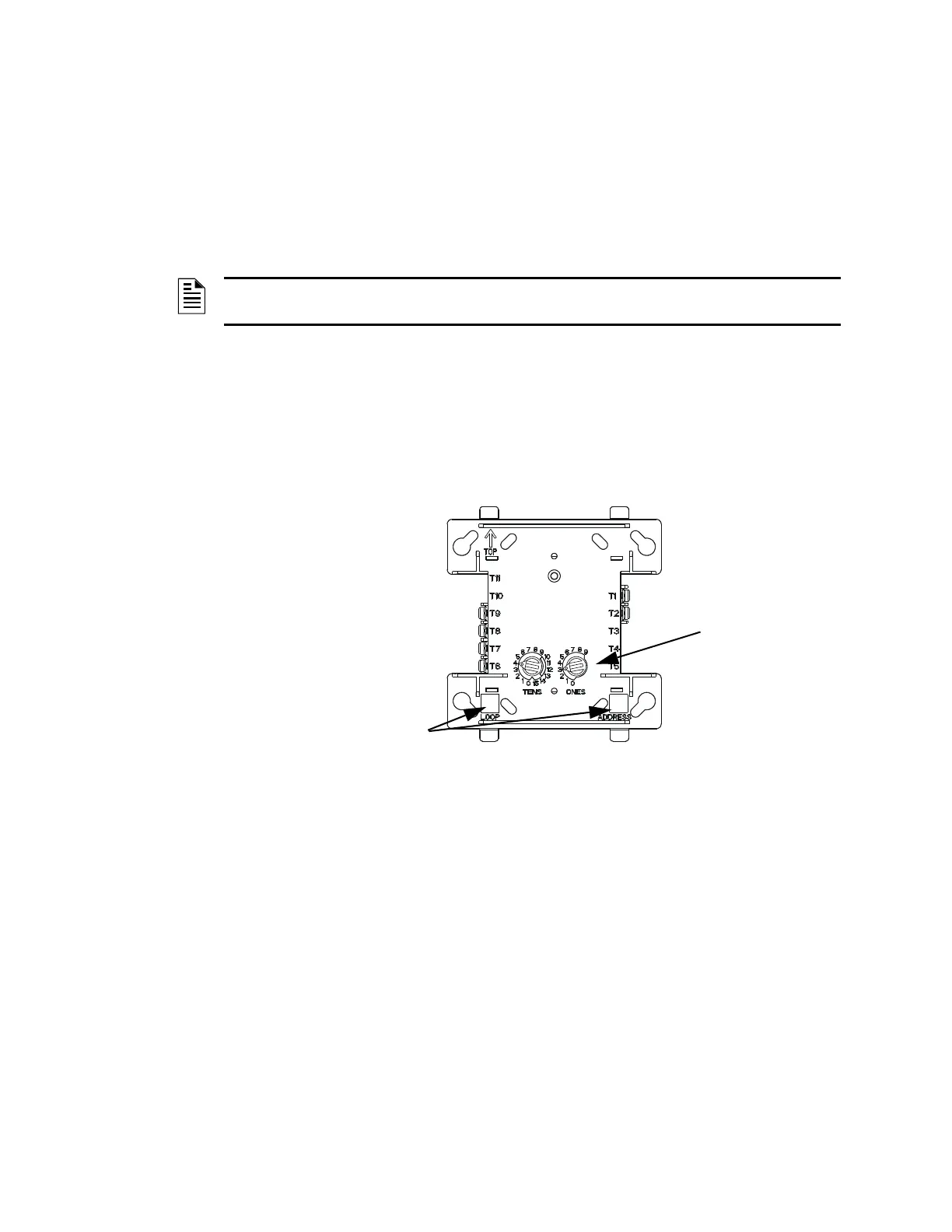

Figure 5.1 MMF-300 Monitor Module
