MMF-300 Wiring Diagrams Monitor Modules
5.3.2 Wiring a NFPA Style D IDC with an MMF-300
Connect the SLC wiring to the module terminals 1 (–) and 2 (+).
Each module takes one address on the SLC. Use the rotary switches on the module to set it to the
required SLC address. Refer to “Setting an SLC address for a Single Point Module” on page 34.
The figure below shows typical wiring for a supervised and power-limited NFPA Style D (Class A)
IDC using an MMF-300 module.
• Refer to the Device Compatibility Document for compatible smoke detectors.
• See “Power Considerations” on page 68 for information on supervising 24 VDC power.
SLC-idcD1tpH.wmf
24 VDC
Four-wire
Detector Base
Heat
detector
SLC
MMF-300
IDC
24 VDC Power
Filtered, Regulated,
Resettable
From
Supply
To Next IDC
or
Supervision Device
Manual pull
station

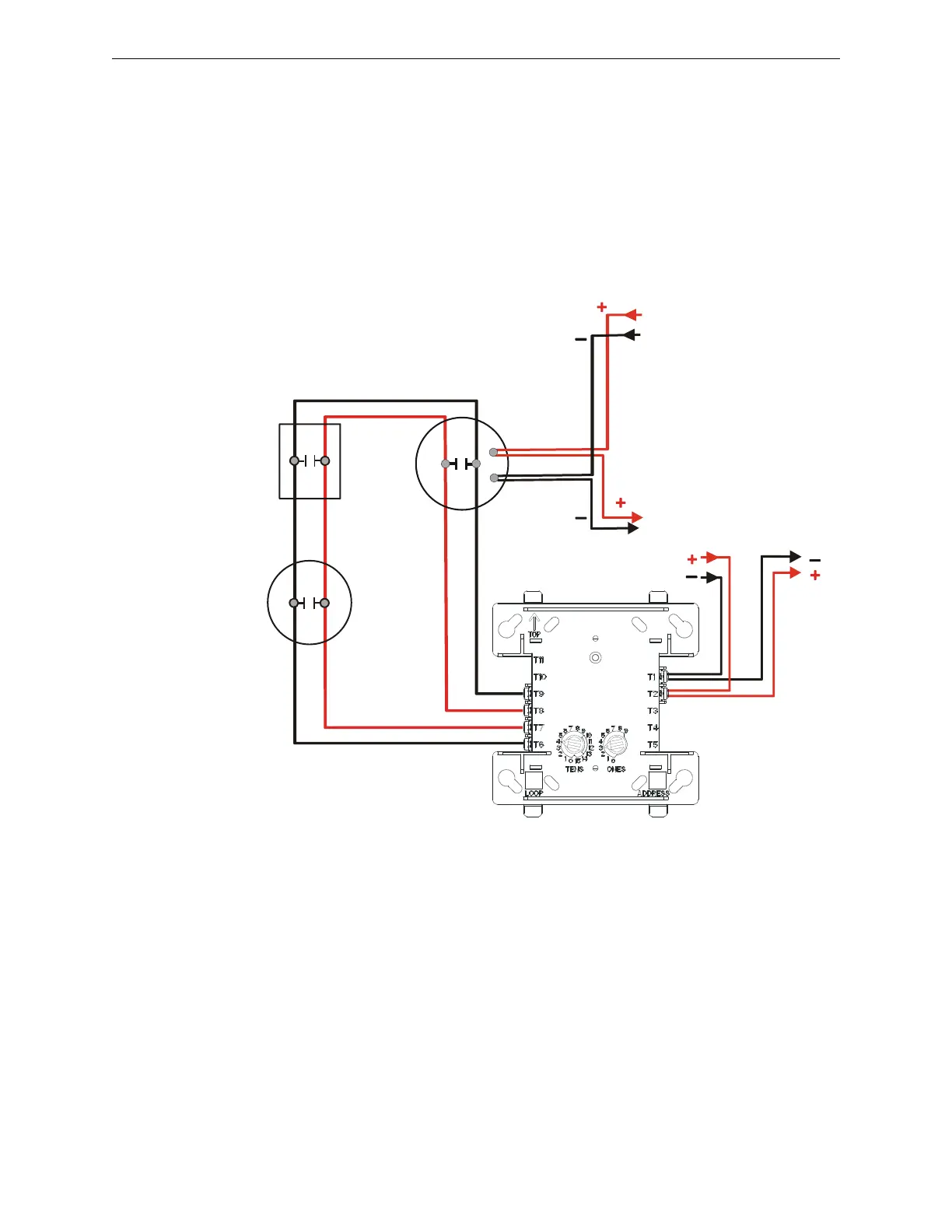

Figure 5.10 Typical Style D IDC Wiring with an MMF-300
