54 FireLite SLC Wiring Manual — P/N 51309:P4 9/17/2014
Relay Modules CRF-300-6 Circuit Board Information
7.3 CRF-300-6 Circuit Board Information
7.4 CRF-300-6 Installation & Wiring
7.4.1 Cabinet Installation
This type of module is contained in either a BB-2 or BB-6 cabinet. The BB-2 can accommodate up
to 2 modules and the BB-6, which requires the CH-6 chassis, can accommodate up to 6 modules.
See the Installation Instructions provided with module for proper installation into cabinet.
T102
ADDRESS
DISABLE
NONE
ONE
TWO
THREE
N.C. N.O.
COMM
BASE ADDRESS +0
N.C. N.O.
COMM
BASE ADDRESS +1
N.C. N.O.
COMM
BASE ADDRESS +2
N.C. N.O.
COMM
BASE ADDRESS +4
N.C. N.O.
COMM
BASE ADDRESS +5
Disable Address
Place shunt onto
required pins.
SLC Address
Set rotary switches to
address required.
Status Indicators
Green LEDs are
controlled by FACP to
indicate status of each
module address.

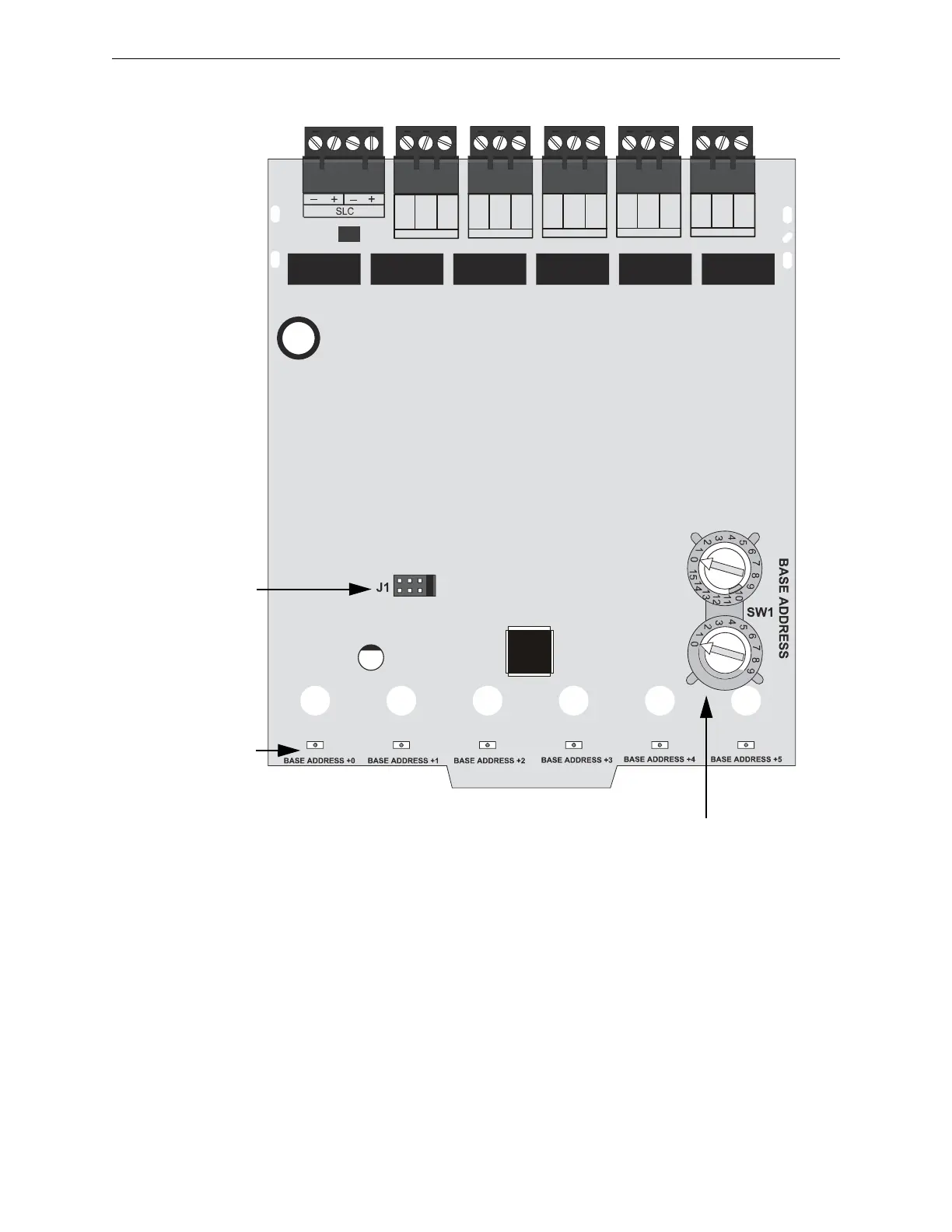

Figure 7.2 CRF-300-6 Control Relay Module
crf-300-6.wmf
