FireLite SLC Wiring Manual — P/N 51309:P4 9/17/2014 75

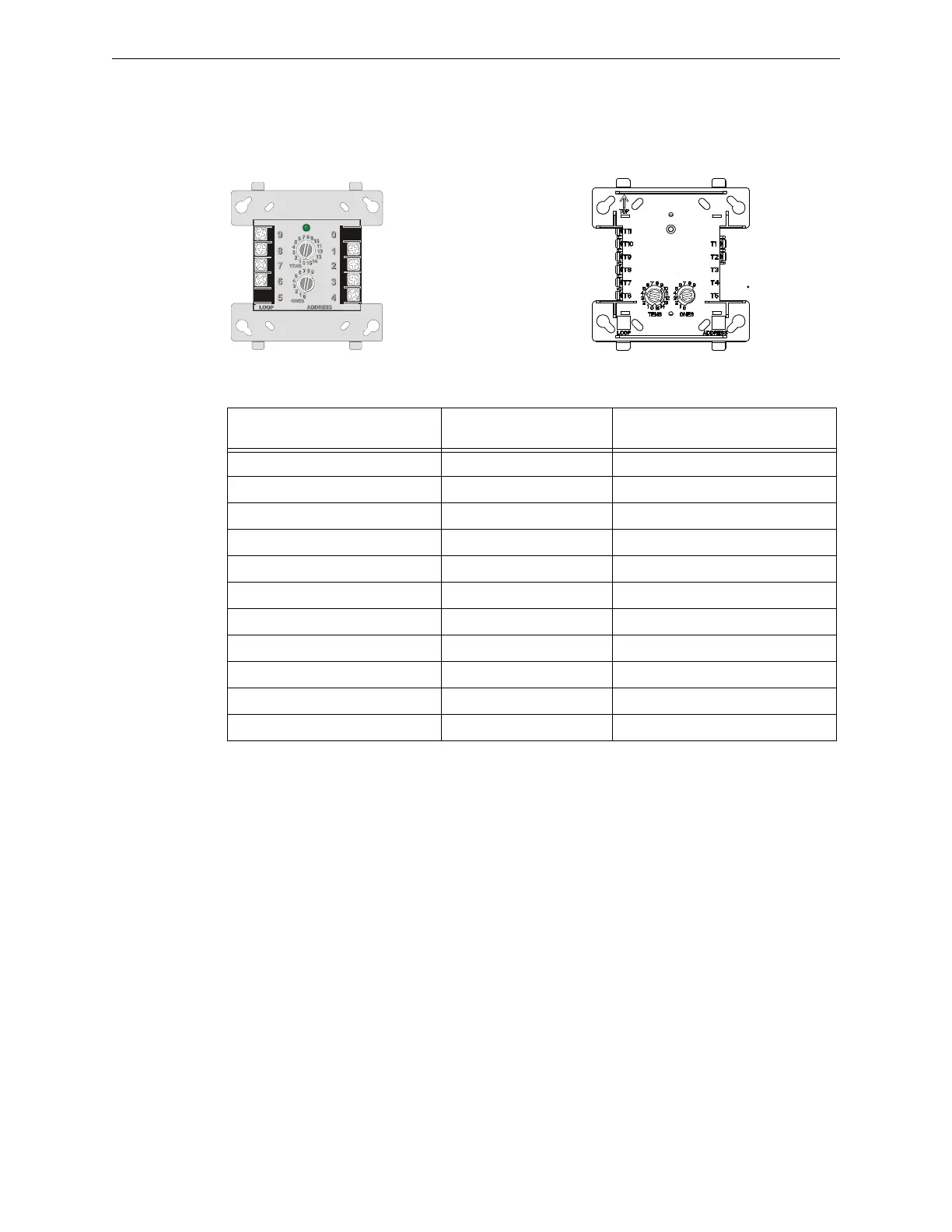

CMF-300 and MMF-302 Terminal Conversion Charts for New & Legacy Devices
C.2 CMF-300 and MMF-302
All module polarities are shown in standby condition, which reflects the labels on the new mod-
ules.
Newer Module
(H-Type)
SLC -
SLC +
VDC -
VDC +
A-
A+
B/A +
B/A -
SLC -
SLC +
VDC -
VDC +
A-
A+
B/A +
B/A -
Legacy Module
(V-Type)
Legacy Module Terminal Number
(V-Type)
Terminal Function
Newer Module Terminal Number
(H-Type)
1SLC - 1
2SLC + 2
3VDC -11
4 VDC + 10
5Unused 5
6 Solenoid B/A - 6
7 Solenoid B/A + 7
8 Solenoid A + 8
9 Solenoid A - 9
N/A Unused 3
N/A Unused 4
Table C.2 CMF-300 and MMF-302 Terminal Conversions
