Commissioning
3. Tap ZONES.
.

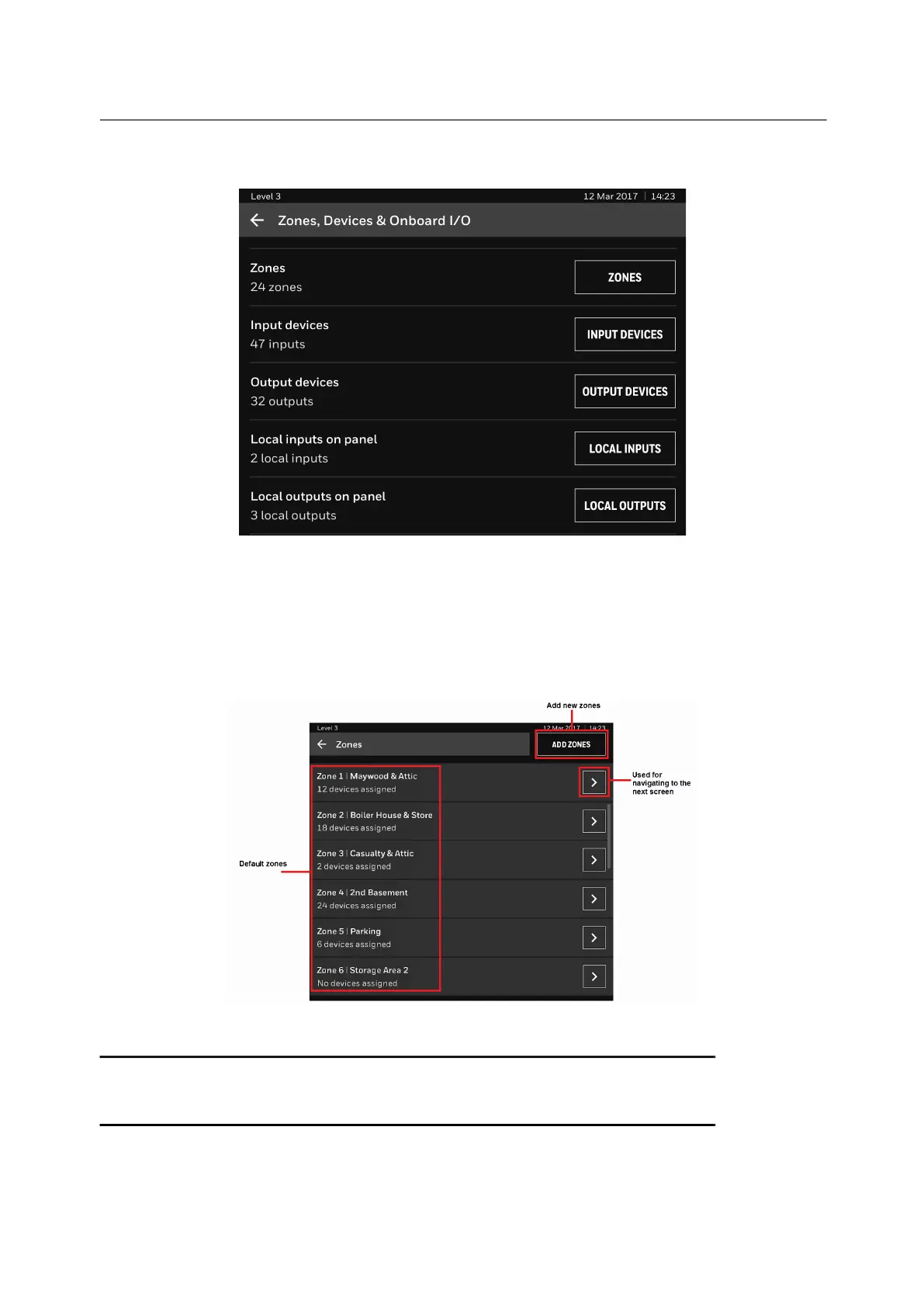

Figure 5.3 Zones, Devices & Onboard I/O
4. The ZONES screen opens with the list of zones in the panel. You can also view the
devices assigned to each zone.
5. Tap ADD ZONES to add a new zone and enter the Zone name. The Zone name must be
maximum 20 characters.
.
Figure 5.4 Zones in the Panel
NOTE: When you add a new zone, a successive zone gets created with a default zone name which is
editable using the qwerty keyboard. For example, if you add a new zone after zone 10, a “zone 11”
gets added with default zone name as “Zone 11".
