TR50 - User Guide
7

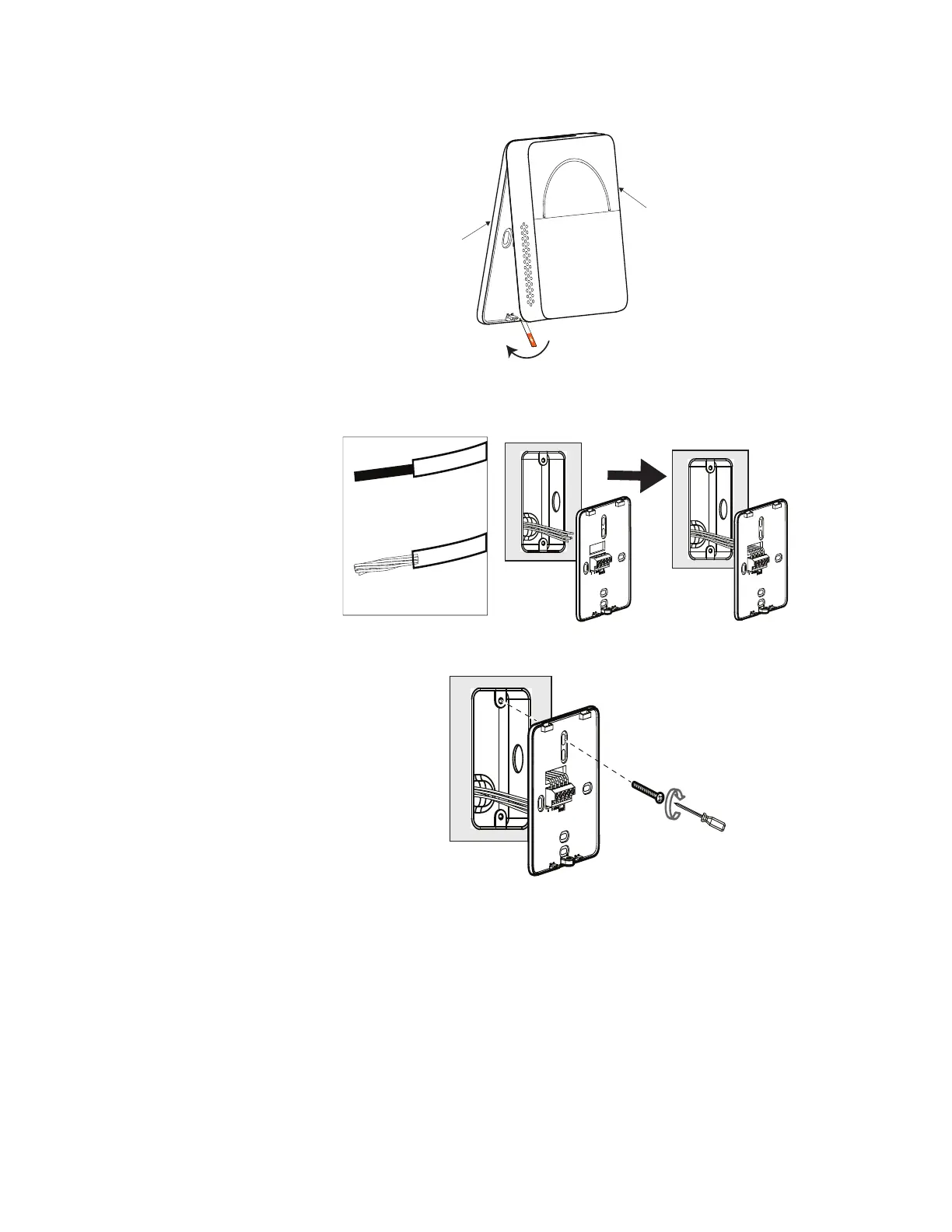

3.
Separate
th
e
fr
ont
un
it
and wa
ll plate
b
y
pulling
ou
t
the
tape from
t
he bo
ttom
to
do the wiring.
4.
Pu
ll the cables through the junction box
and do wiring. Refer
Wiring
Connections
section for
wiring details.
5.
Fix the wall plate with the help of tw
o
screws to the Junction box.
Wall Plate
Front Unit
Solid Wire
(Strongly Recommended)
Stranded Wire
(Alternative)
11
13
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 - Introduction to Tr50
6
Introduction
6
Dimensions
7
Intended Audience and Assumed Knowledge
7
Specification
7
System Architecture
8
Ordering Information
8
Chapter 2 - Installation
9
Important Safety Information and Installation Precautions
9
Before Installation
10
Restricting Access to Network
11
Steps to Install TR50 Sensor
11
Wiring Connections
14
Sylk TM Bus Wiring
14
Power up the Sensor Device
14
Chapter 3 - Getting Started
15
Home Screen - User Interface
15
Touch Button
16
LED Ring Behavior / Indication
16
Parameter Description
17
Mono Display
18
Display Parameter
18
Auto Mode
18
Manual Mode
18
Chapter 4 - Configuration
19
Topologies Used to Connect TR50 IAQ Sensor
19
Dip Switch Configuration
19
Bacnet Mode
19
Modbus Mode
20
Slyktm Bus Mode
20
RS-485 Configuration
21
Pre-Requisites
21
Bacnet Configuration
22
Pre-Requisties
22
Automatic MAC Address
22
Bacnet Device Instance ID
22
Auto Baud Rate
22
Bacnet Points
22
Configure TR50 Bacnet Device Via Niagara
31
Configure TR50 Bacnet Device Via CPO
34
Bacnet Controller Compatibility of TR50
35
Modbus Configuration
36
Baud Rate
36
Modbus Serial Port Settings
36
Modbus Configuration Register Table Modbus Sensor
37
Modbus Sensor Reading Status Register Table
42
Modbus Runtime Register Table
44
Configure TR50 Modbus Device Via Niagara
46
Configure TR50 Modbus Device Via CPO
49
Modbus RTU Controller Compatibility of TR50
50
Sylk TM Bus Configuration
51
Configure TR50 Sylk Device Via Niagara
51
Configure the TR50 Sylk Device Via CPO
59
Sylk Controller Compatibility of TR50
64
Chapter 5 - Operations
65
About Status LED Ring
65
TVOC Sensor Reading
65
PM 1 and PM 10 Sensor Reading
65
Temperature Unit Change
66
Factory Reset
66
Firmware Download of TR50 Via Niagara
67
Firmware Download of TR50 (Plant Controller)
67
Firmware Download of TR50 (Unitary Controller)
71
Firmware Download of Sylk Via Niagara
73
Firmware Download of TR50 Via CPO (Modbus, Bacnet and Sylk)
75
Chapter 6 - Correction and Calibration
78
Sensor Offset
78
Temperature and Humidity Standard
79
C02 Calibration Standard
79
TVOC Calibration Standard (According to Ethanol Volatilization)
80
PM1.0, PM2.5, and PM10 Calibration Standard (According to GRIMM Technology)
80
Chapter 7 - Maintenance and Troubleshooting
81
Maintenance
81
Troubleshooting
81
Error Code
82
Error Code with Display
82
Error Code Without Display
83
Chapter 8 - Certification and Regulation
84
Waste Electrical and Electronic Equipment (WEEE)
84
FCC Part 15 Compliant
84
Power Supply Guidelines and Requirements
85
Standards and Compliances
85
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Honeywell TR50 and is the answer not in the manual?
Ask a question
