Honeywell TR50 User Manual

2 TR50 - User Guide
1.2 Dimensions

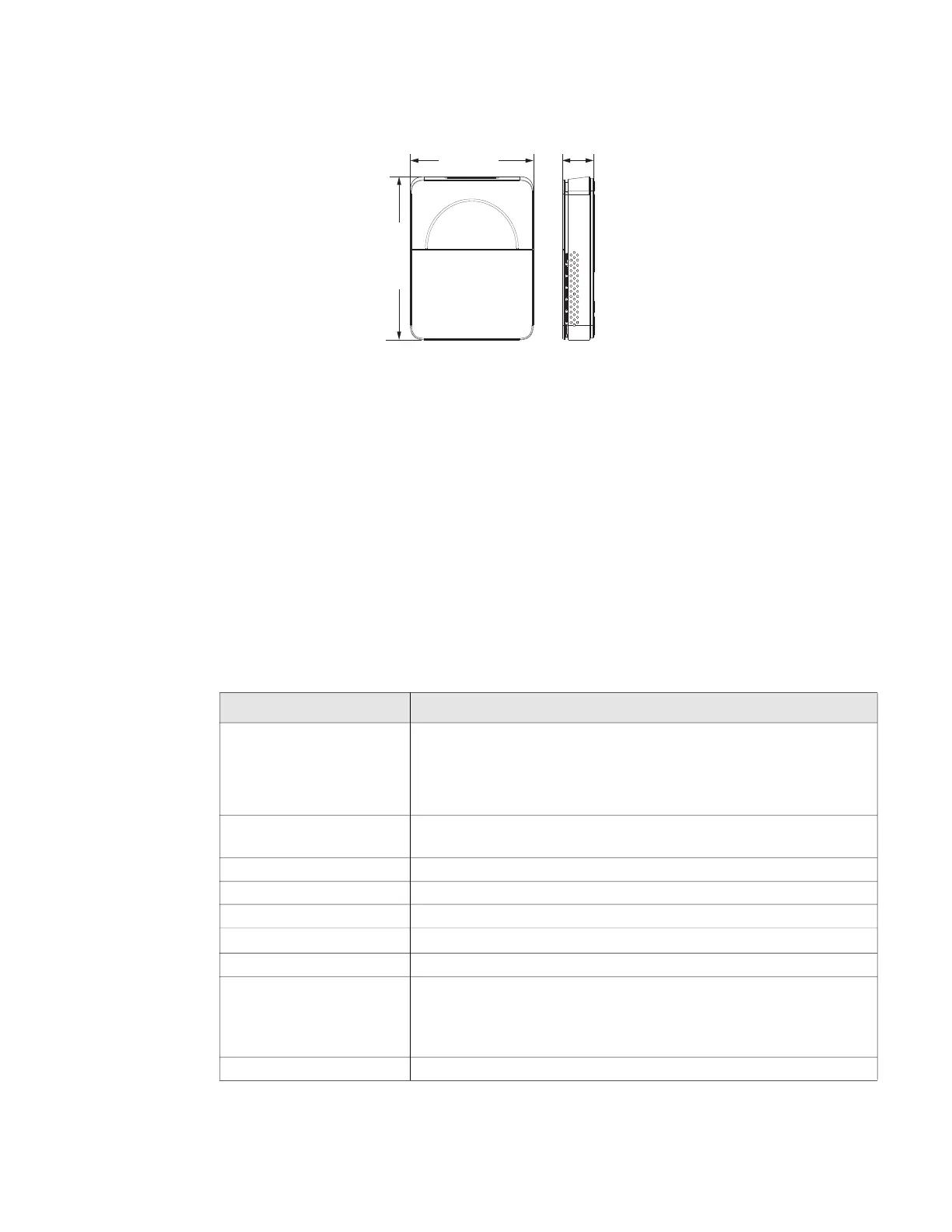

All the dimensions shown are in inches (mm).
1.3 Intended audience and assumed knowledge
This User Guide provides information about the Getting Started, Configuration
details, and Operations of the TR50 IAQ Sensor to the system integrator,
technicians, and end-users. All the electrical engineers and technicians working
with the product must have basic training on HVAC Sensors, Smart sensors, and
Room Controllers and their application.
1.4 Specification
3.54" (90 mm)
4.45" (113 mm)
0.89" (23 mm)
Parameter Description
Detection Parameters
- Temperature (T)
- Relative Humidity (RH)
- Carbon Dioxide (CO
2
)
- Particular Matter (PM1.0, PM2.5 and PM10)
- Total Volatile Organic Compound (TVOC)
Power Supply
Direct : 24 VAC/VDC ± 20 %
Sylk
TM
Bus : Honeywell Sylk
TM
Bus Technology
Operating Temperature
32 to 122 °F (0 to 50 °C)
Operating Humidity
0-95 % RH, non-condensing
Storage Temperature
-40 to 150 °F (-40 to 65.5 °C)
Communication
BACnet MSTP, Modbus over RS-485, or Sylk
TM
Bus
Net weight
189 grams (0.42 lbs.)
Power Consumption
TR50-5D : 24 VAC 3.8 VA, 24 VDC, 1.5 W
TR50-5N : 24 VAC 3.8 VA, 24 VDC, 1.4 W
TR50-3D : 24 VAC 3.2 VA, 24 VDC/Sylk
TM
Bus, 0.9 W
TR50-3N : 24 VAC 3.2 VA, 24 VDC/Sylk
TM
Bus, 0.8 W
Dimensions
3.54 inches (90 mm) x 4.45 inches (113 mm) x 0.89 inches (23 mm)
