TR50 - User Guide 14
CONFIGURATION
4.1 Topologies used to connect TR50 IAQ Sensor
To configure the TR50 IAQ Sensor, the device must be connected to plant or unitary
controller. Before configuring the device, complete the dip switch configuration
and connect the device to plant controller or unitary controller through RS-485
cables and connect your supervisor’s workstation (Laptop or PC) to the same
network. For more details refer System Architecture on page 3.
4.2 Dip Switch Configuration
The Dip switch is used to change the communication protocols as per the selected
networks.

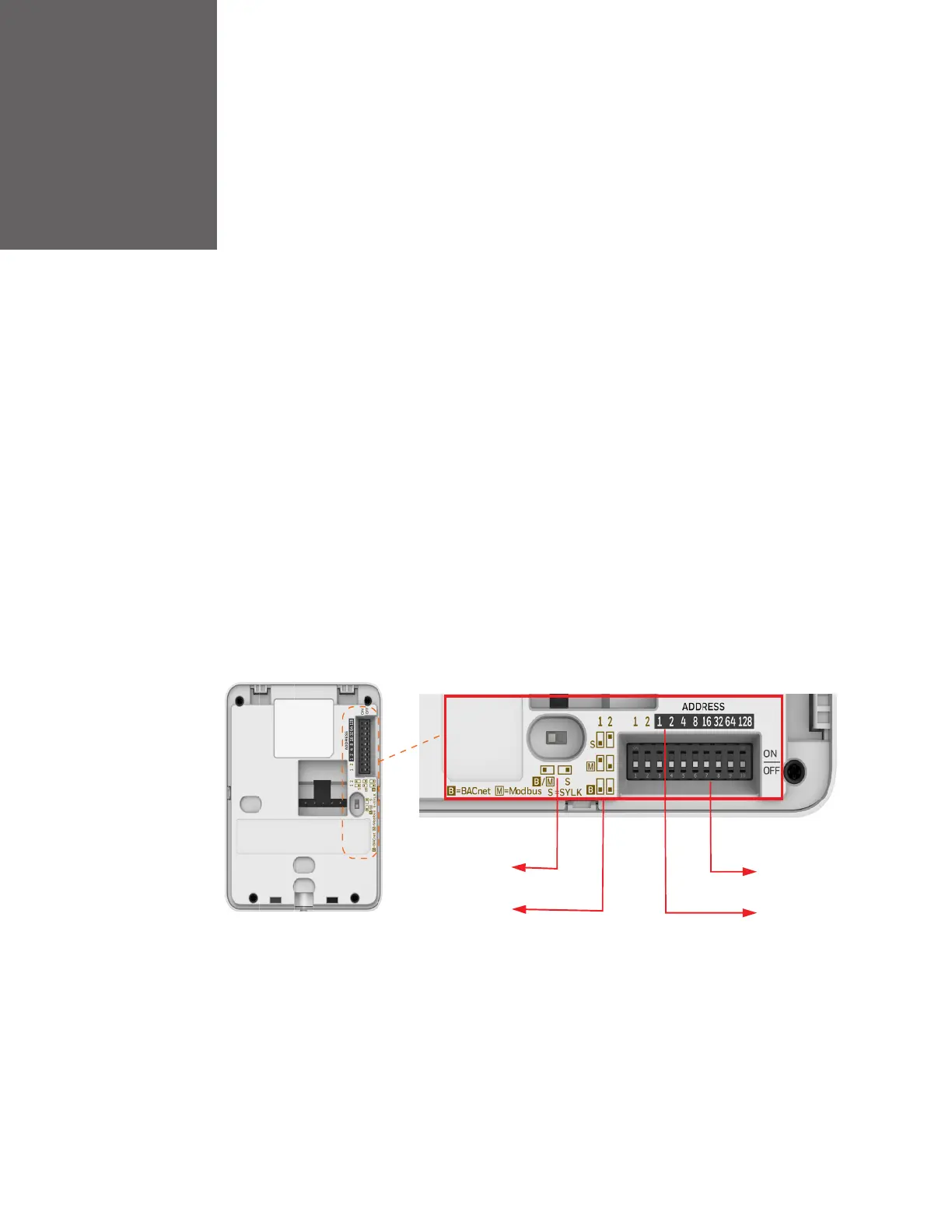

The below figure describes the different switch how to communicate the networks:
4.2.1 BACnet Mode
Slide Switch: The slide switch is set to LEFT to work in BACnet network mode.
DIP Switch (Protocol selection): The BACnet protocol switch is set to OFF for both
1 and 2 address.
Slide Switch
Dip Switch
Protocols
MAC Address
