TR50 - User Guide 70
5.7 Firmware Download of TR50 via CPO (Modbus,
BACnet and Sylk)
Follow the below steps to download the TR50 firmware on CPO tool connected
to the Modbus network:
Step 1. On the left pane, under BACnet Devices, select a CPO-MSTP VAV or IP-
VAV controller where the field device is connected.
Step 2. On the tool menu bar, click Controller > Field Device Firmware
Download.

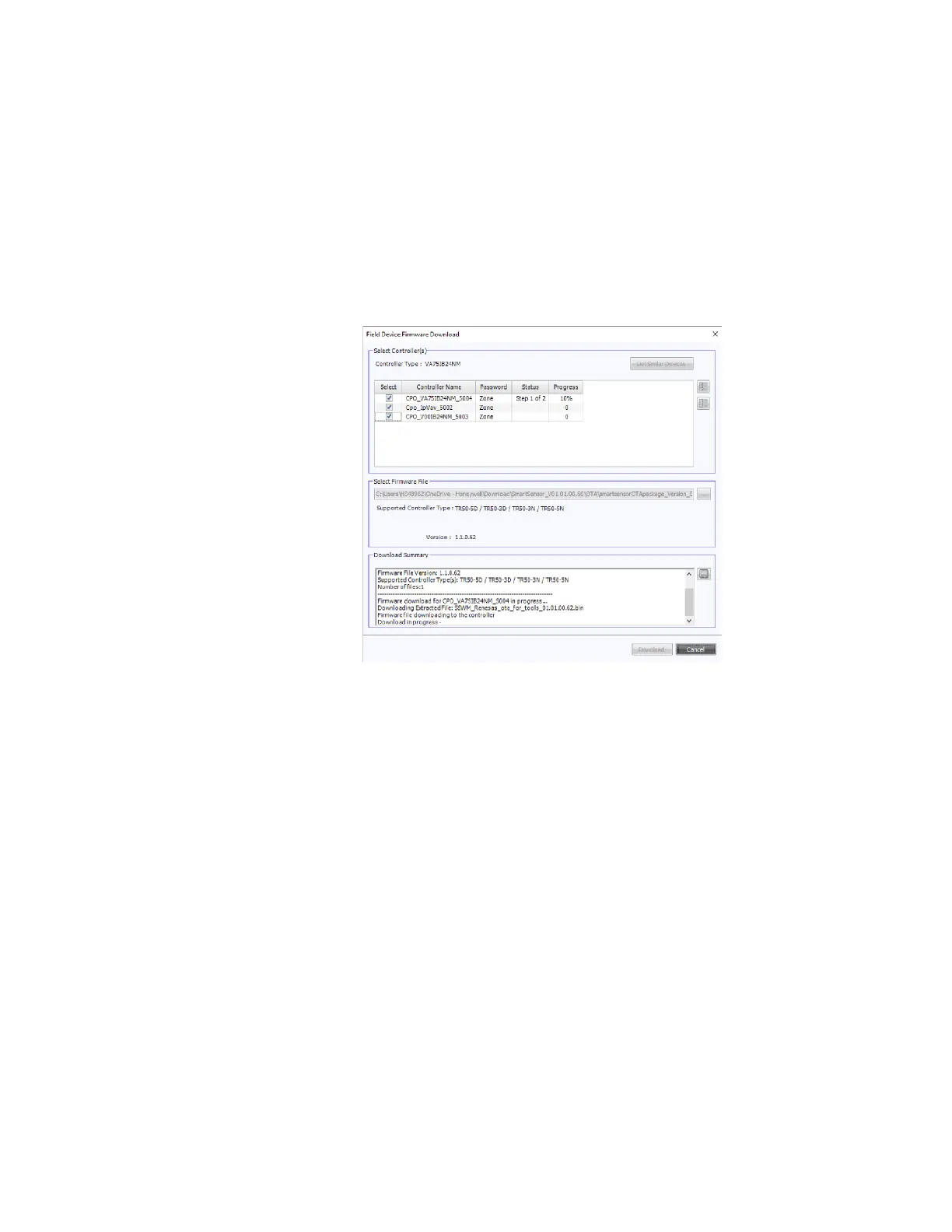

The Field Device Firmware Download window appears.
In the Select Controller (S) box, the selected Edge VAV controller
appears. If similar devices are available in the network, click List Similar
Devices. You can select multiple devices and perform a bulk firmware
download.
Step 3. In the Select Firmware File box, click the browse button, navigate to the
location where the TR50 sensor firmware is stored, select the file, and
click Open.
Once the file is selected, all supported models of the TR50 sensors and
the version number of the selected firmware are displayed in Supported
Controller Type.
Step 4. Click Download.
The Firmware Download pop-up message appears, read the message,
and click Yes.
The Download Summary box displays the download activities. If the download is
completed for all devices, then the Firmware Download Result message appears at
the end. You can cancel the download while the downloading is in progress by
clicking the Cancel button.
