Honeywell TR50 User Manual

16 TR50 - User Guide
4.3 RS-485 Configuration
4.3.1 Pre-Requisites:
• Power Source (24 VAC/VDC) to connect TR50 device and Plant controller/
Unitary controller
• RS-485 cables
• Plant controller/ Unitary controller
Before configuring the device make sure the power supply is Switch OFF.
Refer Wiring Connections section on page 9 for details about RS-485 wiring.

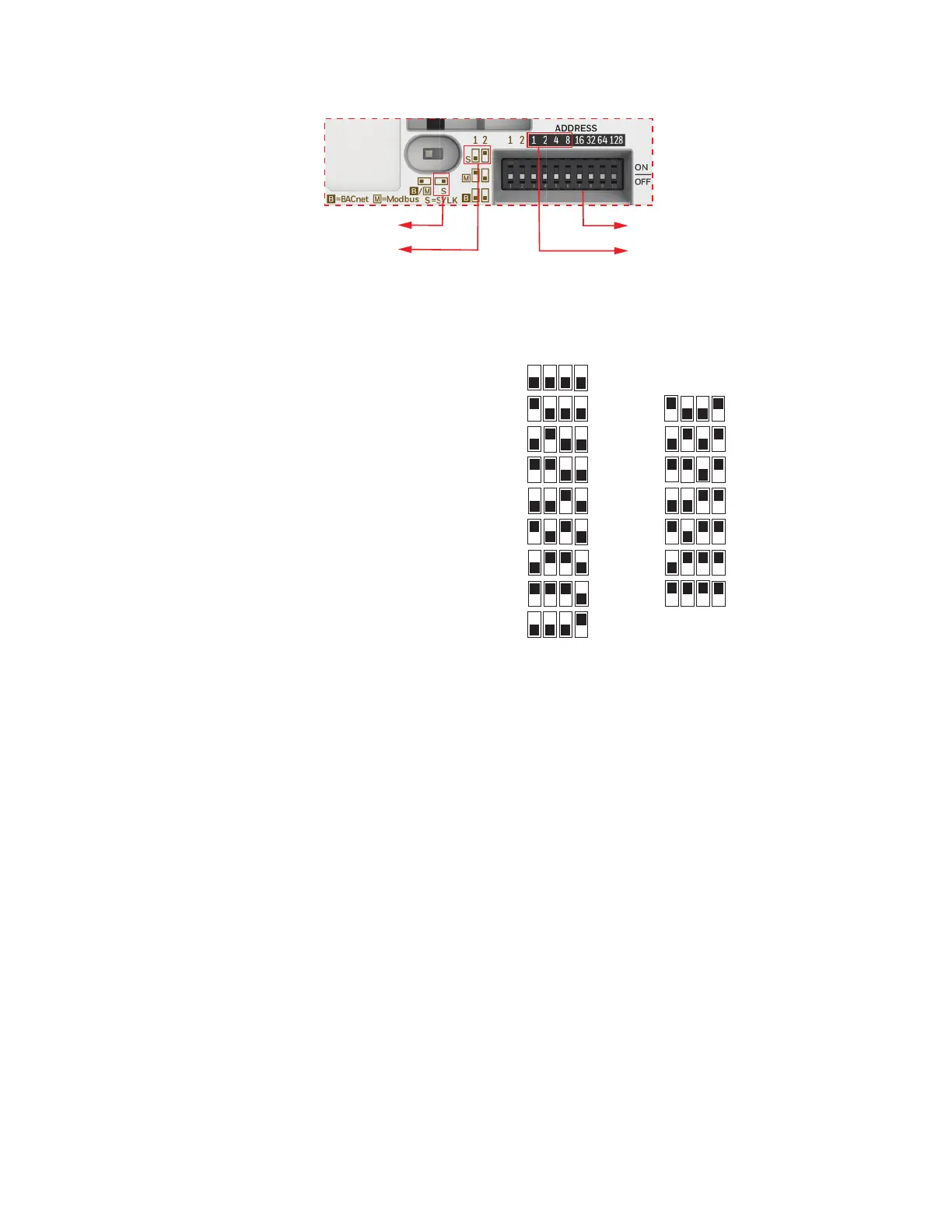

Slide Switch
Dip Switch
Protocols
MAC Address
( For Sylk mode always
configure 1,2,4 and 8)
Address: 1
Address: 2
Address: 3
Address: 4
Address: 5
Address: 6
Address: 7
Address: 8
Default: 1
Address: 9
Address:10
Address:11
Address:12
Address:13
Address:14
Address:15
Default Address = 1
1
2
4
8
1
2
4
8
