HP 3600 v2 Series Security Configuration Guide

157
• The host is directly connected to the switch and the switch is configured for direct authentication. The
host is assigned with a public network IP address either manually or through DHCP. Before passing
portal authentication, users can access only the portal server. After passing portal authentication,
users can access Internet resources.
• A RADIUS server serves as the authentication, authorization, and accounting server.

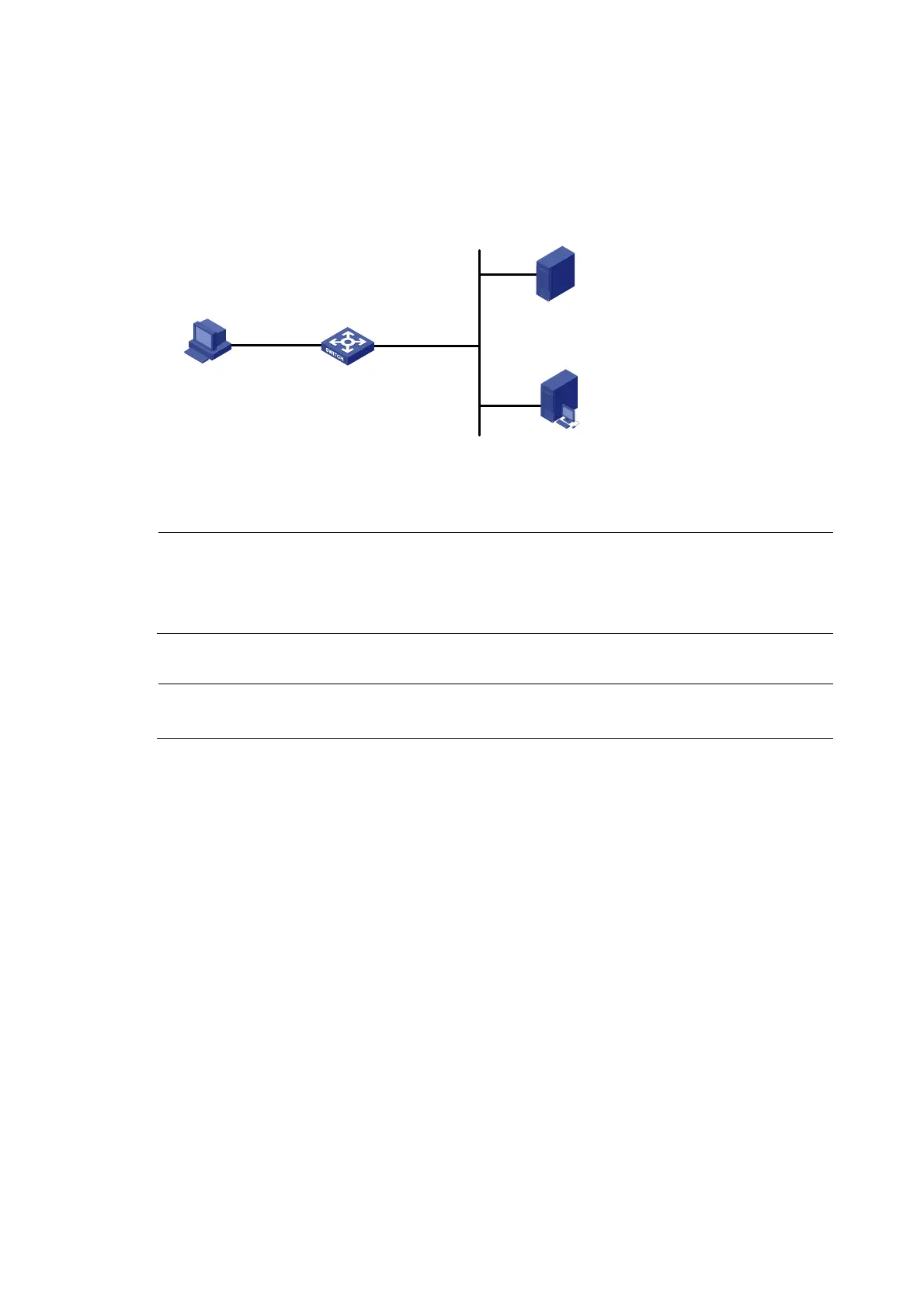

Figure 61 Network diagram
RADIUS server
Switch
Host
2.2.2.2/24
Gateway：2.2.2.1/24
Vlan-int100
2.2.2.1/24
Vlan-int2
192.168.0.100/24
Portal server
192.168.0.111/24
192.168.0.112/24
Configuration procedure
NOTE:
• Configure IP addresses for the host, switch, and servers as shown in Figure 61 and m
ake sure that the
y
can reach each other.
• Configure the RADIUS server properly to provide authentication and accounting functions for users.
1. Configure the portal server (iMC PLAT 5.0)
NOTE:
This example assumes that the portal server runs iMC PLAT 5.0(E0101) and iMC UAM 5.0(E0101).
# Configure the portal server.
Log in to the iMC management platform and select the Service tab. Then, select User Access Manager >
Portal Service Management > Server from the navigation tree to enter the portal server configuration
page, as shown in Figure 62.
• C
o
nfigure the portal server parameters as needed. This example uses the default settings.
