HP 3600 v2 Series Security Configuration Guide

66

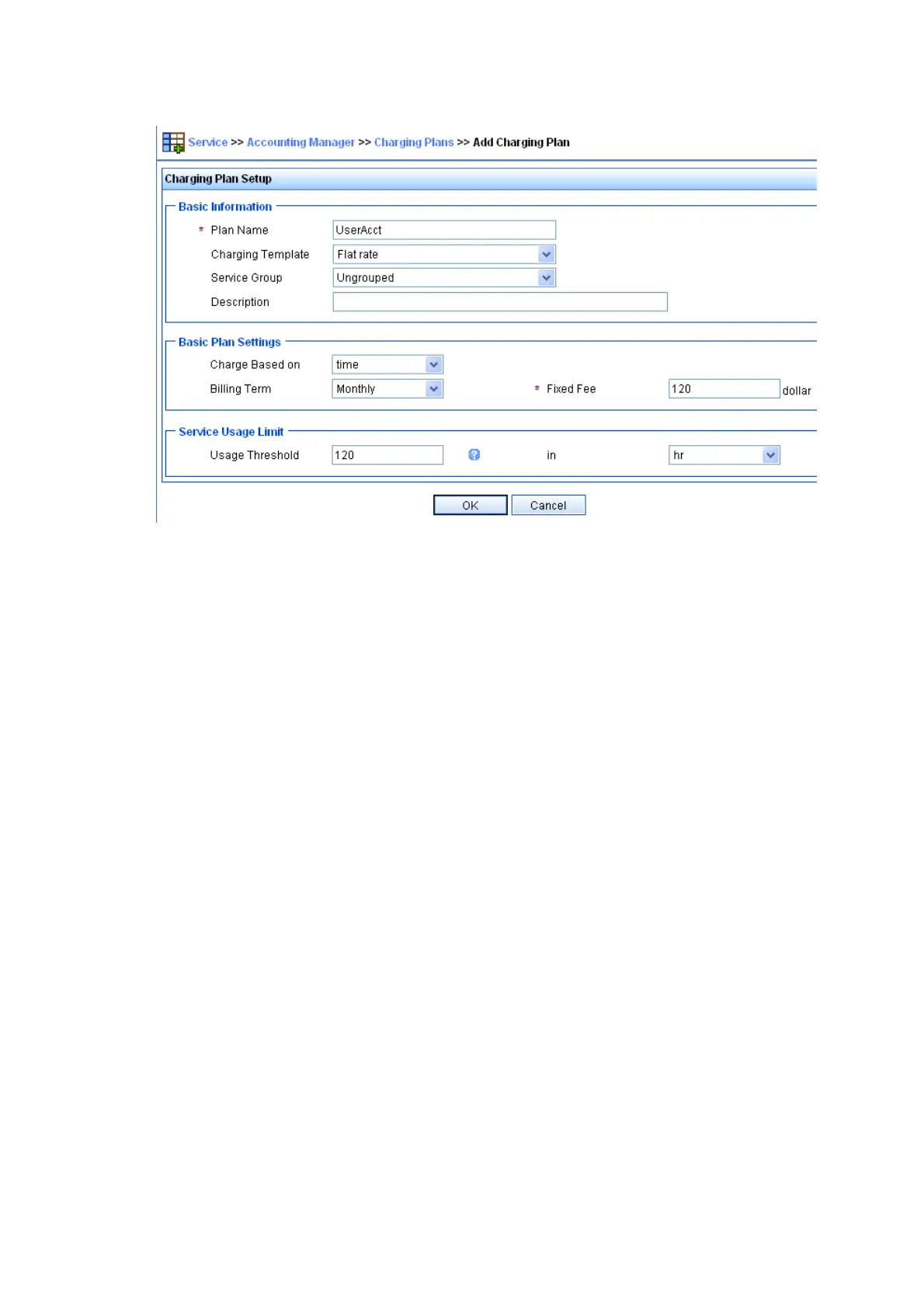

Figure 28 Add a charging policy
# Add a service.
Click the Service tab, and select User Access Manager > Service Configuration from the navigation tree
to enter the Service Configuration page. Then, click Add to enter the Add Service Configuration page
and perform the following configurations:
• Add a service named Dot1x auth and set the Service Suffix to bbb, which indicates the
authentication domain for the 802.1X user. With the service suffix configured, you must configure
usernames to be sent to the RADIUS service to carry the domain name.
• Specify UserAcct as the Charging Plan.
• Select Deploy VLAN and set the ID of the VLAN to be assigned to 4.
• Configure other parameters according to the actual situation.
• Click OK to finish the operation.
