Peak Detection Prevents Aliasing
Aliasing produces misleading information. The peak detection circuitry in the
HP 54645A/D helps to prevent aliasing by identifying additional transitions that
occur between logic samples. Because of the high sample rate of the
HP 54645A/D MegaZoom technology, you should not see aliasing.
Consider the following example.

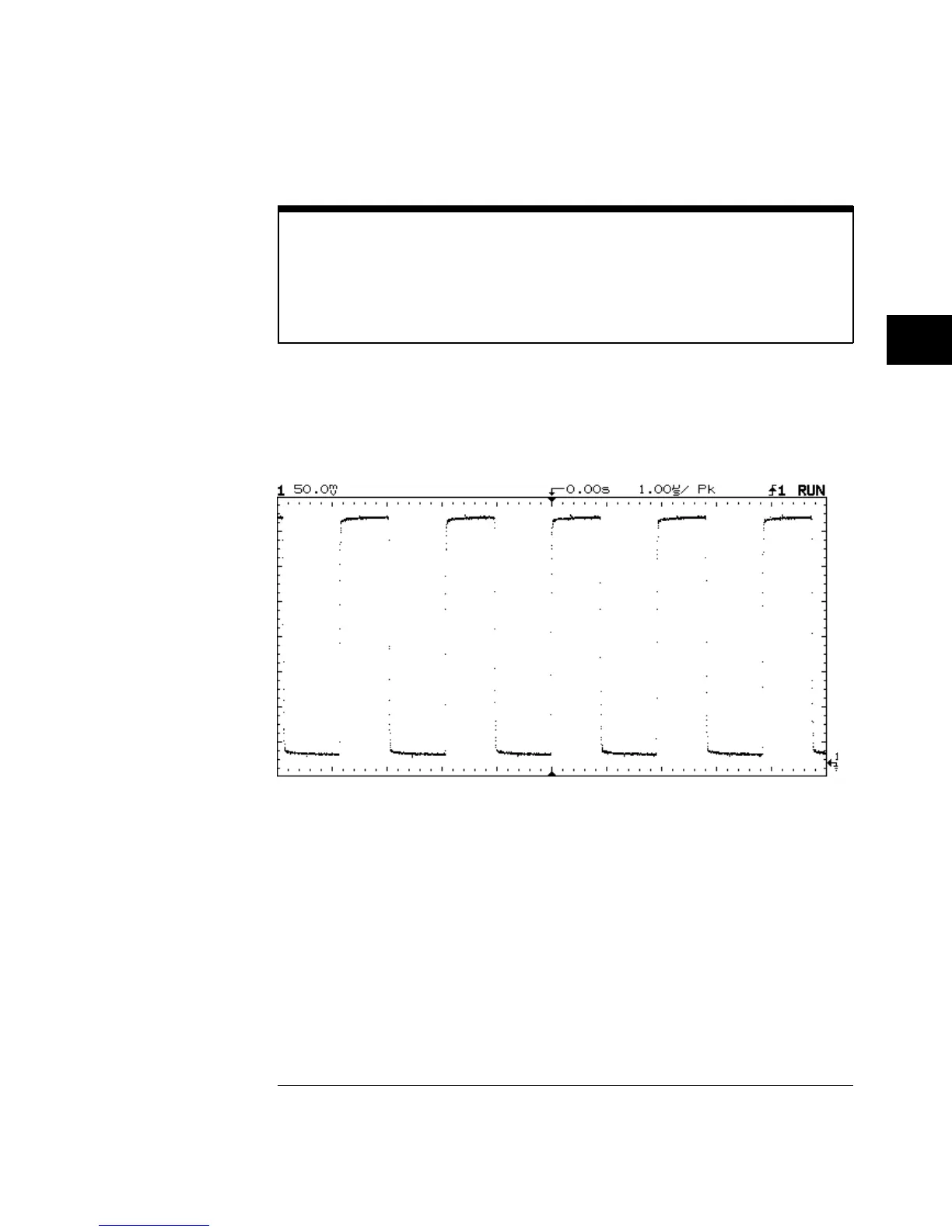

The following picture shows a simple square wave with the scope in peak
detect mode at 1
µ
s/div.
Simple Square Wave in Peak Detect Mode on HP 54600
Figure 4-3
MegaZoom Concepts
Display Modes
4-11
