Installing the switch in a 19-inch rack
Installation prerequisites
The rack depth for the 5800AF-48G and 5820AF-24XG switches must be 1000 mm (39.37 in).
Mounting bracket and cable management bracket kits

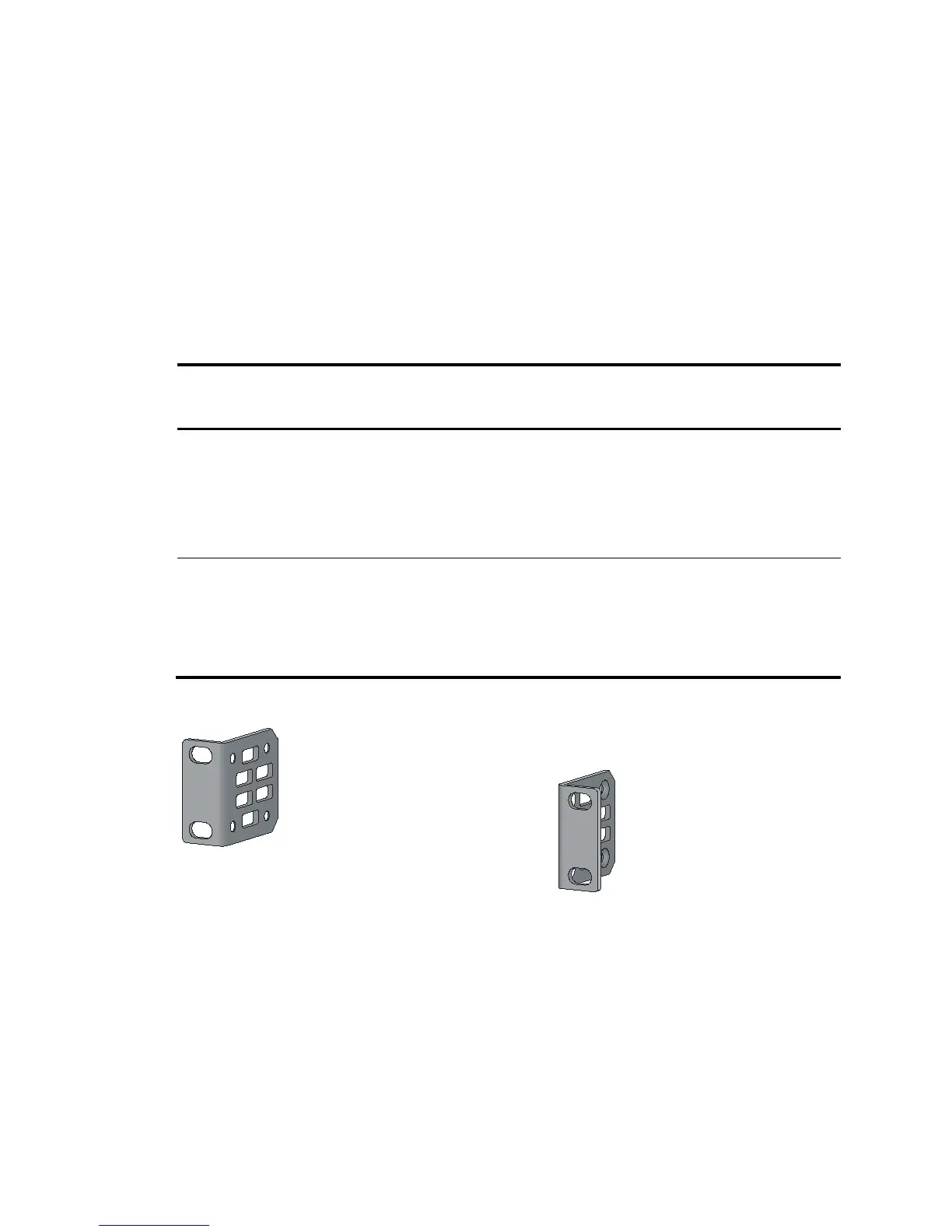

Table 5 describes the mounting bracket and cable management bracket kits shipped with the switch.
Table 5 Mounting bracket and cable management bracket kits
Chassis Mounting brackets
Cable
management
brackets
Bracket view
• All 5800 switches except the
5800-48G-PoE+ (2 slots) and
5800-48G-PoE+ TAA (2 slots)
• 5820AF-24XG
• 5820X-24XG-SFP+
• 5820X-24XG-SFP+ TAA
One pair of 1U mounting
brackets (supplied with
the switch)
N/A See Figure 2.
• 5800-48G-PoE+ (2 slots)
• 5800-48G-PoE+ TAA (2 slots)
• 5820X-14XG-SFP+ (2 slots)
• 5820X-14XG-SFP+ TAA (2 slots)
One pair of 2U mounting
brackets (supplied with
the switch)
One pair
(standard)
The mounting
brackets and cable
management
brackets are secured
together by default
(see Figure 3).
Figure 2 1U mounting bracket kit
