HP 5800-48G - Removing a Fan Tray

22

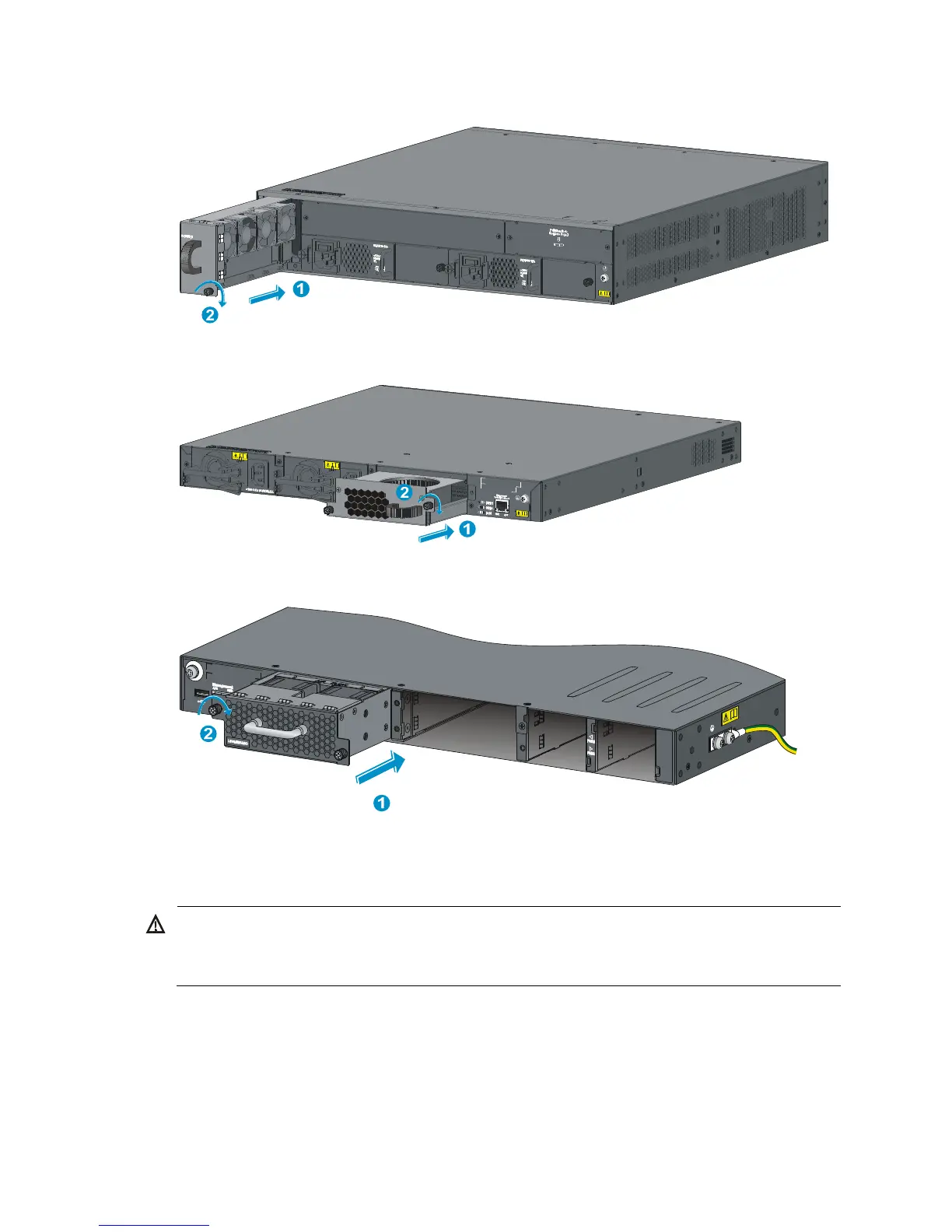

Figure 24 Installing an LSW1FAN fan tray
Figure 25 Installing an LSW1BFAN fan tray
Figure 26 Installing an LSWM1FANSC or LSWM1FANSCB fan tray
Removing a fan tray
W
ARNING!
• Take out the fan tray after the fans completely stop rotating.
• To avoid an unbalanced fan causing loud noise, do not touch the fans, even if they are not rotating.
To remove a fan tray:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is correctly grounded.
2. Loosen the captive screw of the fan tray with a Phillips screwdriver until it is fully disengaged from
the switch chassis.
