34
Connecting the PSR300-12D1/PSR300-12D2 power supply to
a –54 VDC output RPS
1. Unpack the RPS power cord, identify the plug for connecting to the power supply, orient the plug
with the power receptacle on the power supply, and insert the plug into the receptacle (see callout
1 in Figure 44).
If you cannot insert the plug into the recept
acle, re-orient the plug rather than use excessive force
to push it in.
2. Tighten the screws on the plug with a flat-blade screwdriver to secure the plug in the power
receptacle (see callout 2 in Figure 44).
3. Connect the other end of th
e power cord to the RPS.
Connecting the PSR750-A power supply
1. Verify that the AC power supply is off.
2. Connect one end of the AC power cord supplied with the power supply to the power receptacle on
the power supply (see Figure 45).
3. Connect the other end of the power cord to an AC power outlet.

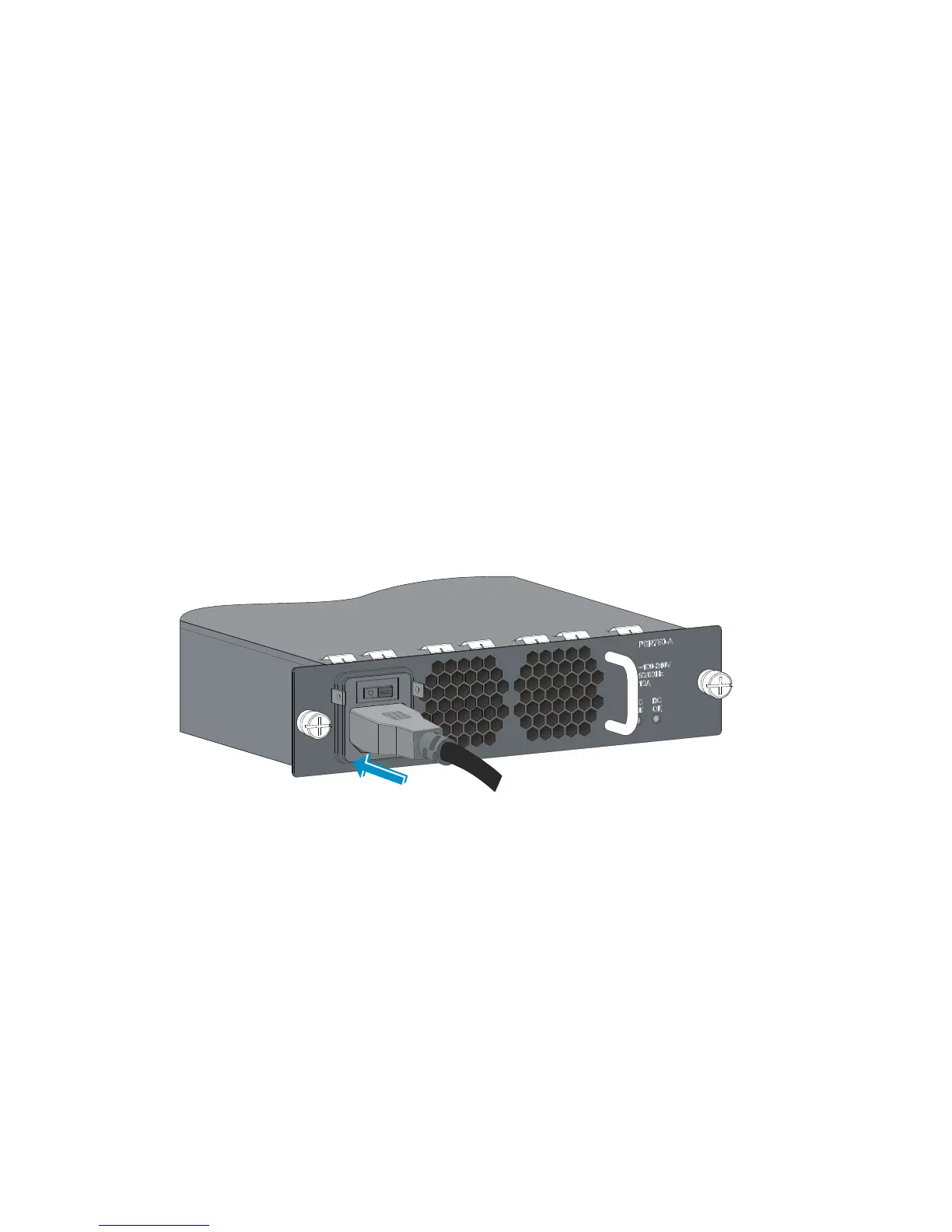

Figure 45 Connecting the PSR750-A power supply
Connecting the 650 W AC/300 W AC power supply
1. Insert the female connector of the AC power cord supplied with the power supply into the power
receptacle on the power supply.
2. Use a cable tie to secure the power cord to the handle of the power supply, as shown in Figure 46.
3. Connec
t the other end of the power cord to an AC power outlet.
