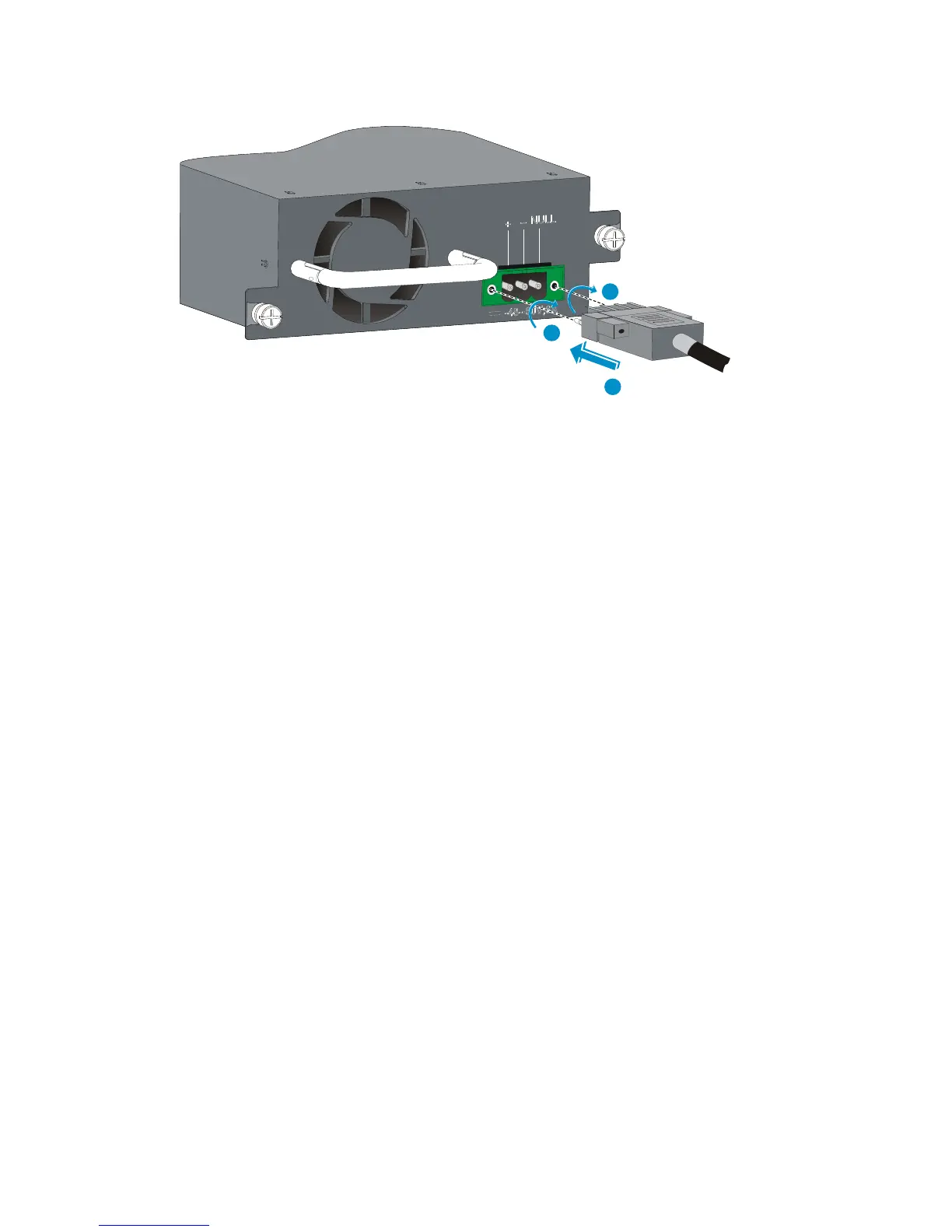

Figure 42 Connecting the PSR150-D power supply
Connecting the PSR150-D/PSR150-D1 power supply to a –54
VDC output RPS
1. Unpack the RPS power cord, identify the plug for connecting to the power supply, correctly orient
the plug with the power receptacle on the power supply, and insert the plug into the receptacle
(see callout 1 in Figure 42).
If you cannot insert the plug into the recept
acle, re-orient the plug rather than use excessive force
to push it in.
2. Tighten the screws on the plug with a flat-blade screwdriver to secure the plug in the power
receptacle (see callout 2 in Figure 42).
3. Connect the other end of th
e power cord to the RPS.
Connecting the PSR300-12A/PSR300-12A2 power supply
1. Verify that the AC power supply is off.
2. Connect one end of the AC power cord supplied with the power supply to the power receptacle on
the power supply (see Figure 43).
3. Connect the other end of the power cord to an AC power outlet.
1
2
2
