15
To secure the switch in the rack, make sure the front ends of the slide rails reach out of the chassis
rails.

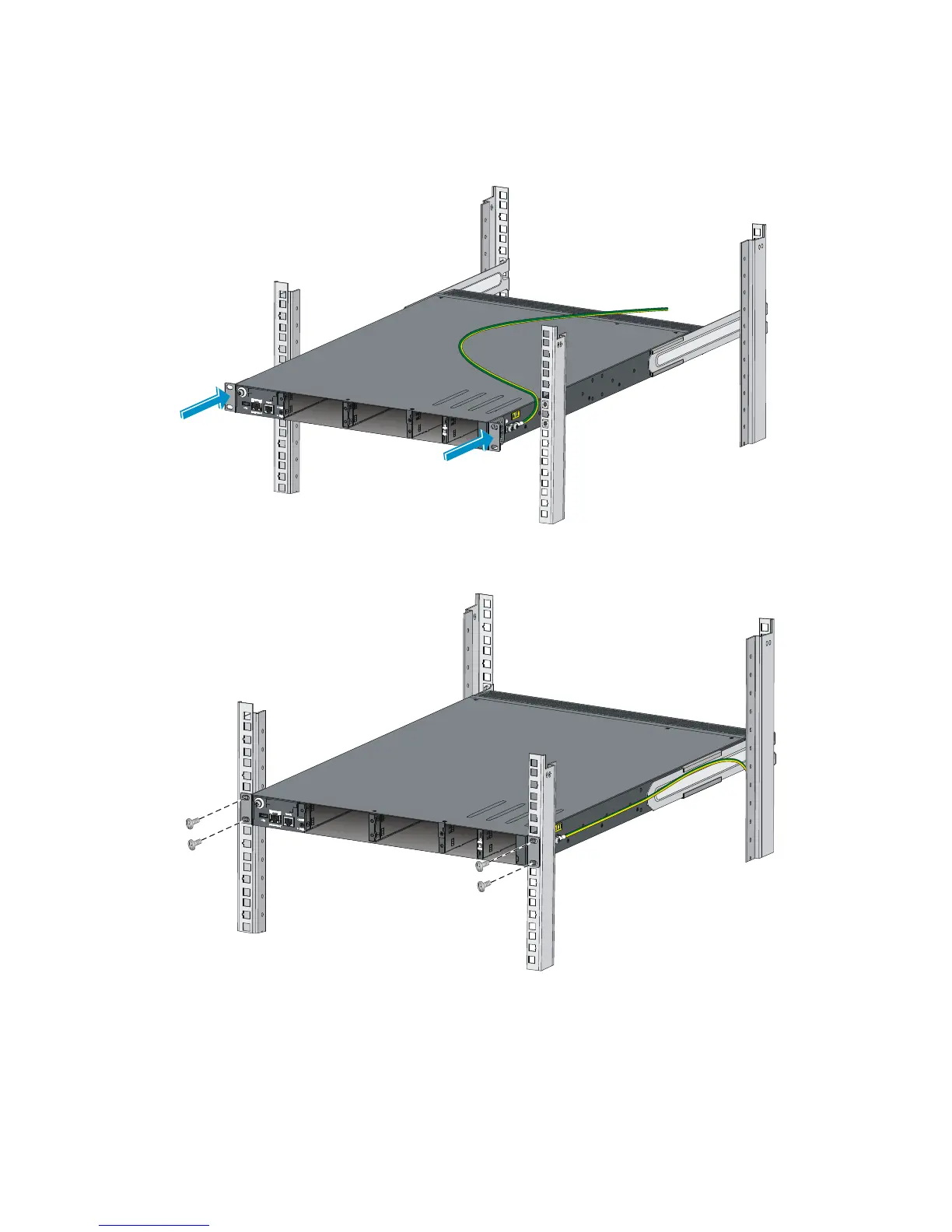

Figure 17 Mounting the switch in the rack (1)
Figure 18 Mounting the switch in the rack (2)
Rack-mounting a 5800/5820X switch except the
5800AF-48G/5820AF-24XG
This installation task requires two people. To mount the switch in the rack:
