16
1. Wear an ESD wrist strap and make sure it makes good skin contact and is correctly grounded.
2. Verify that the mounting brackets have been securely attached to the switch chassis.
3. Install cage nuts (user-supplied) in the mounting holes in the rack posts.
4. One person holds the switch chassis and aligns the mounting brackets with the mounting holes in
the rack posts, and the other person attaches the mounting brackets with screws (user-supplied) to
the rack.
5. Verify that the switch chassis is horizontal and tighten the screws.

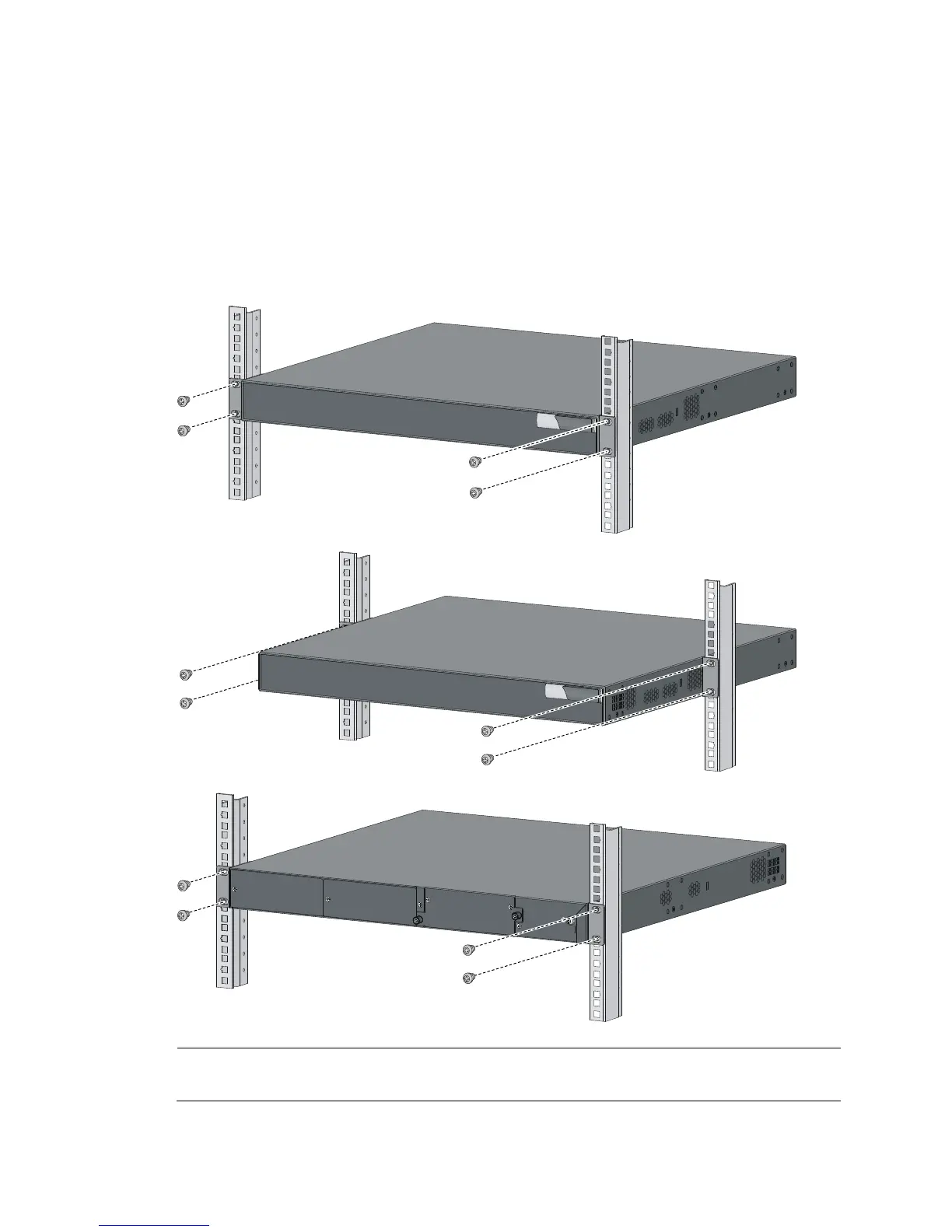

Figure 19 Mounting a 1U 5800 switch in a rack
NOTE:
The procedure for rack-mounting a 2U switch is the same as rack-mounting a 1U switch.
