74
NOTE:
The 5800-24G-SFP (1 slot) and 5800-24G-SFP TAA (1 slot) switches come with power supply slot 1
empty and power supply slot 2 covered by a filler panel. You can install one or two power supplies for the
switch as needed. In this figure, two PSR150-A AC power supplies are installed in the slots.
5820AF-24XG

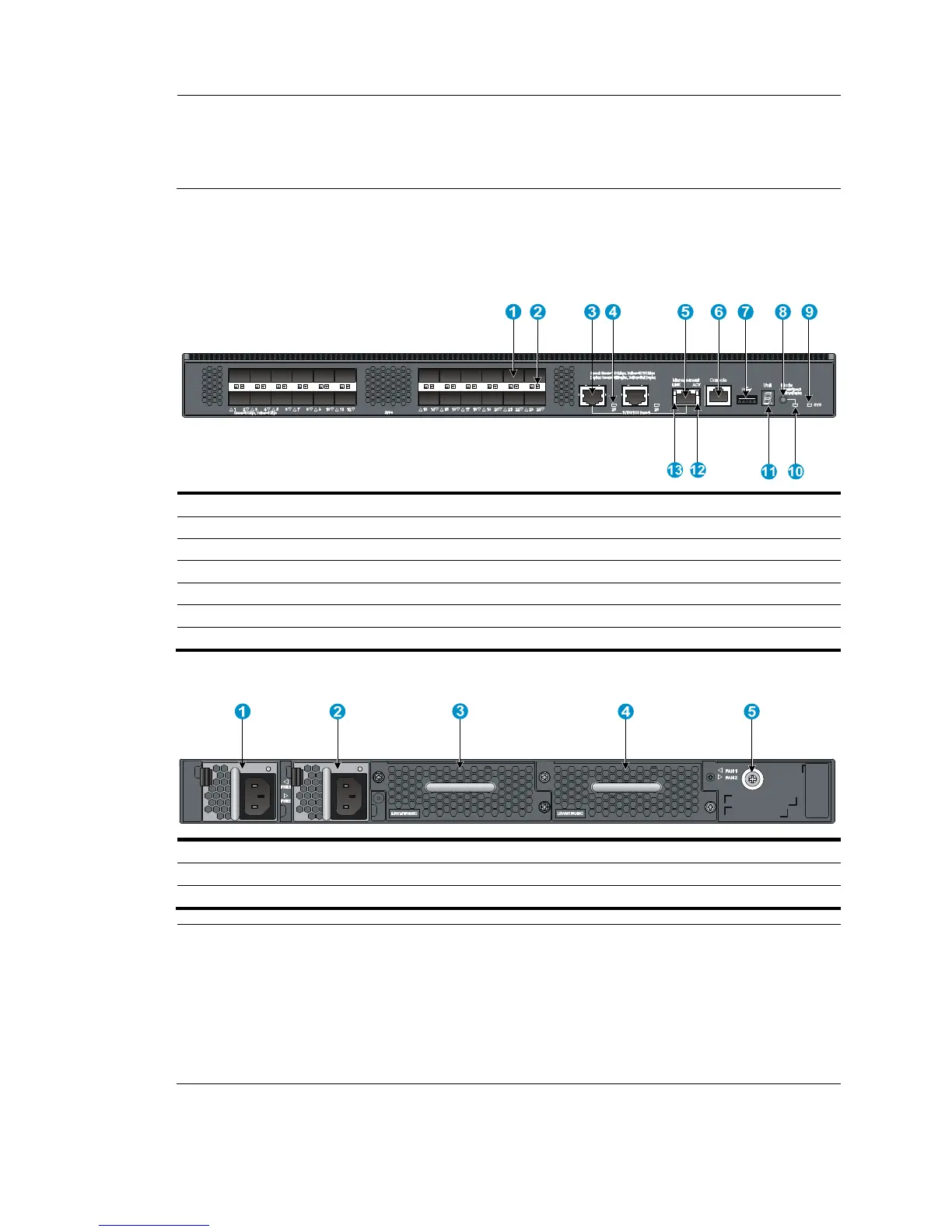

Figure 86 Front panel
(1) SFP+ port (2) SFP+ port LED
(3) 10/100/1000Base-T auto-sensin
(4) 10/100/1000Base-T Ethernet port LED
ement Ethernet port (6) Console port
(7) USB port (8) Port LED mode switching button
(9) System status LED (SYS) (10) Port mode LED
ment LED (12) ACT LED for the mana
(13) LINK LED for the management Ethernet port
Figure 87 Rear panel
(1) Power supply slot 1 (2) Power supply slot 2
(3) Fan tray slot 1
NOTE:
• The 5820AF-24XG switch comes with the power supply slots empty and the power filler modules as
accessories. You can install one or two power supplies for your switch as needed. In this figure, two
650W AC power supplies are installed.
• The switch also comes with the fan tray slots empty. You must install two fan trays for the 5820AF-24XG
for adequate heat dissipation, and their models must be the same. In this figure, two LSWM1FANSC fan
trays are installed.
