38
Do not use excessive force when you install the OAP card. If you cannot insert the OAP card
smoothly, examine the installation method for mistakes.

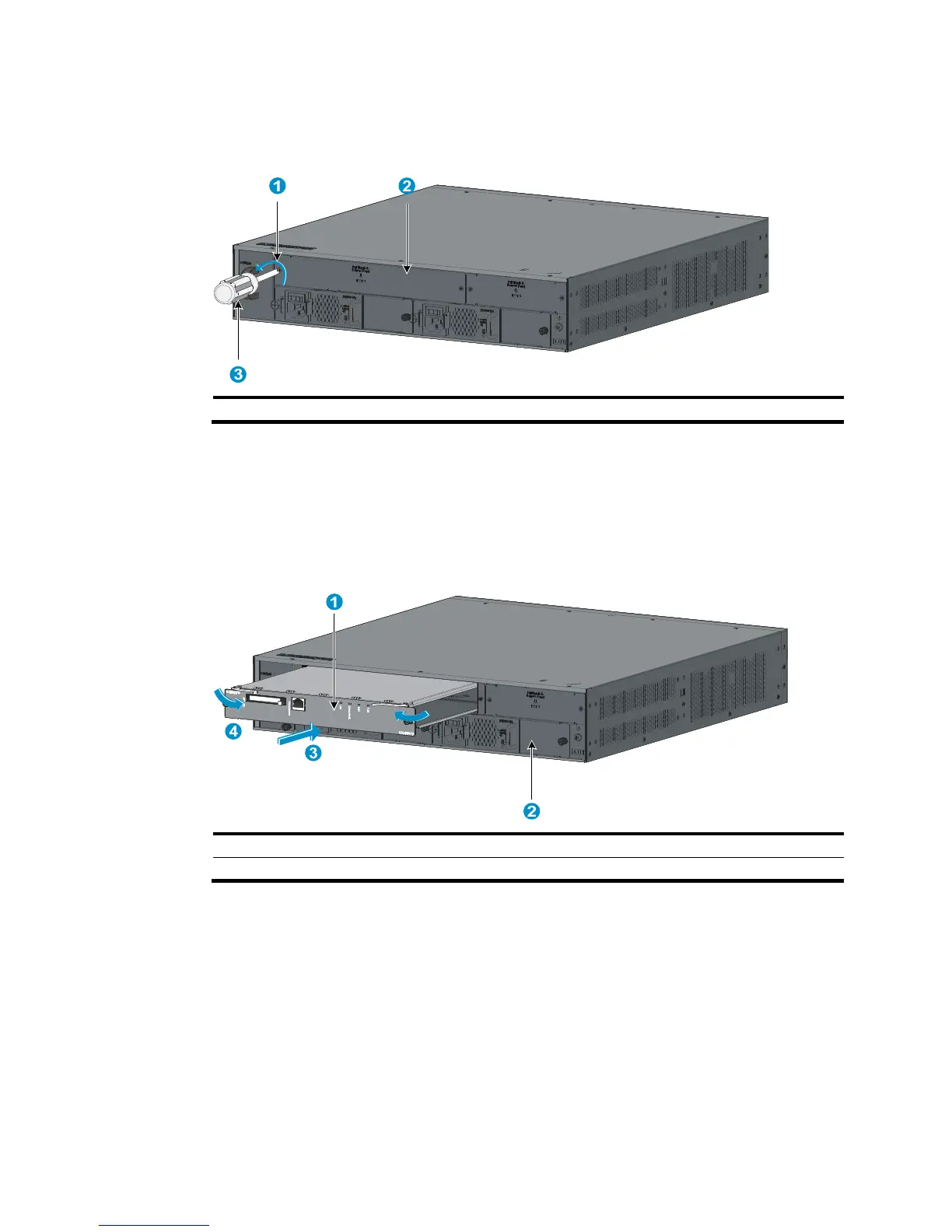

Figure 51 Removing the filler panel from the OAP card slot
(1) Rotate counterclockwise (2) Filler panel in the OAP card slot (3) Phillips screwdriver
3. Put away the removed filler panel for future use.
4. Unpack the OAP card and verify that this OAP card can be installed in the OAP card slot.
5. Hold the OAP card with the ejector levers on top, push the OAP card slowly along the guide rails
into the slot (see callout 3 in Figure 52), and push the ej
ector levers inward to lock the OAP card
in position (see callout 4 in Figure 52).
Figure 52 Installing an OAP card
(1) OAP card
(3) Push the OAP card (4) Push the ejector levers inward
6. Fasten the captive screws on the OAP card with the Phillips screwdriver to secure the OAP card in
the slot.
