To avoid any damage to the logo plate, always follow these instructions on opening and closing the logo
plate:
1. Insert your finger into the notch on the right side of the logo plate to open it. Do not try to open the
logo plate in any other ways.
2. The logo plate is attached to the chassis with a rubber strip on its left. Rotate the logo plate within
the elasticity of the rubber strip. To avoid the rubber strip falling off or being broken, do not pull or
rotate the logo plate with excessive force.
3. When closing the logo plate, insert the pin on the left of the logo plate into the fastening hole in the
front panel, rotate the logo plate inward until the tab on the right aligns with the fastening slot on
the front panel, and slightly press the logo plate until the tab clicks into the hole. If the tab is not fully
engaged in the fastening slot, make another try instead of pressing the logo plate with excessive
force.

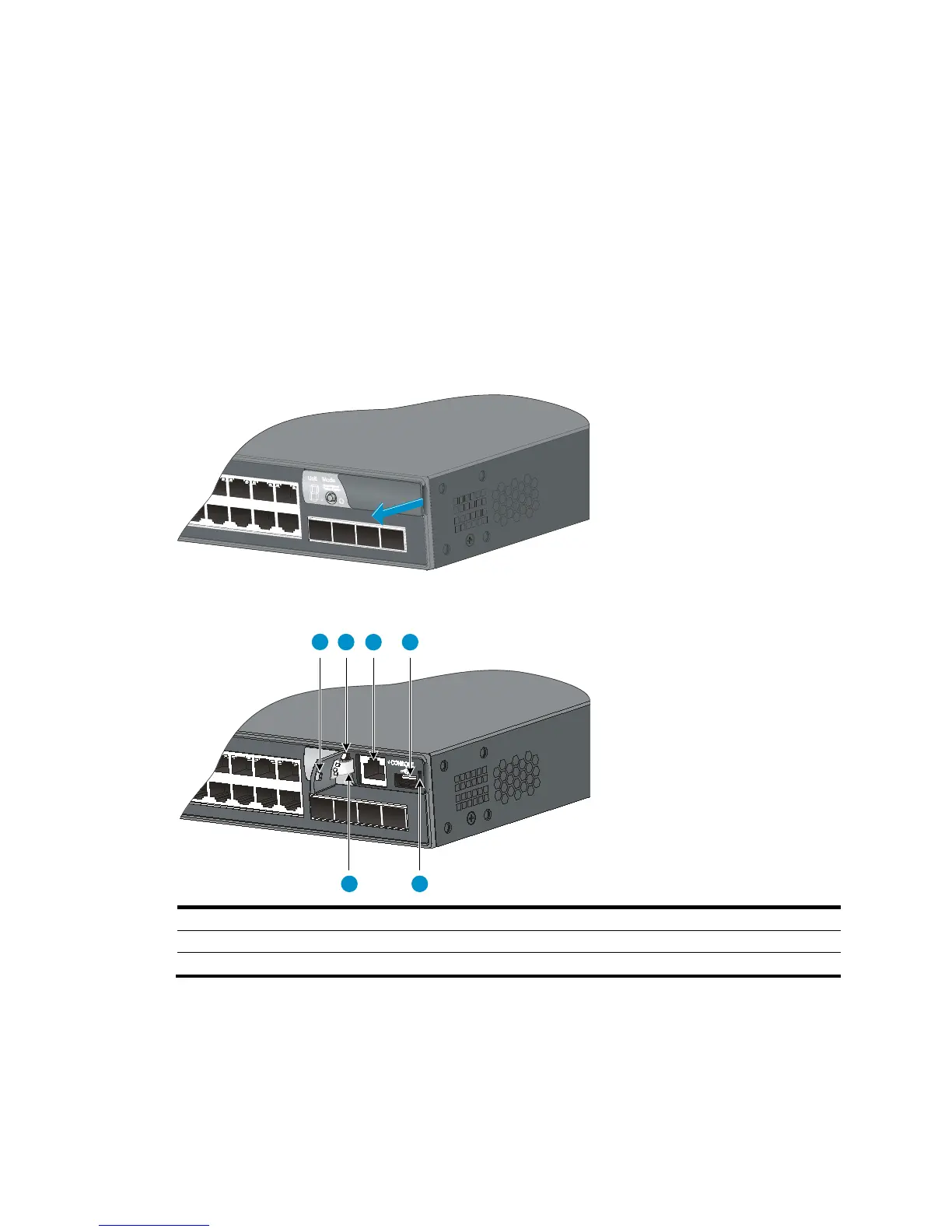

Figure 72 Opening the logo plate
Figure 73 Logo plate and ports under the logo plate
(1) Tab of the logo plate (2) Pin of the logo plate
(3) Console port (4) USB port
