hen you install a 96G model or 96G TAA model switch, skip the procedure for installing an
expansion interface card. The switch does not support expansion interface cards.
Confirming installation preparations
Before you install the switch, make sure:
• You have read "Preparing for installation" carefully and the installation site meets all the
requirements.
• A 19-inch rack is ready for use. For how to install a rack, see the rack installation guide.
Installing the switch in a 19-inch rack
Mounting bracket and cable management bracket kits
Table 5 Mounting bracket and cable management bracket kits
Switch models Mounting brackets
Cable management
brackets
Bracket view
48G model/48G
TAA model
One pair of 1U
mounting brackets
(supplied with the
switch)
N/A See Figure 2.
96G model/96G
TAA model
One pair of 2U
mounting brackets
(supplied with the
switch)
One pair (supplied with
the switch)
The mounting brackets and
cable management brackets
are secured together by
default (see Figure 3).

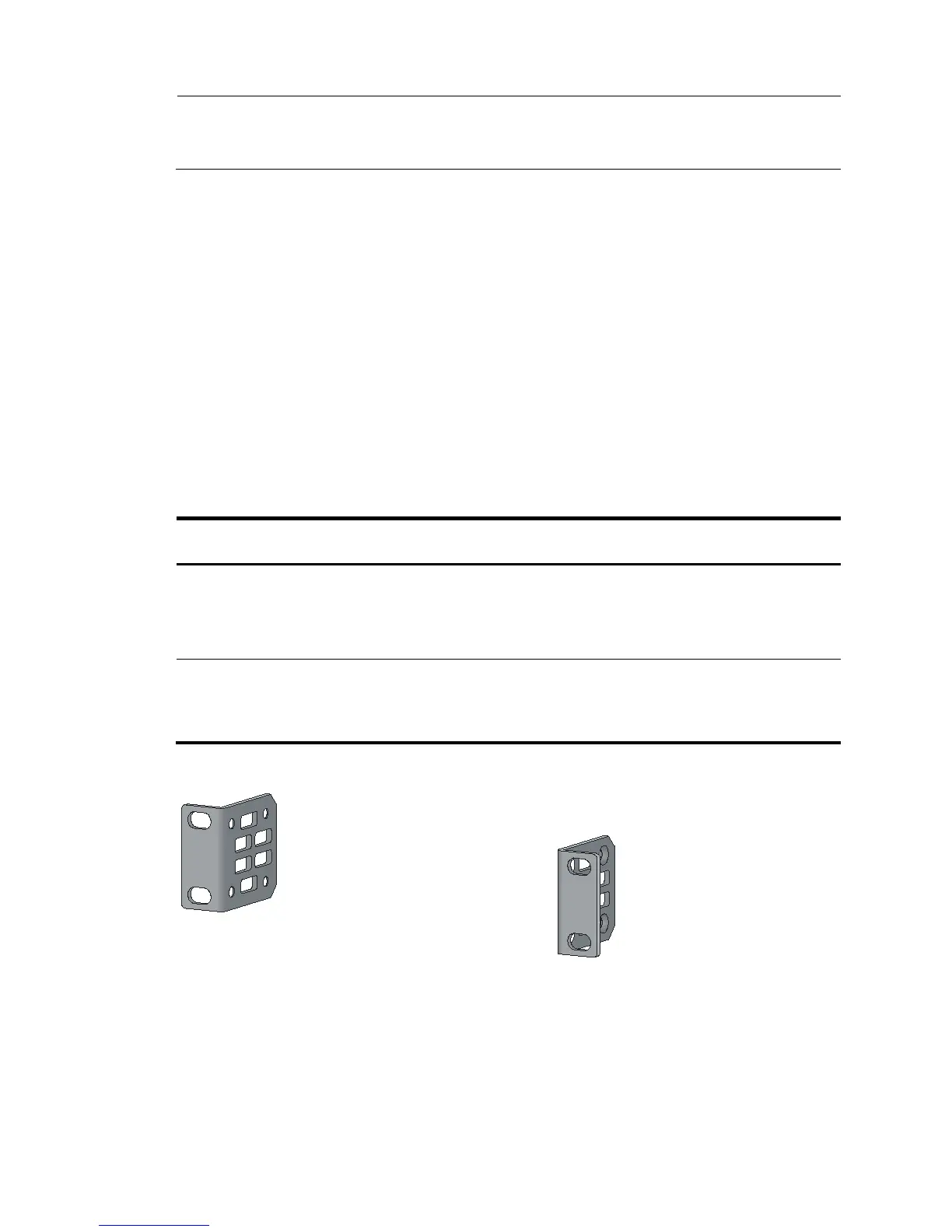

Figure 2 1U mounting bracket kit
