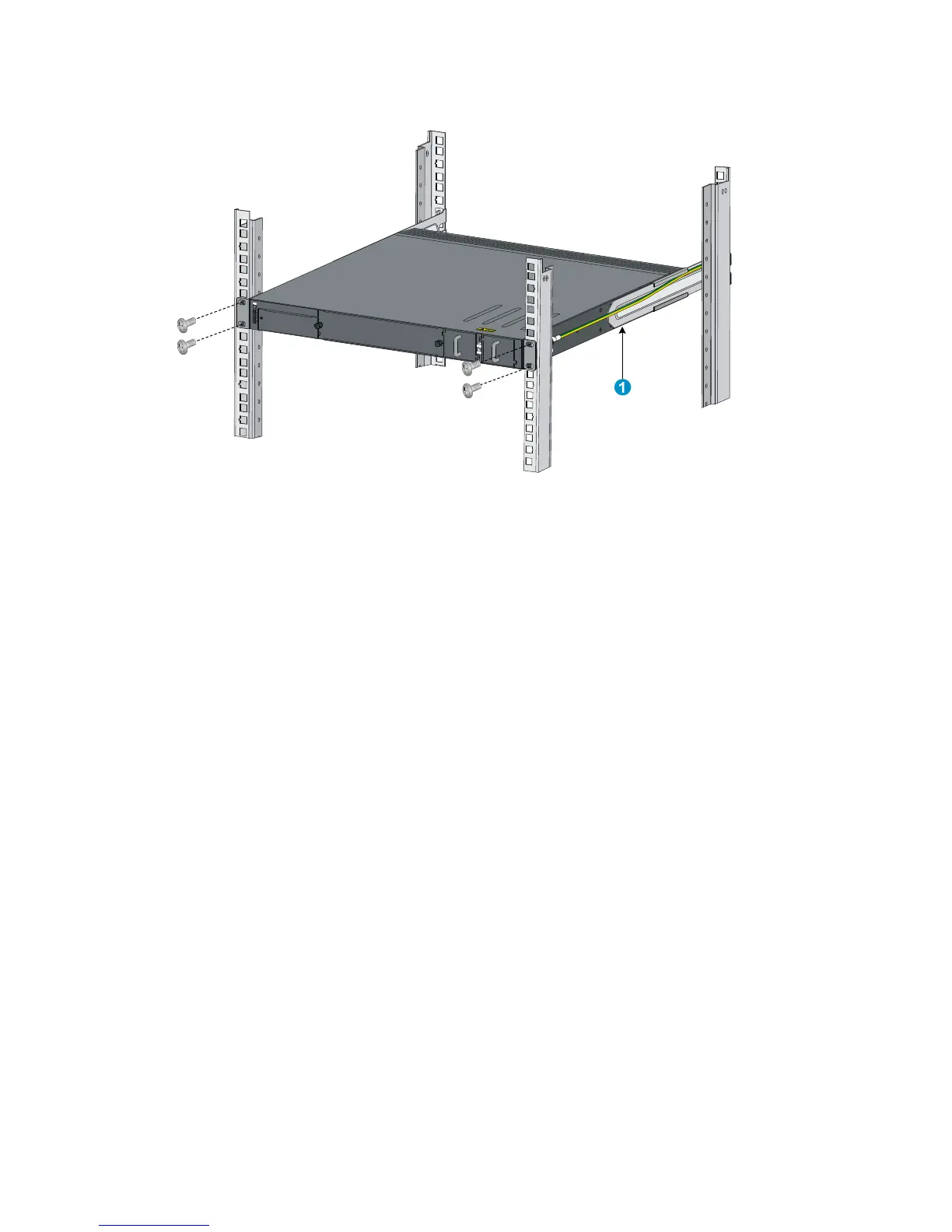

Figure 15 Mounting the switch in the rack (2)
Rack-mounting the 96G model/96G TAA model switch
To attach the slide rails to the rack:
1. Identify the rack attachment position for the slide rails.
2. Install cage nuts (user-supplied) in the mounting holes in the rack posts.
3. Align the screw holes in one slide rail with the cage nuts in the rack post on one side, and use
screws (user-supplied) to fix the slide rail to the rack, as shown in Figure 16.
4. Repeat the pr
eceding steps to attach the other slide rail to the rack post on the other side. Keep
the two slide rails at the same height so the slide rails can fix into the chassis rails.
