HP 5830 series Installation Guide

47
The switches support the power supplies and fan trays in Table 11.
Table 11 Power supplies and fan trays available for the switches
Product code HP descri
p
tion Alias
JC680A HP A58x0AF 650W AC Power Supply
650W AC power supply
(JC680A)
JC681A HP A58x0AF 650W DC Power Supply
650W DC power supply
(JC681A)
JC692A
HP A5830AF-48G back (power side) to
front (port side) airflow Fan Tray
Back-to-front airflow fan tray
(JC692A)
JC693A
HP A5830AF-48G front (port side) to back
(power side) airflow Fan Tray
Front-to-back airflow fan tray
(JC693A)
JC695A
HP A5830AF-96G back (power side) to
front (port side) airflow Fan Tray
Back-to-front airflow fan tray
(JC695A)
JC696A
HP A5830AF-96G front (port side) to back
(power side) airflow Fan Tray
Front-to-back airflow fan tray
(JC696A)
Panel views
This section describes the chassis panel views of the switches.
48G model/48G TAA model panel views

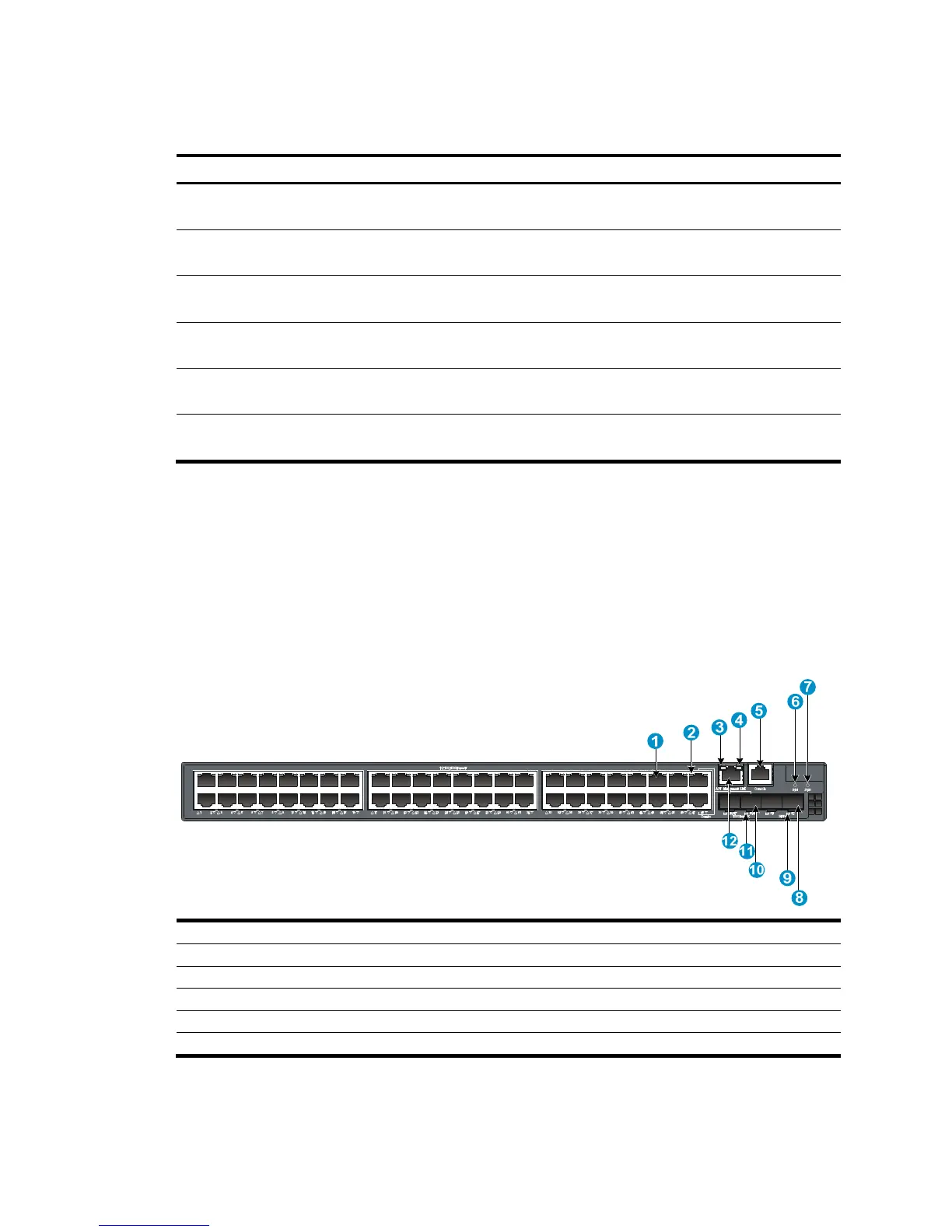

Figure 46 Front panel
(1) 10/100/1000Base-T auto-sensing Ethernet port (2) 10/100/1000Base-T Ethernet port LED
(3)
A
CT LED for the mana
g
ement Ethernet port (4) LINK LED for the mana
g
ement Ethernet port
(5) Console port (6) Interface card status LED (Slot)
(7) System status LED (SYS) (8) SFP+ port
(9) SFP+ port LED (10) 1000Base-X SFP port
(11) SFP port LED (12) Mana
g
ement Ethernet port
