51
Cooling system of the 96G model/96G TAA model
• When a back-to-front airflow fan tray (JC695A) is used, ambient air flows in through the air
vents in the fan tray panel and the power supply panels, circulates through the chassis and the
power supplies, and exhausts at the port side, as shown in Figure 54.
• W
hen a front-to-back airflow fan tray (JC696A) is used, ambient air flows in through the air
vents in the port-side panel and the power supply panels, circulates through the chassis and the
power supplies, and exhausts through the air vents in the fan tray panel, as shown in Figure 55.

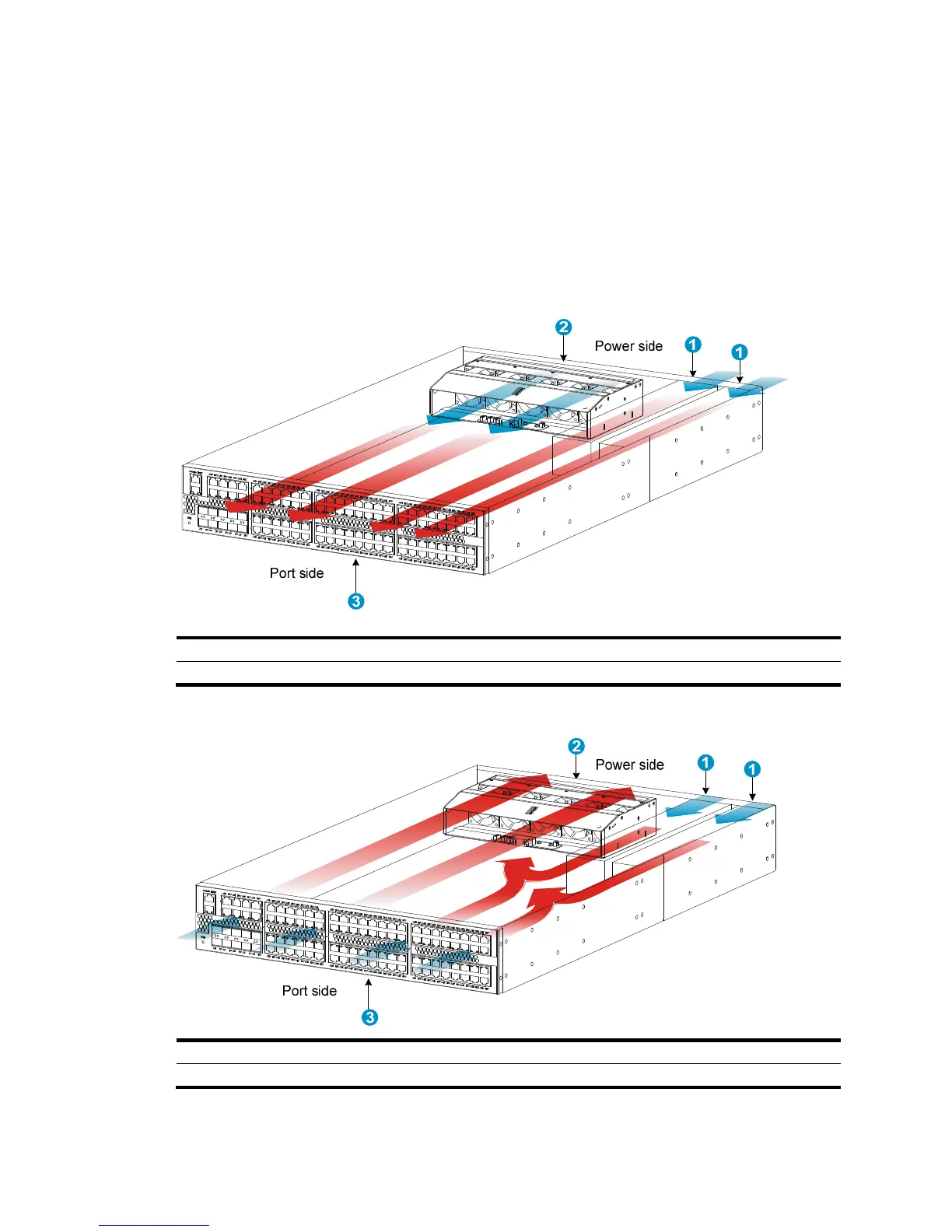

Figure 54 Airflow through the switch
chassis with the back-to-front airflow fan tray (JC695A)
(1) Power supply air vents (2) Fan tray air vents
(3) Port side air vents
Figure 55 Airflow through the switch chassis with the front-to-back airflow fan tray (JC696A)
(1) Power supply air vents (2) Fan tray air vents
(3) Port-side air vents
