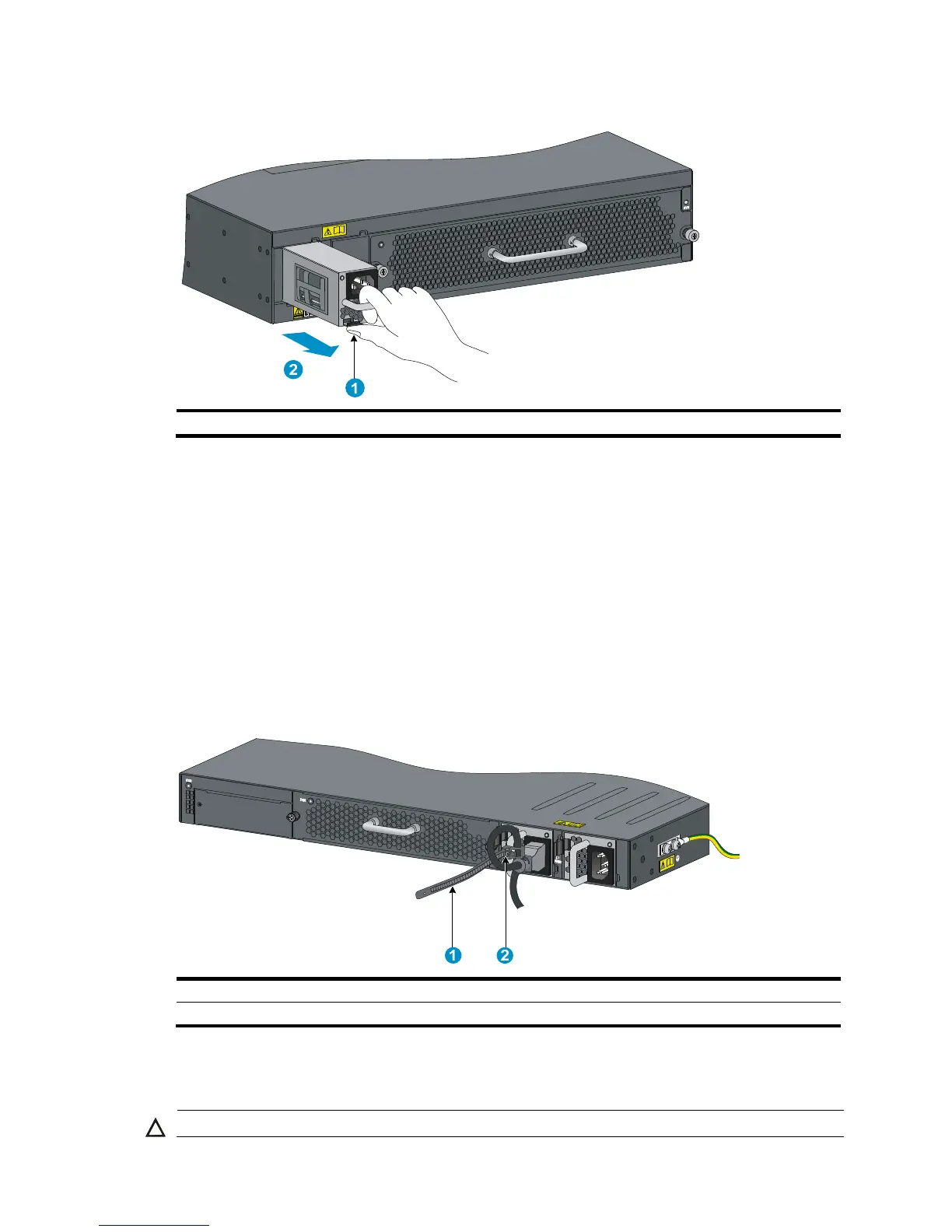

Figure 27 Removing the power supply (for the 96G model/96G TAA model)
(1) Pivot the latch up with your thumb (2) Pull the power supply out
Connecting the power cord
Connecting the 650W AC power supply (JC680A)
1. Insert the female connector of the AC power cord supplied with the power supply into the AC-
input power receptacle of the power supply.
2. Use a cable tie to secure the power cord to the handle of the power supply, as shown in Figure
28.
3. Connec
t the other end of the power cord to an AC power outlet.
Figure 28 Connecting the 650W AC power supply (JC680A)
(1) Cable tie
(2) Ti
hten the cable tie to secure the power cord to the handle of the power supply
Connecting the 650W DC power supply (JC681A)
