2. Verify that the mounting brackets and chassis rails have been securely fixed on the two sides of
the switch.
3. Verify that the slide rails have been correctly attached to the rack posts.
4. Install cage nuts (user-supplied) to the front rack posts and make sure they are at the same level
as the slide rails.
5. Supporting the bottom of the switch, align the chassis rails with the slide rails on the rack posts,
as shown in Figure 14. Wo
rk with another person to slide the chassis rails along the slide rails
until the mounting brackets flush with the rack posts.
6. Use appropriate screws to fix the mounting brackets to the rack, as shown in Figure 15. Make
sur
e the front ends of the slide rails reach out of the chassis rails, as shown in callout 1
in Figure 15.

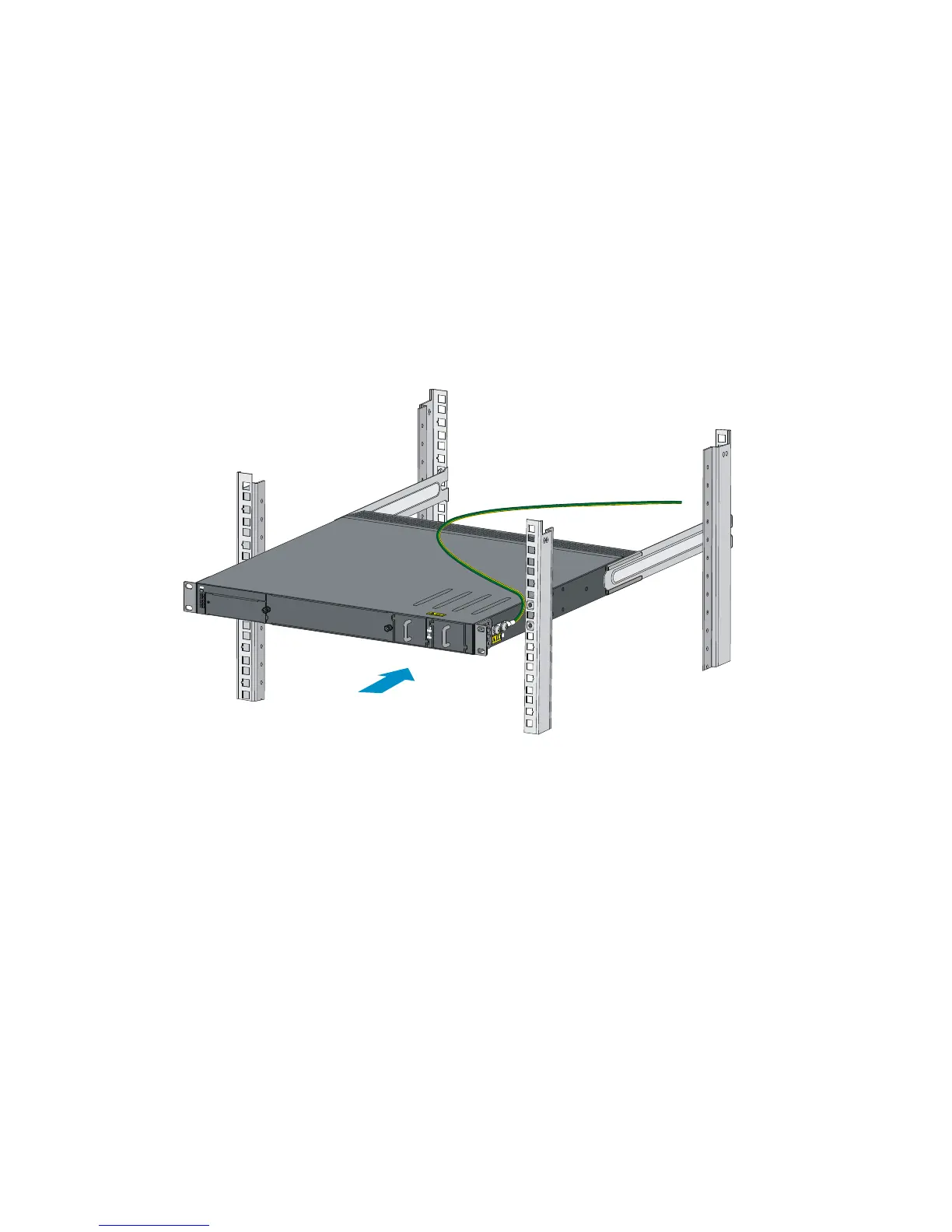

Figure 14 Mounting the
switch in the rack (1)
