30

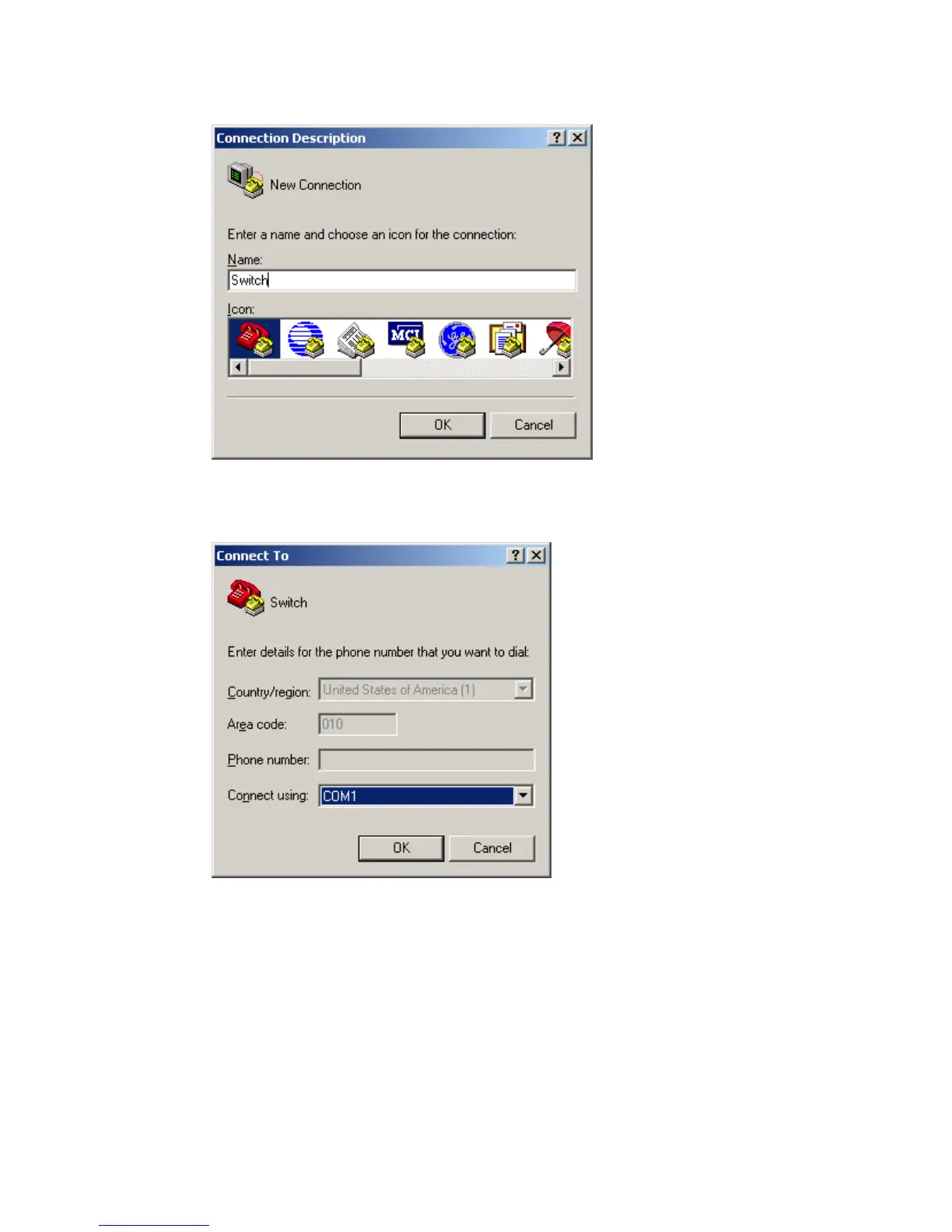

Figure 35
Connection description
3.
Select the serial port to be used from the
Connect usin
g
list, and click
OK
.
Figure 36
Setting the serial port used by the HyperTerminal connection
4.
Set
Bits per second
to
9600
,
Data bits
to
8
,
Parity
to
None
,
Stop bits
to
1
, and
Flow control
to
None
, and click
OK
.
33
35
